Series 0i - Model A Connection manual (Function) Page 310

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

294

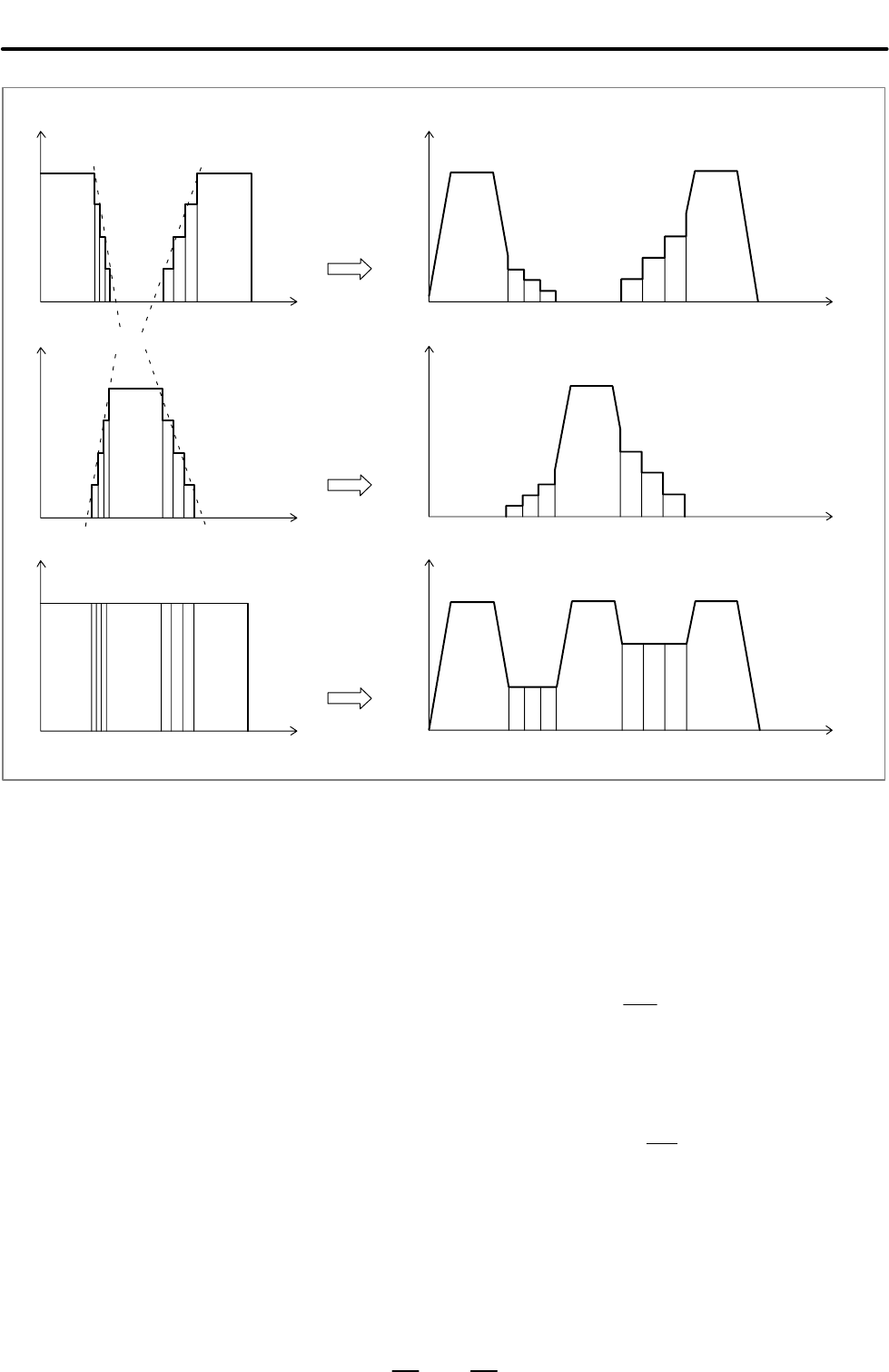

N1 N2 N3N1 N2 N3

This function can suppress acceleration in an arc machining block to an

allowable level by clamping the feedrate. Based on the arc radius R and

the maximum allowable feedrate V for that arc radius (which are set in

parameters), this function calculates the maximum allowable feedrate v

for an arc with a programmed radius r, as shown below. If the specified

feedrate exceeds feedrate V, the feedrate can be clamped to feedrate v

automatically.

Maximum allowable acceleration =

R : Arc radius, V : Feedrate for arc radius R

Then, the maximum allowable feedrate v for an arc with radius r is

obtained from the following expression:

v + rńR

As the specified arc radius becomes smaller, the maximum allowable

feedrate v falls. To prevent the maximum allowable feedrate from

becoming too small, the lower limit for feedrate clamping based on the

arc radius can be set in parameter 1732. If the maximum allowable

feedrate is less than the value set in parameter 1732, the parameter–set

value can be used as the maximum allowable feedrate v.

Feedrate clamping by

arc radius
