B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

323

NOTE

If the error detect signal is on, a cutting block is not executed

until the acceleration/deceleration of the previous cutting

block has been completed.

This function alone cannot prevent corner rounding due to

delay caused by the servo motor, however.

To prevent corner rounding due to delay caused by the

servo motor, use the in–position check function together

with this function.

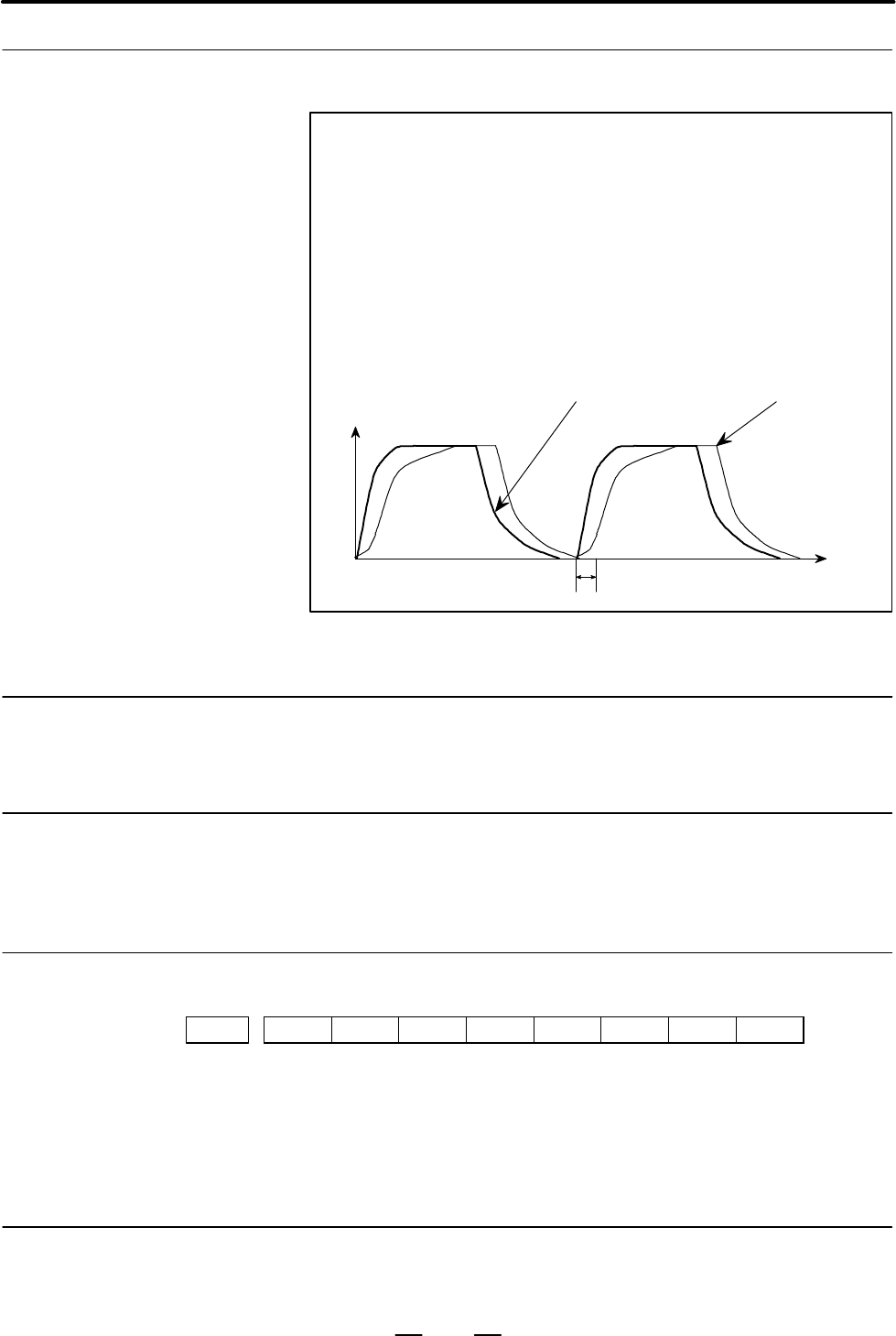

After servo

motor delay

Time

Range of in–position check

After acceleration/

deceleration

Feedrate

Feed–forward control can be performed even during rapid traverse. In

this case, the servo position error is reduced, thus reducing the time

required for positioning to within the specified range.

1800

#6 #5 #4 #3

FFR

#2 #1 #0

[Data type] Bit

FFR Feed–forward control is enabled for

0 : Cutting feed only

1 : Cutting feed and rapid traverse

For details of this function, refer to the “FANUC SERVO MOTOR a

series Maintenance Manual (B–65165E).”

Note

7.2.6

Feed Forward in Rapid

Traverse

General

Parameter

Reference item
