11. PROGRAM COMMAND

B–63503EN–1/01

588

(8)When *BECLP is turned to “0”, the CNC then turns BCLP to “0”,

informing it received the *BECLP signal. (Type B -- When BCLP

turns to “0”, the B axis position control servo is turned off.)

(9)On the PMC side, when BCLP changes to “0”, *BECLP is turned to

“1”. This completes the sequence.

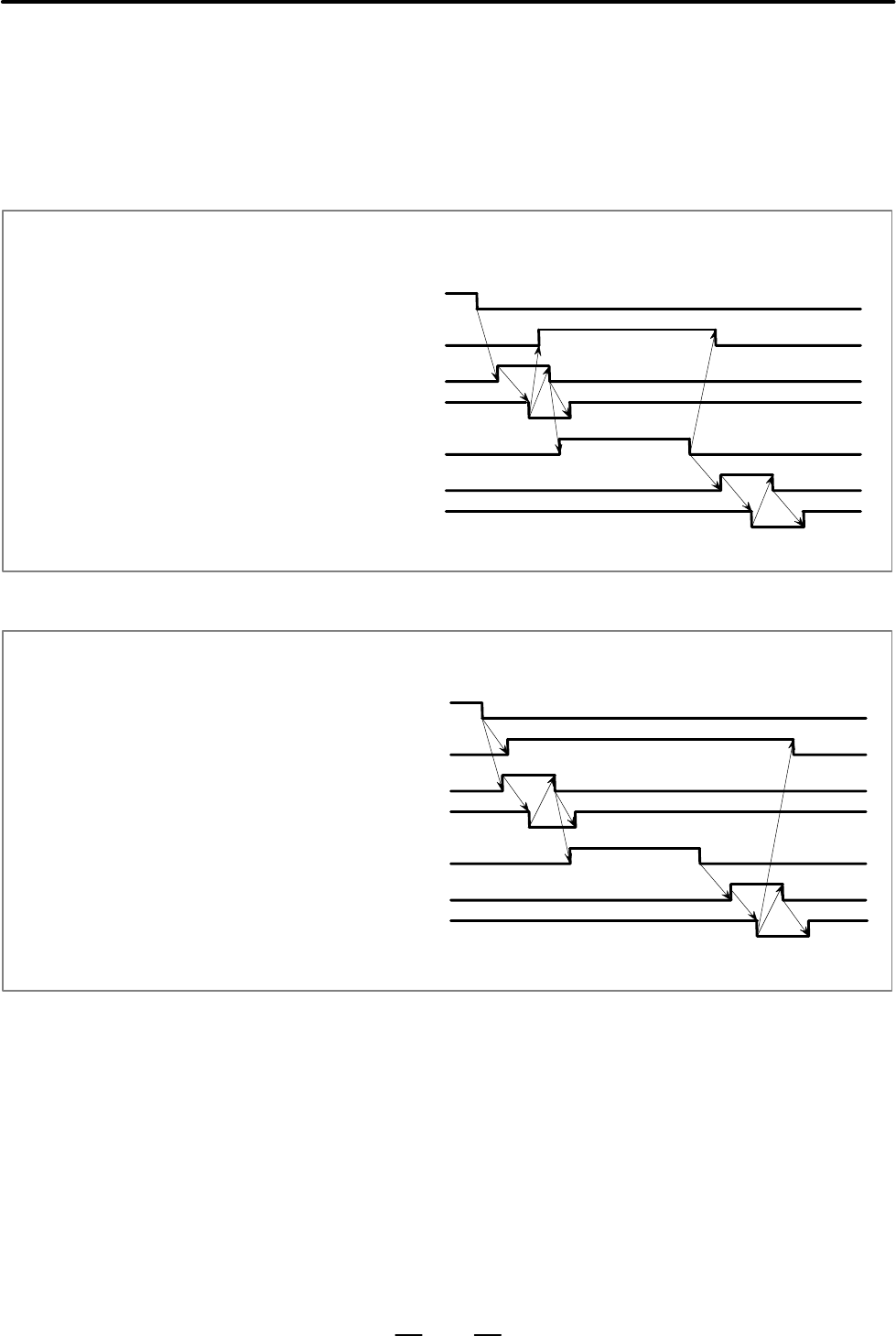

The time charts for these operations are shown in the figures below.

B command (independent) Bbbbb

B axis servo on for position control

B axis unclamp signal BUCLP<F061#0>

B axis unclamp completion signal *BEUCL<G038#6>

B axis rotation

B axis clamp signal BCLP<F061#1>

B axis clamp completion signal *BECLP<G038#7>

(1) (2) (3) (4) (5) (6) (7) (8) (9)

Fig. 11.9 (a) Time chart for positioning index table (type A)

B command (independent) Bbbbb

B axis servo on for position control

B axis unclamp signal BUCLP<F001#0>

B axis unclamp completion signal *BEUCP<G038#6>

B axis rotation

B axis clamp signal BCLP<F061#1>

B axis clamp completion signal *BECLP<G038#7>

(1) (2) (3) (4) (5) (6) (7) (8) (9)

Fig. 11.9 (b) Time chart for positioning index table (type B)
