11. PROGRAM COMMAND

597

Each axis can be scaled by different magnifications. Also when a negative

magnification is specified, a mirror image is applied. First of all, set a

parameter XSC (No. 5400#6) which validates each axis scaling (mirror

image).

Then, set parameter SCLx (No. 5401#0) to enable scaling along each axis.

Least input increment of scaling magnification of each axis (I, J, K) is

0.001 or 0.00001( set parameter SCR (No. 5400#7)).

Magnification is set to parameter 5421 within the range ±0.00001 to

±9.99999 or ±0.001 to ±9.999.

If a negative value is set, mirror image is effected.

If magnification I, J or K is not commanded, a magnification value set to

parameter (No. 5421) is effective. However, a value other than 0 must be

set to the parameter.

G51_X_Y_Z_I_J_K_; Scaling start

X_Y_Z_: Absolute command for

center coordinate value

of scaling

I_J_K_: Scaling magnification for

X axis, Y axis and Z axis

respectively

G50 Scaling cancel

Format Meaning of command

Scaling

is effective.

(Scaling

mode)

SCALING UP OR DOWN ALONG EACH AXES AT A DIFFERENT

RATE OF MAGNIFICATION (MIRROR IMAGE)

Y axis

X axis

a/b : Scaling magnification of X axis

c/d : Scaling magnification of Y axis

0 : Scaling center

Programmed figure

Scaled figure

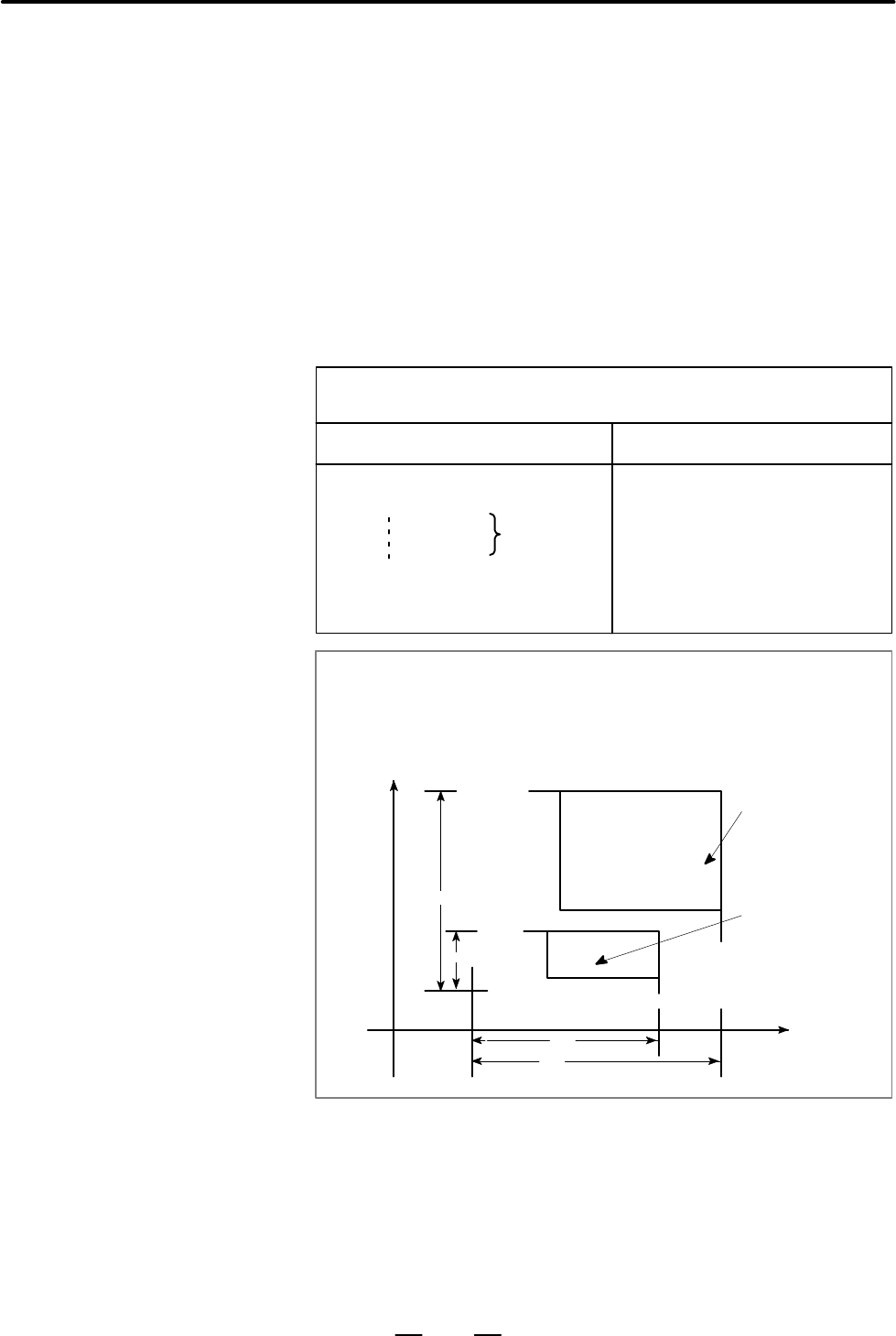

Fig. 11.10 (b) Scaling of each axis

D Scaling of each axis,

programmable mirror

image (negative

magnification)
