11. PROGRAM COMMAND

B–63503EN–1/01

578

Upon completion of positioning in each block in the program, an external

operation function signal can be output to allow the machine to perform

specific operation.

G81 IP_ ; (The IP_ is axis move command )

Every time positioning for the IP_ move command is completed, the CNC

sends an external operation signal to the machine. An external operation

signal is output for each positioning operation until canceled by G80 or

a group 01 G code.

No external operation signals are output during execution of a block that

contains neither X nor Y.

1 Once positioning for a move command has been completed, the CNC

sets the external operation signal EF to 1.

2 When the EF signal is set to 1, the PMC executes drilling or another

operation. Once the operation has been completed, the PMC sets

completion signal FIN to 1.

3 The CNC resets the EF signal to 0 upon the elapse of the time (TFIN)

specified in parameter No. 3011 after the FIN signal is set to 1.

4 When the EF signal is set to 0, the PMC resets the FIN signal to 0.

5 The CNC starts executing the next block.

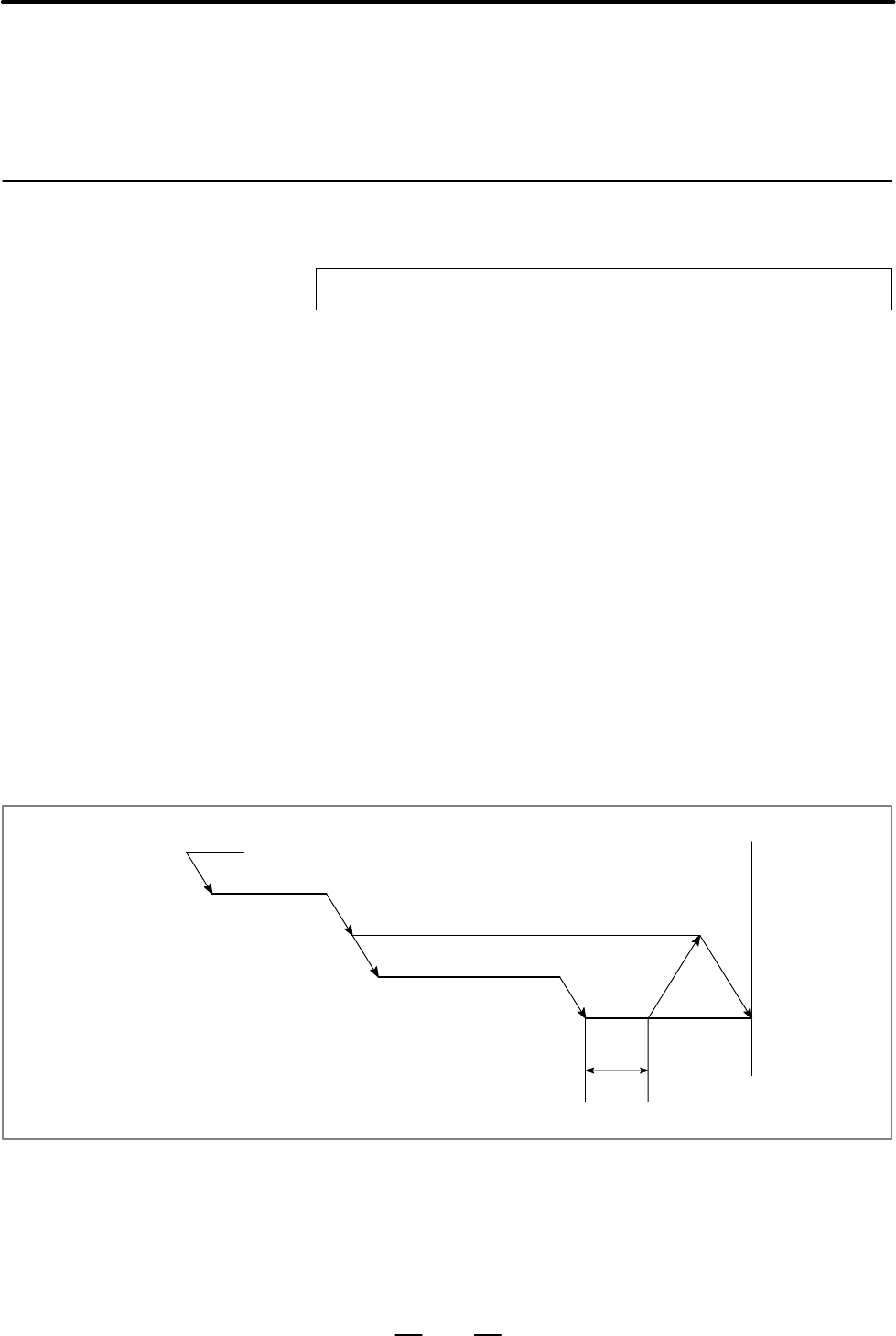

The timing diagram is shown below:

G81 command

Positioning

Machine operation

FIN

Next block

TFIN

Fig. 11.7 Timing diagram of basic procedure

11.7

EXTERNAL MOTION

FUNCTION

(M SERIES)

General

Basic procedure
