Series 0i - Model A Connection manual (Function) Page 248

Connection manual (Function)

Page of 874

/ 874

6. INTERPOLATION FUNCTION

B–63503EN–1/01

232

Polygonal turning means machining a polygonal figure by rotating the

workpiece and tool at a certain ratio.

Workpiece

Tool

Workpiece

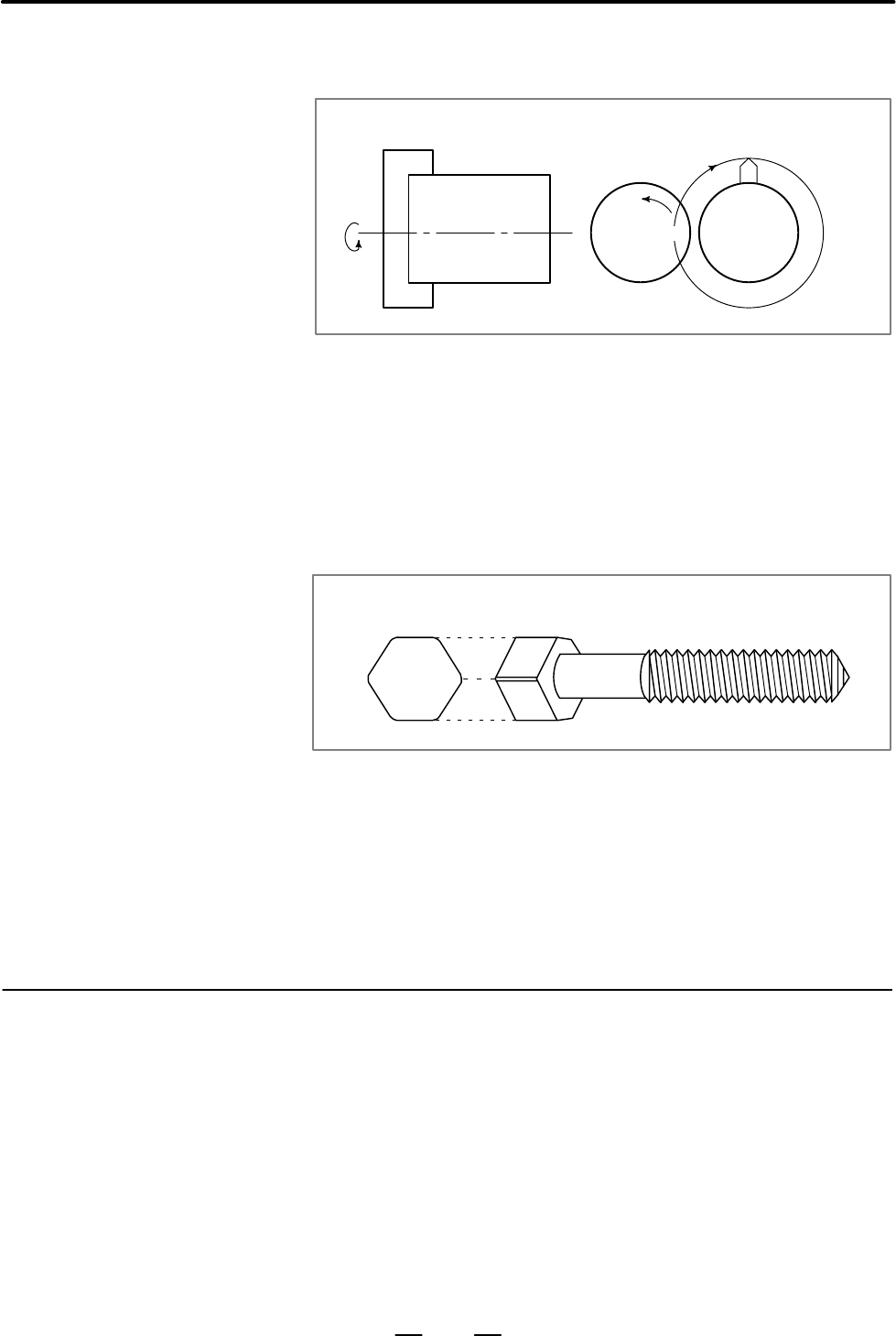

Fig. 6.9 (a) Polygonal turning

By changing conditions which are rotation ratio of workpiece and tool and

number of cutters,the machining figure can be changed to a square or

hexagon. The machining time can be reduced as compared with polygonal

figure machining using C and X axes of the polar coordinate. The

machined figure however, is not exactly polygonal. Generally, polygonal

turning is used for the heads of square and/or hexagon bolts or hexagon

nuts.

Fig. 6.9 (b) Hexagon bolt

This function controls the workpiece (spindle) and tool (rotation tool

axis) so that the relationship between the spindle speed and tool speed is

maintained at a constant ratio specified in a command given to the CNC.

(For the principle of polygonal turning, refer to Section 20.1, Part II of the

“Operator’s Manual (For Lathe).”)

One of the axes (servo axes) controlled by the CNC is assigned as a tool

rotation axis. Either serial spindle or analog spindle can be used as a

workpiece axis (spindle).

Polygonal turning using a servo axis is detailed in the operator’s manual

(for lathe).

This section focuses on supplementary information and examples for the

connection.

A position coder must be mounted on the spindle. However, polygonal

turning requires no additional changes to the spindle connection (See

Section 9.3.).

6.9

POLYGONAL

TURNING

(T SERIES)

Expranations

D Spindle connection
