Series 0i - Model A Connection manual (Function) Page 111

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

2. PREPARATIONS FOR OPERATION

NOTE

7 When the JOG or TEACH IN JOG mode is selected during

RMT, MEM or MDI mode operation, operation stops, the

STL signal turns to “0”, the SPL signal simultaneously turns

to “1”, and the CNC enters the JOG or TEACH IN JOG

mode. Manual feed by feed axis direction select signal is

possible under this state. Operation can be restarted by

returning to the original state, as described for

HANDLE/STEP or TEACH IN HANDLE mode (Fig. 2.6 (d)).

When the mode is switched to the JOG or TEACH IN JOG

mode during manual handle feed or step feed operation, the

CNC ignores the manual handle feed or step feed command

and manual jog feed becomes effective. If a feed axis

direction select signal turns to “1” before the JOG or TEACH

IN JOG mode is selected, that signal is ignored. The feed

axis select signal is selected by turning the necessary feed

axis direction signal to “1” after turning all the feed axis

direction select signals to “0” (Fig. 2.6 (e)).

It is possible to perform handle feed in TEACH IN JOG mode

by parameter THD no.7100#1. For details, refer to item (2),

(4).

STL

SPL

MEM/MDI mode

Mode select signal state

HANDLE/INC or

TEACH IN JOG

mode

Operation in the

MEM mode or MDI

mode

Cycle start signal

Jog feed

enabled

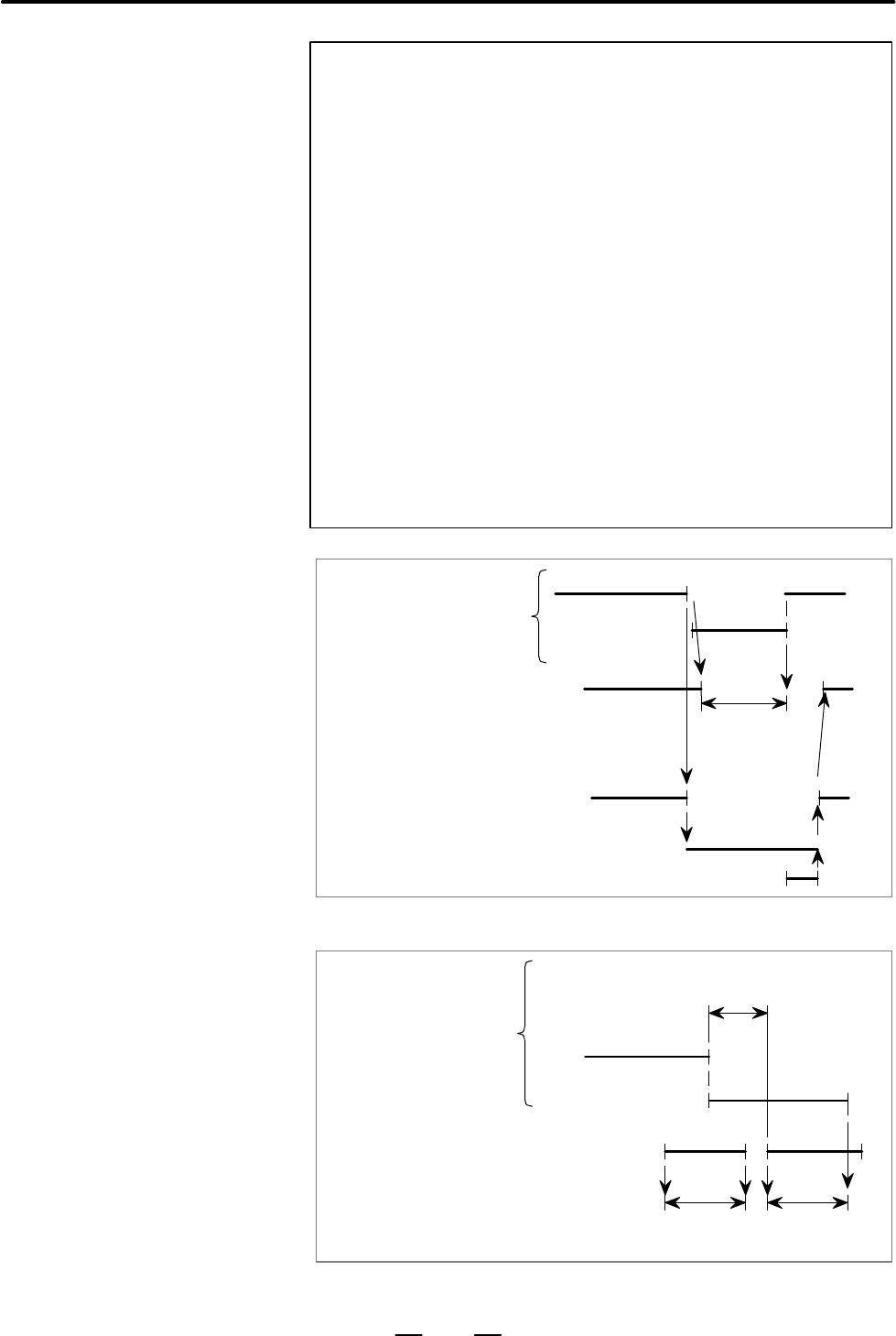

Fig. 2.6 (d)

MEM/MDI/HADLE/

INC mode/TEACH

IN HANDLE mode

100ms or more

Mode select signal state

Jog or TEACH

IN JOG

Feed axis

direction select

signal

Jog feed

disable

Jog feed enable

Fig. 2.6 (e)
