9. SPINDLE SPEED FUNCTION

436

The PMC-based polarity (rotation direction) control signals SGN and

SSIN <G033#5,#6> will function for any spindle selected by SWS1 to

SWS2.

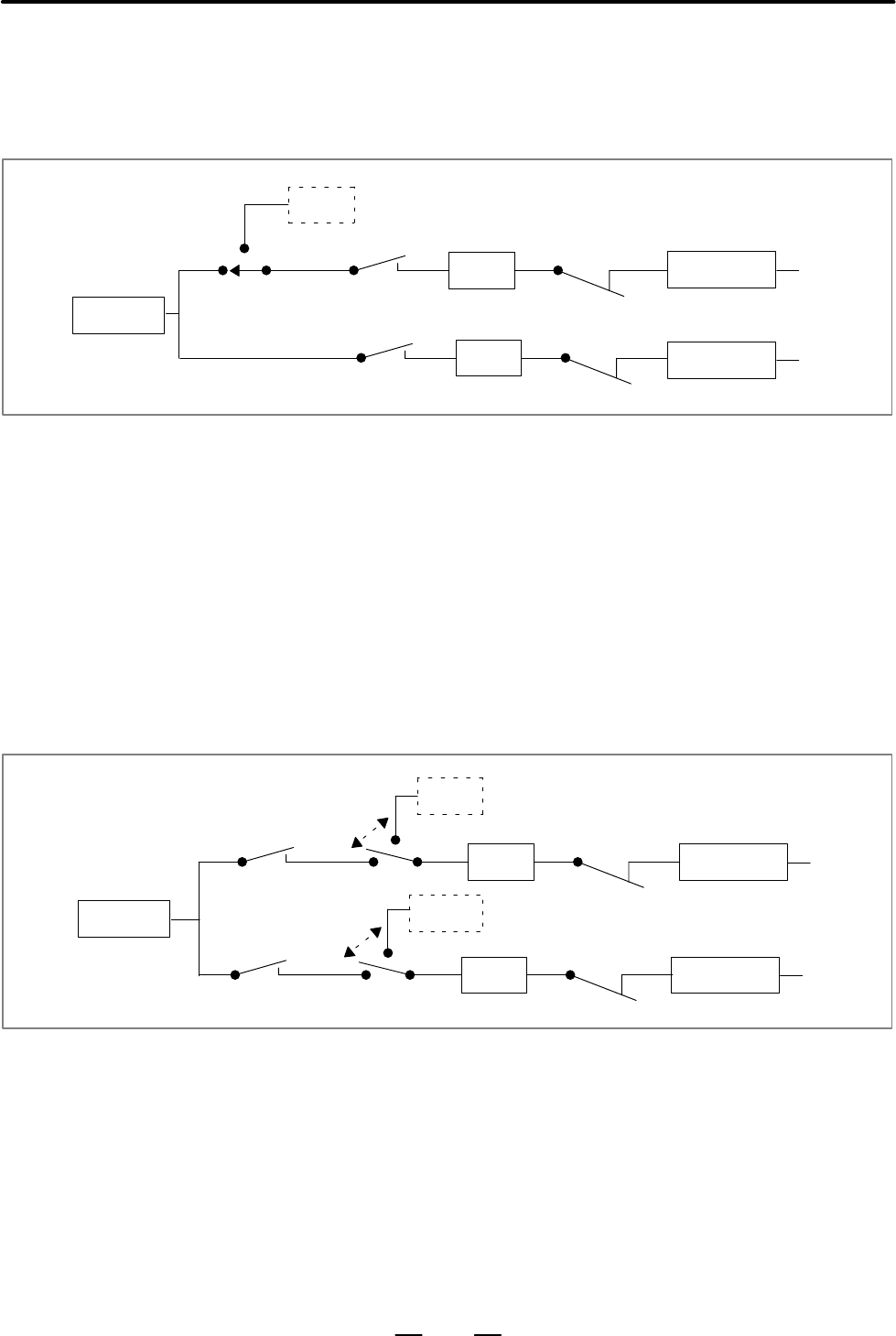

The concept of Type A multi-spindle control is outlined below.

S command

Hold 1

Hold 2

First spindle

SIND

SWS 1

SWS 2

* SSTP 1

* SSTP 2

Second spindle

Select Type B control by setting parameter MSI No. 3709#2 to “1”.

Each spindle has its own SIND, SSIN and SGN signals.

Each signal functions regardless of selection state of the spindle selection

signals (SWS1 to SWS2).

When either the spindle selection signal or the SIND signal for the first

or second spindle is set to “1”, the polarity control signals SSIN, SGN will

function. The first spindle is controlled by the SGN and SSIN signals; the

second and third spindles are controlled by SGN2 <G035#5>, and SSIN2

<G035#6>, respectively.

The concept of Type B multi-spindle control outlined below.

First spindle

S command

Hold 1

Hold 2

SIND

* SSTP 1

* SSTP 2

SWS 1

SWS 2

SIND2

Second spindle

In multi-spindle control, the first spindle is the first serial spindle, the

second spindle is the second serial spindle.

Multi-spindle control

(TYPE-B)

Spindles to be controlled
