Series 0i - Model A Connection manual (Function) Page 295

Connection manual (Function)
B–63503EN–1/01
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
279
Feedrate Feedrate
Time
Type B
Type A
Time
F3
F2
F1
N1 N2
F3
F2
F1
N1 N2
Specified feedrate
Feedrate after accelera-
tion/deceleration before
interpolation is applied
Specified feedrate
Feedrate after accelera-
tion/deceleration before
interpolation is applied

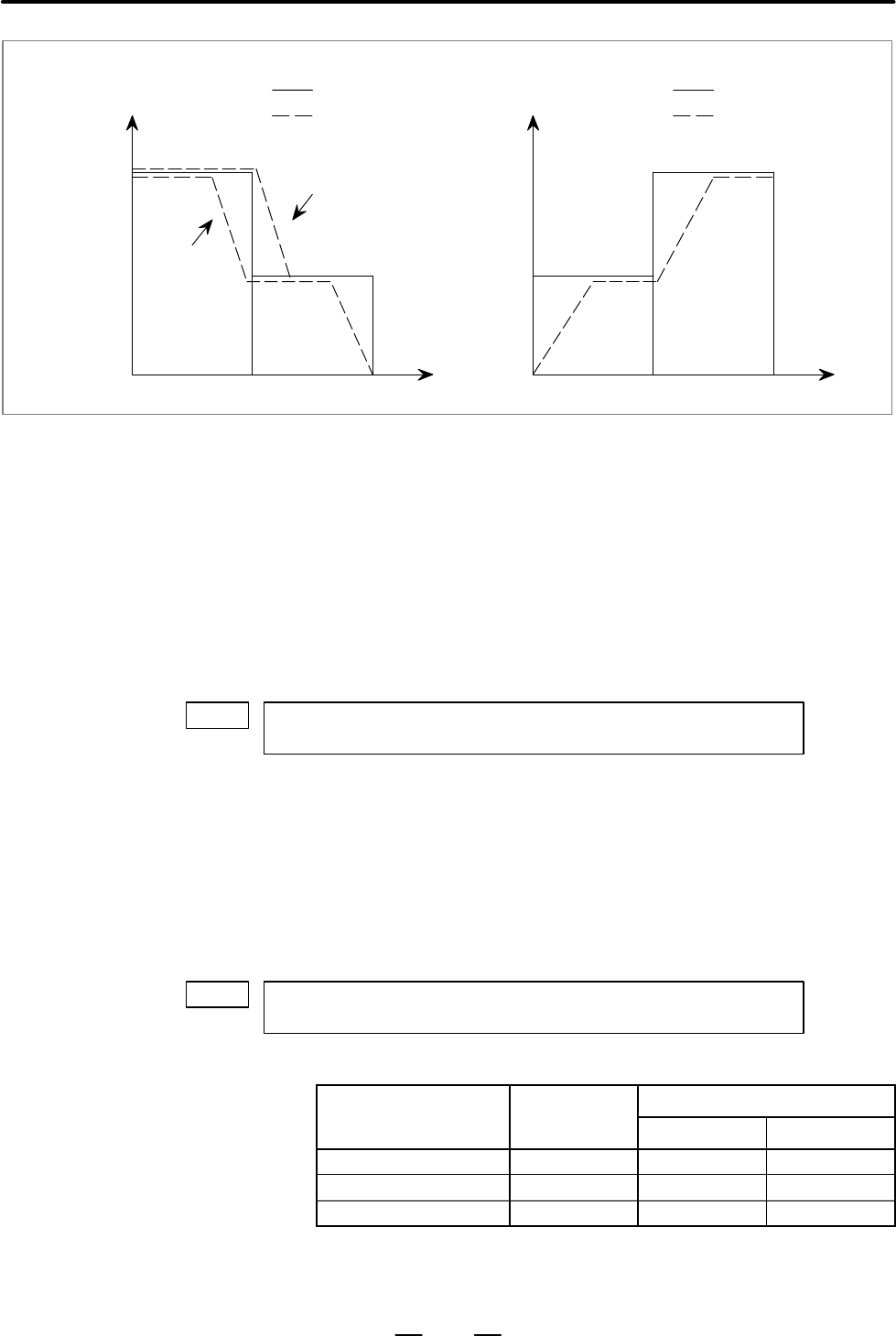

<Example of a deceleration process> <Example of an acceleration process>
CSD In the function for automatically reducing a feedrate at corners,
0 : Angles are used for controlling the feedrate.
1 : Differences in feedrates are used for controlling the feedrate.
LS2 Acceleration/deceleration after interpolation for cutting feed in the
advanced preview control mode
0 : Exponential acceleration/deceleration
1 : Linear acceleration/deceleration.
1762
Exponential acceleration/deceleration time constant for cutting feed
in the advanced preview control mode
[Data type] Word axis
[Unit of data] 1 ms
[Valid data range] 0 to 4000
Set an exponential acceleration/deceleration time constant for cutting
feed in the advanced preview control mode.
1763
Minimum speed in exponential acceleration/deceleration for cutting feed
in the advanced preview control mode
[Data type] Word axis
Increment system
Unit of data
Valid data range
Increment s
y
stem
Unit of data
IS-B IS-C
Millimeter machine 1 mm/min 6 – 15000 6 – 12000
Inch machine 0.1 inch/min 6 – 6000 6 – 4800
Rotation axis 1 deg/min 6 – 15000 6 – 12000
Set a minimum speed (FL) in exponential acceleration/deceleration for
cutting feed in the advanced preview control mode.
[Unit of data]
[Valid data range]
