Series 0i - Model A Connection manual (Function) Page 793

Connection manual (Function)
B–63503EN–1/01
15. PMC CONTROL FUNCTION
777
[Classification] Output signal

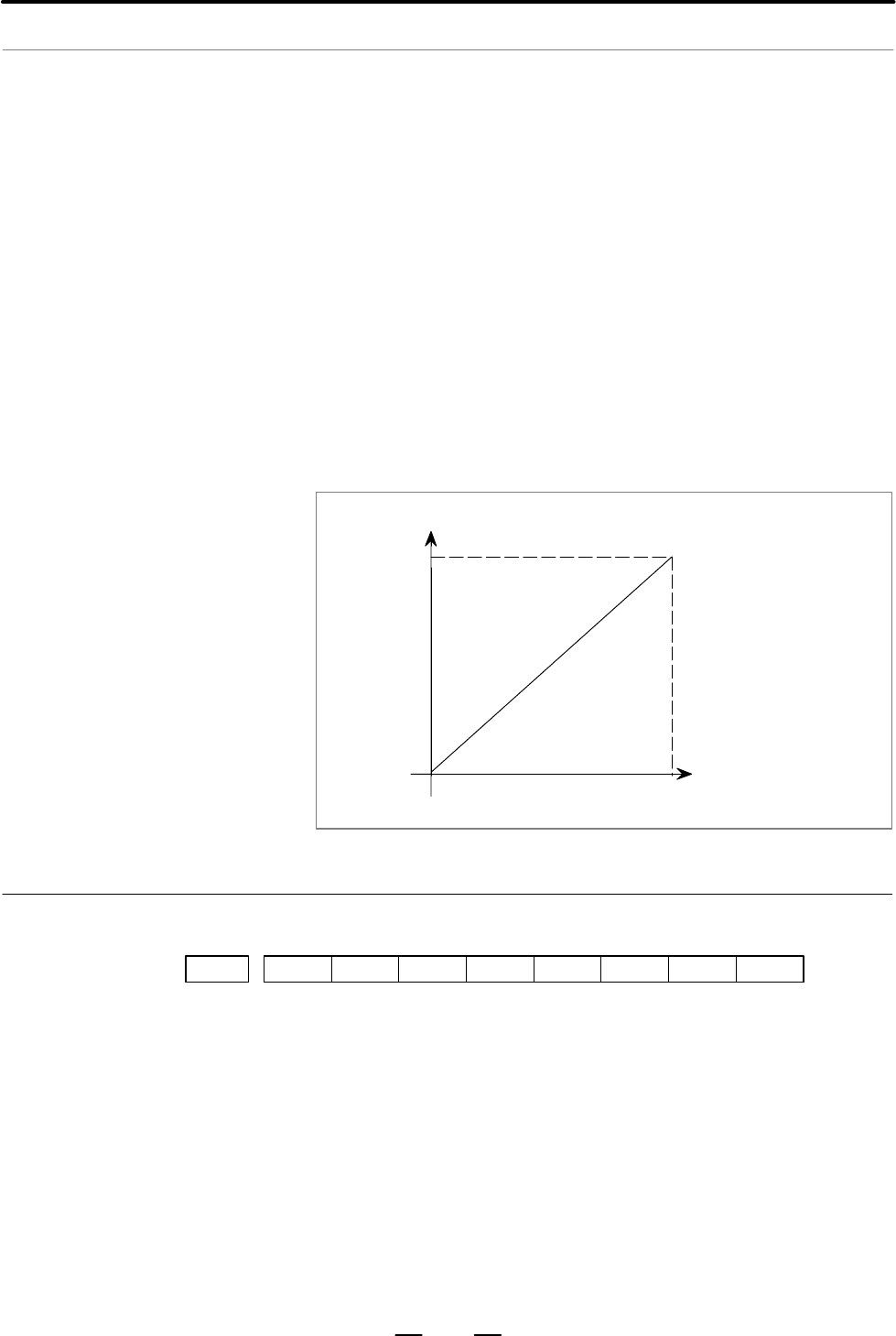

[Function] The S value, specified in the CNC part program, is converted to the speed
output to the spindle motor that is required to control the connected
spindle. The converted value is sent to the PMC with twelve code signals,
in proportion to the spindle motor speed output.
The speed data, the final result of the CNC spindle control, is output to
the spindle motor after the spindle gear ratio, spindle speed override,
speed clamp, conversion of the surface speed into the spindle speed by the
constant surface speed control command, and other data have been
considered.
(See Section 9.3 for an explanation of the relationship between the CNC
spindle control and the speed output to the spindle motor.)
0 min
–1
Code signal
0
4095
Maximum spindle
motor speed
(Speed output to the
spindle motor)
#7
3701
#6 #5 #4
SS2
#3 #2 #1 #0
[Data type] Bit
SS2 The number of connections in serial spindle control
0 : 1 spindle
1 : 2 spindles
Twelve code signals
corresponding to the S
value R01O to R12O
<G036#0 to G037#3>
Parameter
