B–63503EN–1/01

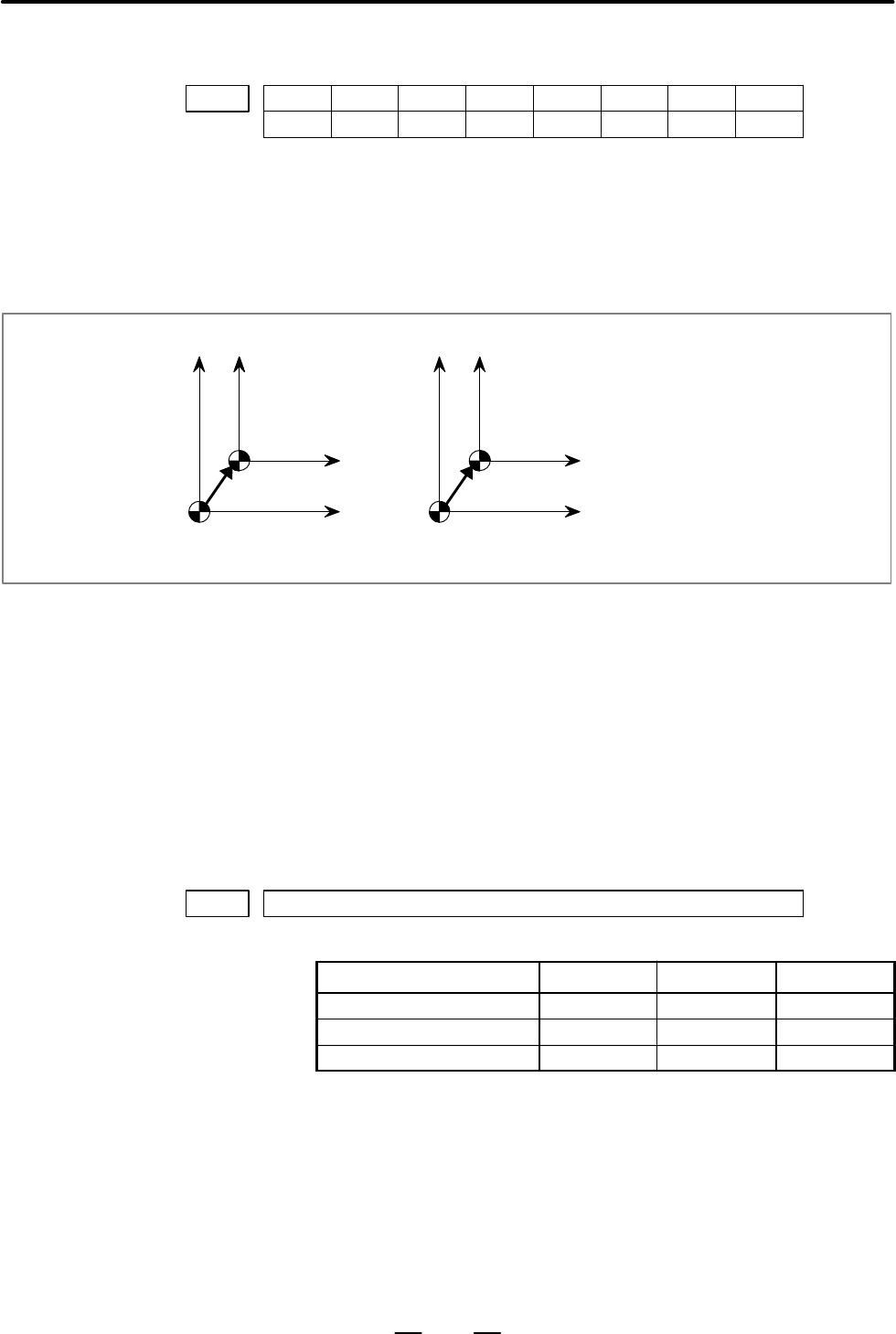

1. AXIS CONTROL

#7 #6 #5 #4 #3 #2 #1 #0

1202 G50 EWS EWD

[Data type] Bit

EWD The shift direction of the workpiece coordinate system is:

0 : The direction specified by the external workpiece zero point offset

value

1 : In the opposite direction to that specified by the external workpiece

zero point offset value

EWD=0

EXOFS : External workpiece zero point offset value

(Shifted workpiece

coordinate system)

EXOFS

XXX

–EXOFS

EWD=1

(Original workpiece

coordinate system)

EWS Shift value of the workpiece coordinate system and external workpiece

zero point offset value are

0 : Stored in the separate memory areas.

1 : Stored in the same memory area, that is, the shift and the offset values

are the same.

G50 G50 command for setting a coordinate system (or the G92 command in G

command system B or C) is specified,

0 : The G50 (or G92) command is executed without an alarm.

1 : P/S alarm No. 010 is issued and the G50 (or G92) command is not

executed.

1220 External workpiece zero point offset value

[Data type] Two–word axis

Input increment IS–B IS–C Unit

Linear axis (input in mm) 0.001 0.0001 mm

Linear axis (input in inches) 0.0001 0.00001 inch

Rotation axis 0.001 0.0001 deg

[Valid data range] –99999999 to 99999999

This is one of the parameters that give the position of workpiece

coordinate system (G54 to G59). It gives an offset of the workpiece zero

point common to all workpiece coordinate systems. In general, the offset

varies depending on the workpiece coordinate systems. The parameter

value can also be set from the PMC by using the external data input

function.

[Unit of data]
