Series 0i - Model A Connection manual (Function) Page 264

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

248

After specifying G94 (G98 for T series) (in the feed per minute mode), the

amount of feed of the tool per minute is to be directly specified by setting

a number after F. G94 (G98 for T series) is a modal code. Once a G94

(G98 for T series) is specified, it is valid until G95 (G99 for T series) (feed

per revolution) is specified. At power–on, the feed per minute mode (feed

per revolution mode for T series) is set.

An override from 0% to 254% (in 1% steps) can be applied to feed per

minute with the feedrate override signal.

Workpiece

Table

Tool

Feed amount per minute

(mm/min or inch/min)

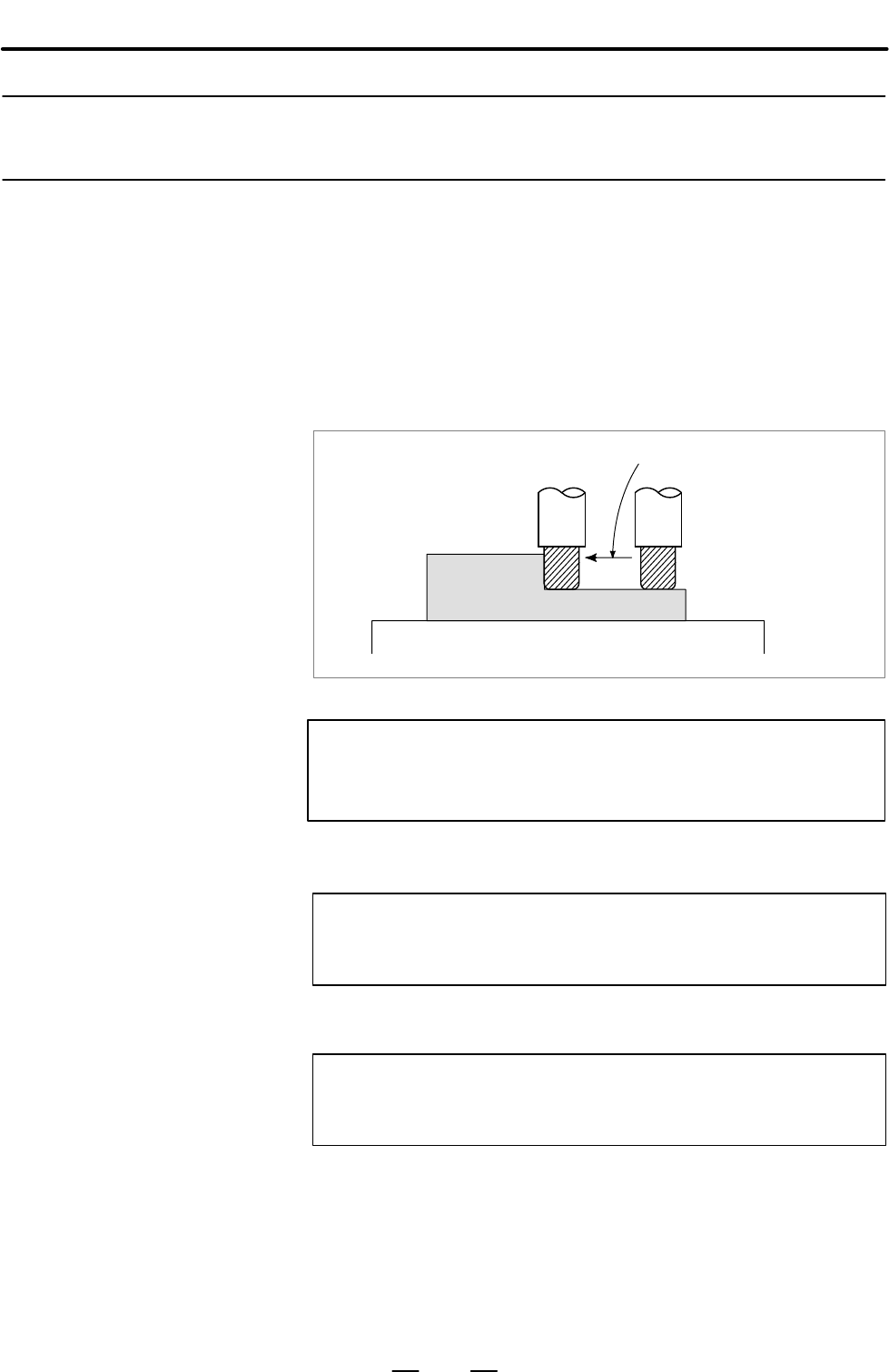

Fig. 7.1.3 Feed per minute

CAUTION

No override can be used for any commands such as for

threading.

For M series

G94; G code for feed per minute (Group 05)

F_; Feed rate (mm/min or inch/min)

For T series

G98; G code for feed per minute (Group 05)

F_; Feed rate (mm/min or inch/min)

7.1.3

Feed Per Minute

General

D Feed per minute (G94)

Format
