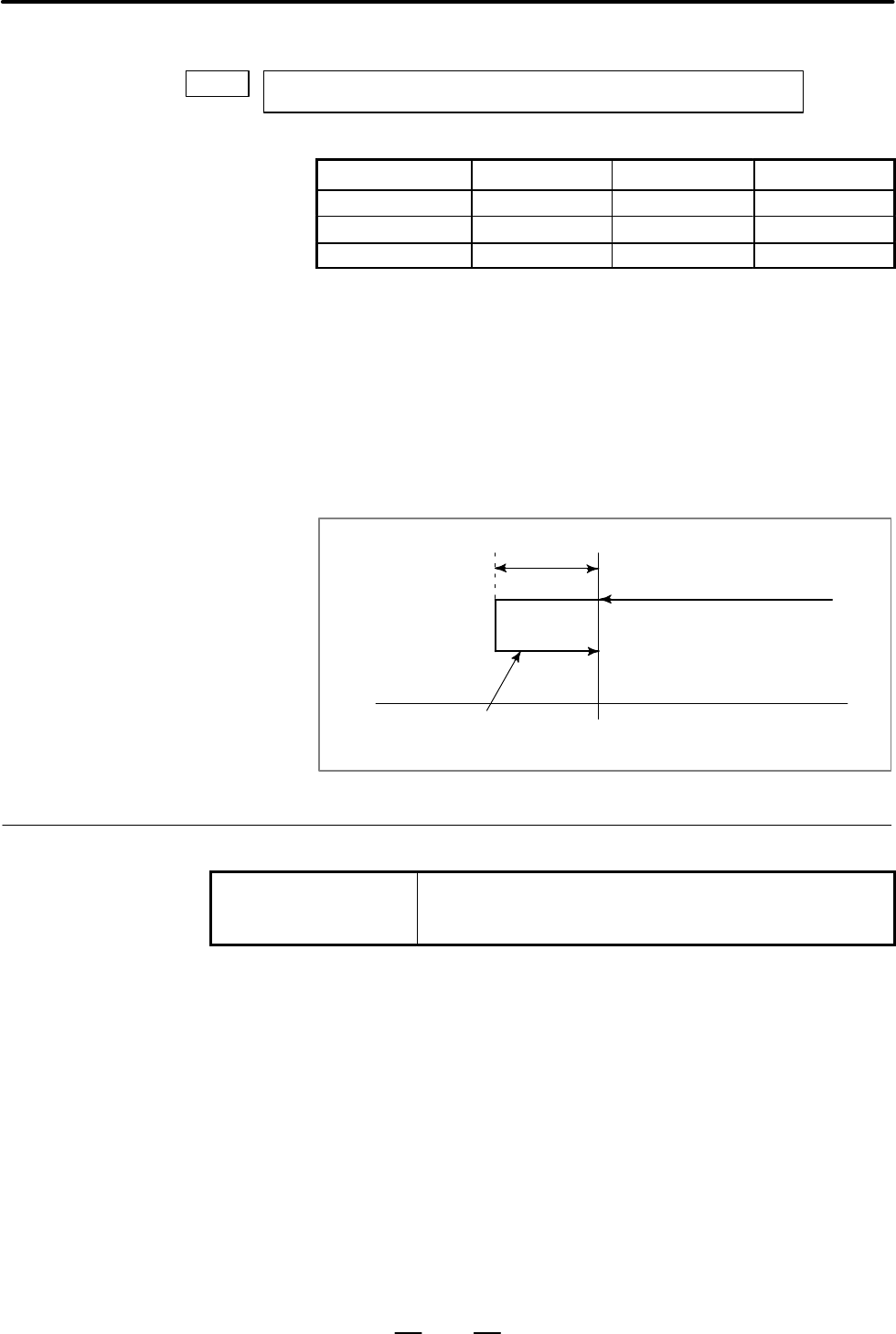

Series 0i - Model A Connection manual (Function) Page 239

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

6. INTERPOLATION FUNCTION

223

Positioning direction and overrun distance in uni–directional positioning

for each axis

5440

[Data type] Word axis

Increment system IS–B IS–C Unit

Metric input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

Rotation axis 0.001 0.0001 deg

[Valid data range] –16383 to +16383

This parameter sets the positioning direction and overrun distance in

uni–directional positioning (G60) for each axis. The positioning

direction is specified using a setting data sign, and the overrun distance

using a value set here.

Approach > 0: The positioning direction is positive (+).

Approach < 0: The positioning direction is negative (*).

Approach = 0: Uni–directional positioning is not performed.

Positioning direction (plus)

Overrun distance

– +

OPERATOR’S MANUAL

(For Machining Center)

(B–63514EN)

Single direction positioning

[Unit of data]

Reference item
