6. INTERPOLATION FUNCTION

B–63503EN–1/01

224

Helical interpolation which moved helically is enabled by specifying up

to two other axes which move synchronously with the circular

interpolation by circular commands.

The command method is to simply add one or two move command axes

which is not circular interpolation axes. An F command specifies a

feedrate along a circular arc. Therefore, the feedrate of the linear axis is

as follows:

F ×

Length of linear axis

Length of circular arc

Determine the feedrate so that the linear axis feedrate does not exceed any

of the various limit values.

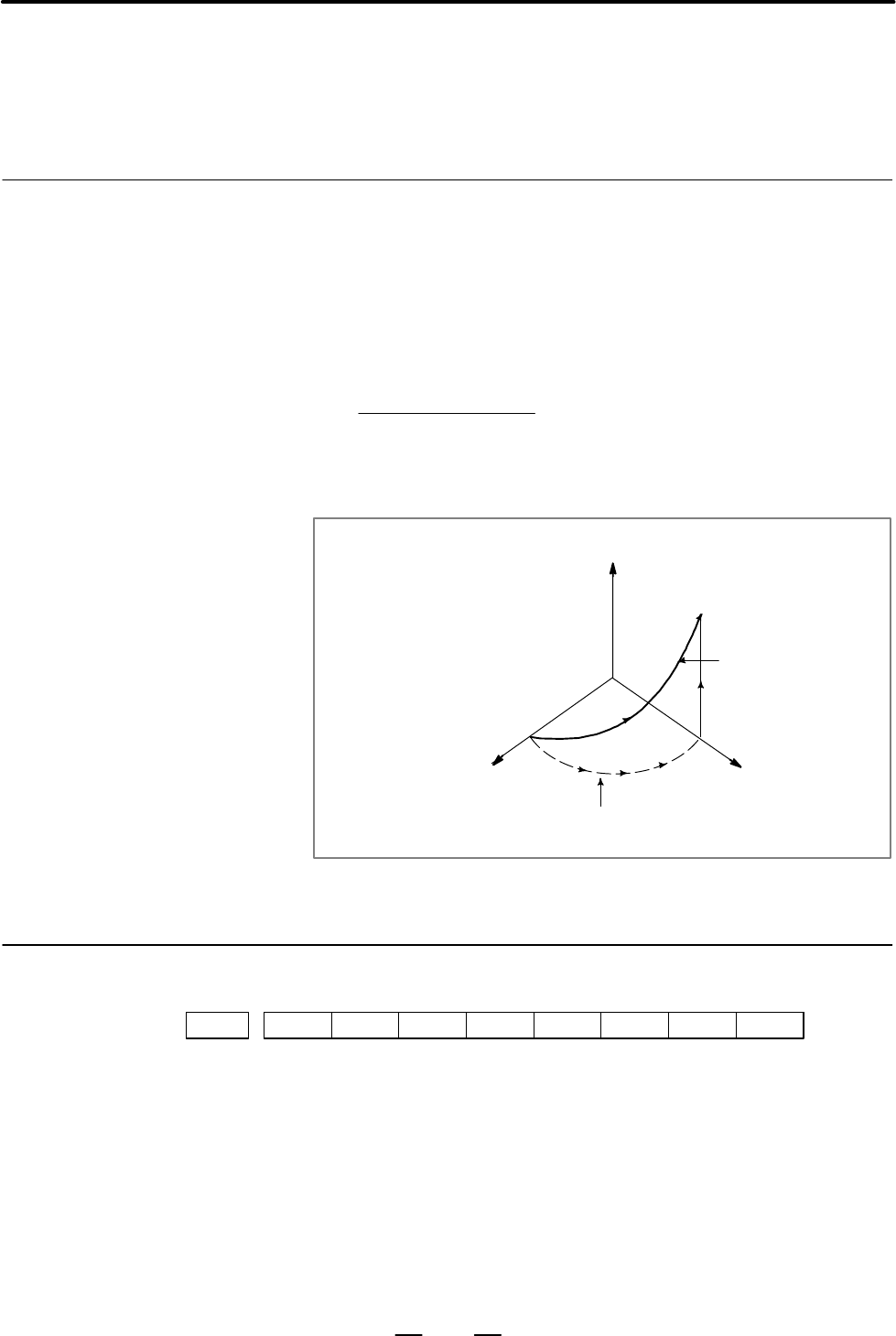

Tool path

The feedrate along the circumference of two cir-

cular interpolated axes is the specified feedrate.

1404

#6 #5 #4 #3 #2 #1 #0

HFC

HFC The feedrate for helical interpolation is:

0 : Clamped so that the feedrates along an arc and linear axis do not

exceed the maximum cutting feedrate specified by parameter.

1 : Clamped so that the composite feedrate along an arc and linear axis

does not exceed the maximum cutting feedrate specified by

parameter.

When HFC is 1, and two linear axes exist, the combined feedrate for

the four axes (two axes (arc) + two axes (straight line)) is clamped so

that it does not exceed the maximum cutting feedrate.

6.6

HELICAL

INTERPOLATION

General

Parameter
