7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

310

Speed

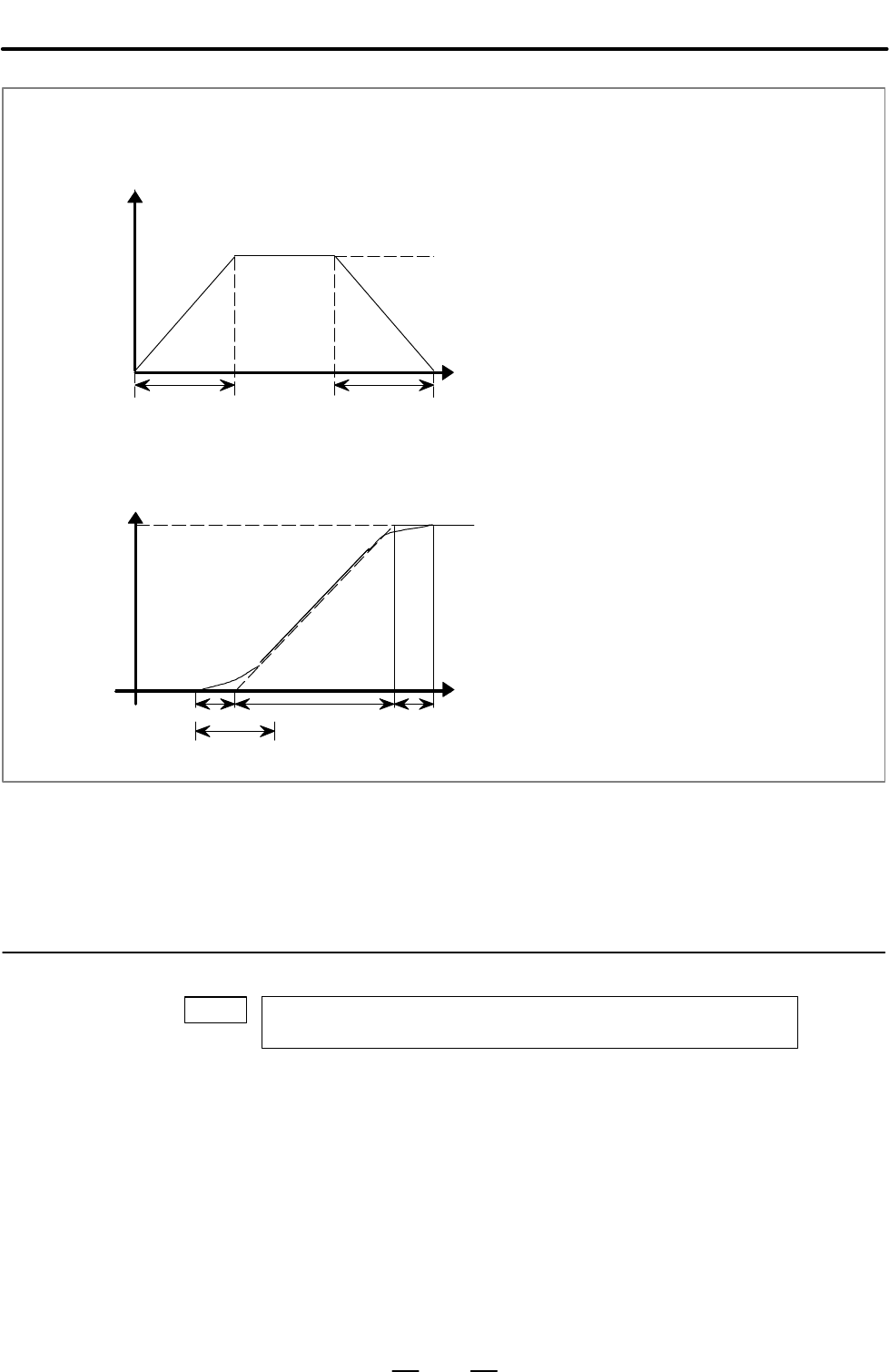

Rapid traverse rate

Time

T: Time constant for linear

acceleration/deceleration

Speed

Rapid

traverse rate

TIme

: Set a time constant used for lin-

ear acceleration/deceleration

: Set a time for rounding.

Total time=T

+ T

Time for linear=T

– T

Time for rounding part=T

Set a time when rapid traverse override is 100% . When it is less than

100%, the total time is reduced (constant acceleration method).

Value of T

is determined from motor torque. Set a value of T

to 24 ms

or 32 ms.

1620

Time constant used in linear acceleration/deceleration or bell–shaped

acceleration/deceleration in rapid traverse for each axis

[Data type] Word axis

[Unit of data] ms

[Valid data range] 0 to 4000

(1)When the bell–shaped acceleration/deceleration in rapid traverse is

provided, set this parameter to time constant T1 used in bell–shaped

acceleration/deceleration in rapid traverse, and set parameter No.1621

to time constant T2.

(2)When the bell–shaped acceleration/deceleration in rapid traverse is

not provided, set this parameter to time constant used in linear

acceleration/deceleration, and set parameter No.1621 to “0”.

Parameter

Contents Summary of Series 0i - Model A Connection manual (Function)
