B–63503EN–1/01

9. SPINDLE SPEED FUNCTION

368

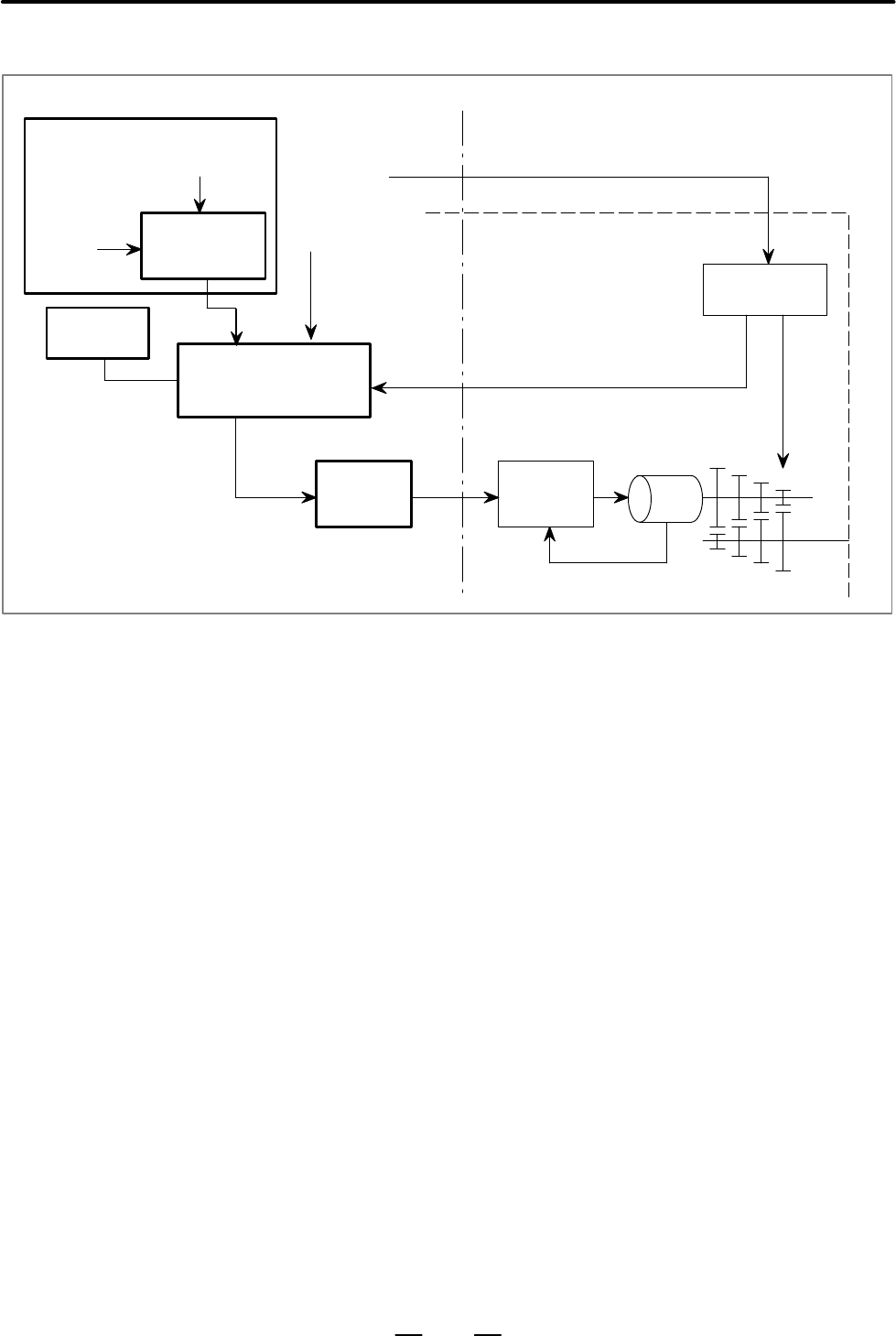

Reference→ Block Diagram for Analog Voltage Output

min

–1

/10V

X–axis pres-

ent value

Power magnetics cabinet

Gear change command

Speed

control

D-A

converter

Constant

surface

speed control

Motor speed conversion

Full scale conversion

Gear change

[Surface speed]

S(m/min)

M code

CNC

GR1, GR2

gear select signal

(contact)

Spindle motor

SF signal is not sent.

Parameter

SVC

G96

G97

S (min

–1

)

When the constant surface speed control is used.

Spindle speed

command

Using the above processing for gear change, the CNC calculates the speed

command output to the spindle motor that is necessary to obtain the

specified spindle speed with the gear.

For either serial spindle or analog spindle control, the calculation results

are output as the S12 bit code signal from 0 to 4095 to the PMC.

(R12O to R01O<F037#3 to F036#0>)

After the calculation results are received, the SIND signal <G033#7>

determines which is to be used, the speed command output calculated by

the CNC or the data specified in the PMC. Thus speed command output

control for the spindle motor is determined. (See also Section 15.4.)

The speed command output to the spindle motor is determined as

described above, but the actually used output polarity is determined by the

CNC as follows:

⋅ If bit 7 (TCW) of parameter No. 3706 = 0

→ Determined according to bit 6 (CWM) of parameter No. 3706

⋅ If bit 7 (TCW) of parameter No. 3706 = 1

→ Determined according to bit 6 (CWM) of parameter No. 3706 and

M03/M04 given to the CNC

After that, the SSIN signal <G033#6> determines which is to be used, the

output polarity calculated by the CNC or the polarity specified in the

PMC. In this way, the output polarity of the speed command output to

the spindle motor is determined. (See also Section 15.4.)

D Determination of output

R12O–R01O (Output)

R12I–R01I (Input)

SIND (Input)

D Determination of output

polarity SSIN/SGN (Input)
