B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

305

Cutting feed: Exponential acceleration/deceleration (time constant per

axis is set by parameter 1622)

Jog feed : Exponential acceleration/deceleration (time constant per

axis is set by parameter 1624)

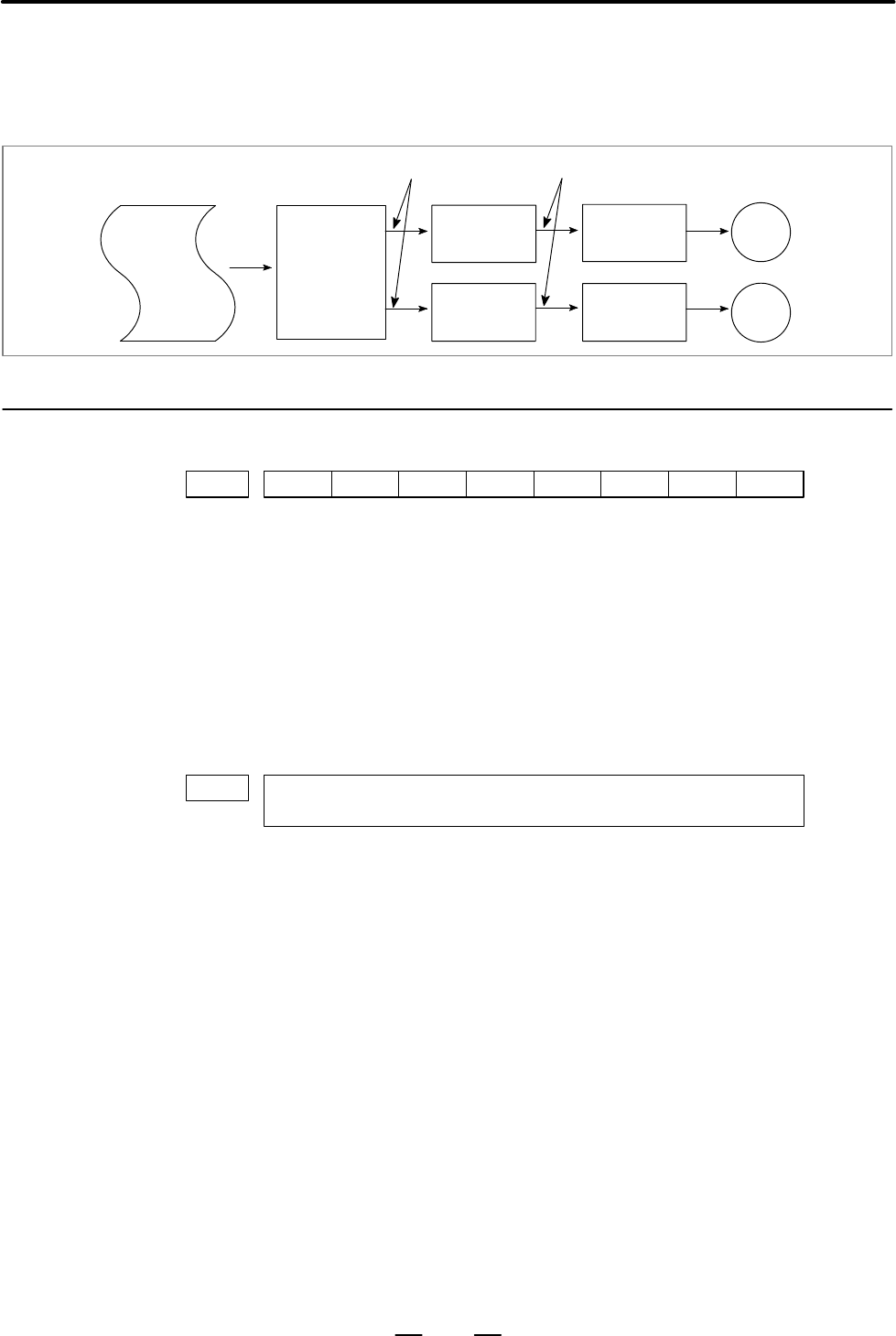

CNC

command

Pulse

distribution

(interpolation)

Rate after interpolation Rate after acceleration/deceleration

Servo motor

Acceleration/

deceleraton

control

Acceleraton/

deceleration

control

Servo control

1610

#6 #5 #4

JGLx

#3 #2 #1 #0

CTLx

[Data type] Bit axis

CTLx Acceleration/deceleration in cutting feed including feed in dry run

0 : Exponential acceleration/deceleration is applied.

1 : Linear acceleration/deceleration after interpolation is applied.

JGLx Acceleration/deceleration in manual continuous feed (jog feed)

0 : Exponential acceleration/deceleration is applied.

1 : Linear acceleration/deceleration after interpolation is applied

(depending on which is used for cutting feed).

1620

Time constant used for linear acceleration/deceleration or bell–shaped

acceleration/deceleration in rapid traverse for each axis

[Data type] Word axis

[Unit of data] ms

[Valid data range] 0 to 4000

(1)When the bell–shaped acceleration/deceleration in rapid traverse is

provided, set this parameter to time constant T1 used in bell–shaped

acceleration/deceleration in rapid traverse, and set parameter No.1621

to time constant T2.

(2)When the bell–shaped acceleration/deceleration in rapid traverse is

not provided, set this parameter to time constant used in linear

acceleration/deceleration, and set parameter No.1621 to “0”.

Parameter
