B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

299

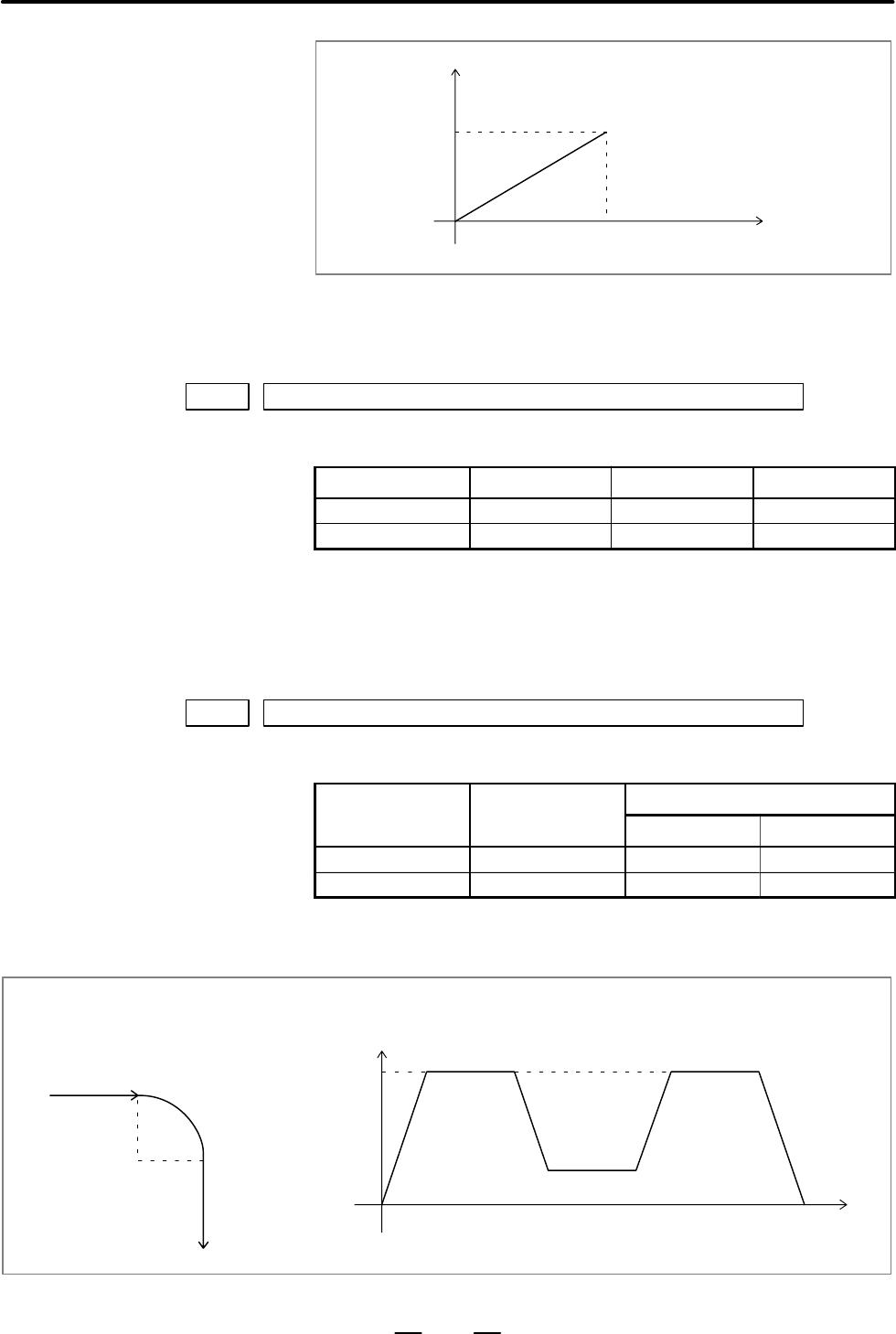

Parameter 1785

Parameter

1432

Feedrate

(mm/min)

Time (ms)

Allowable acceleration

1731 Arc radius for the upper limit imposed on feedrate

[Data type] 2–word

Increment system IS–B IS–C Unit

Metric input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

[Valid data range] 1000 to 99999999

This parameter sets the arc radius for the upper limit imposed on the

feedrate set in parameter 1730.

1730 Upper limit imposed on feedrate for arc radius R

[Data type] Word

Valid data range

Increment system Unit of data

IS–B IS–C

Millimeter machine 1 mm/min 8 to 15000 0 to 12000

Inch machine 0.1 inch/min 8 to 6000 0 to 4800

This parameter sets the upper limit imposed on the feed rate for the arc

radius set in parameter 1731.

Specified

feedrate

N2 N3

Time

(Example)

D Parameters related to

feedrate clamping by arc

radius

[Unit of data]

[Valid data range]
