4. REFERENCE POSITION ESTABLISHMENT

147

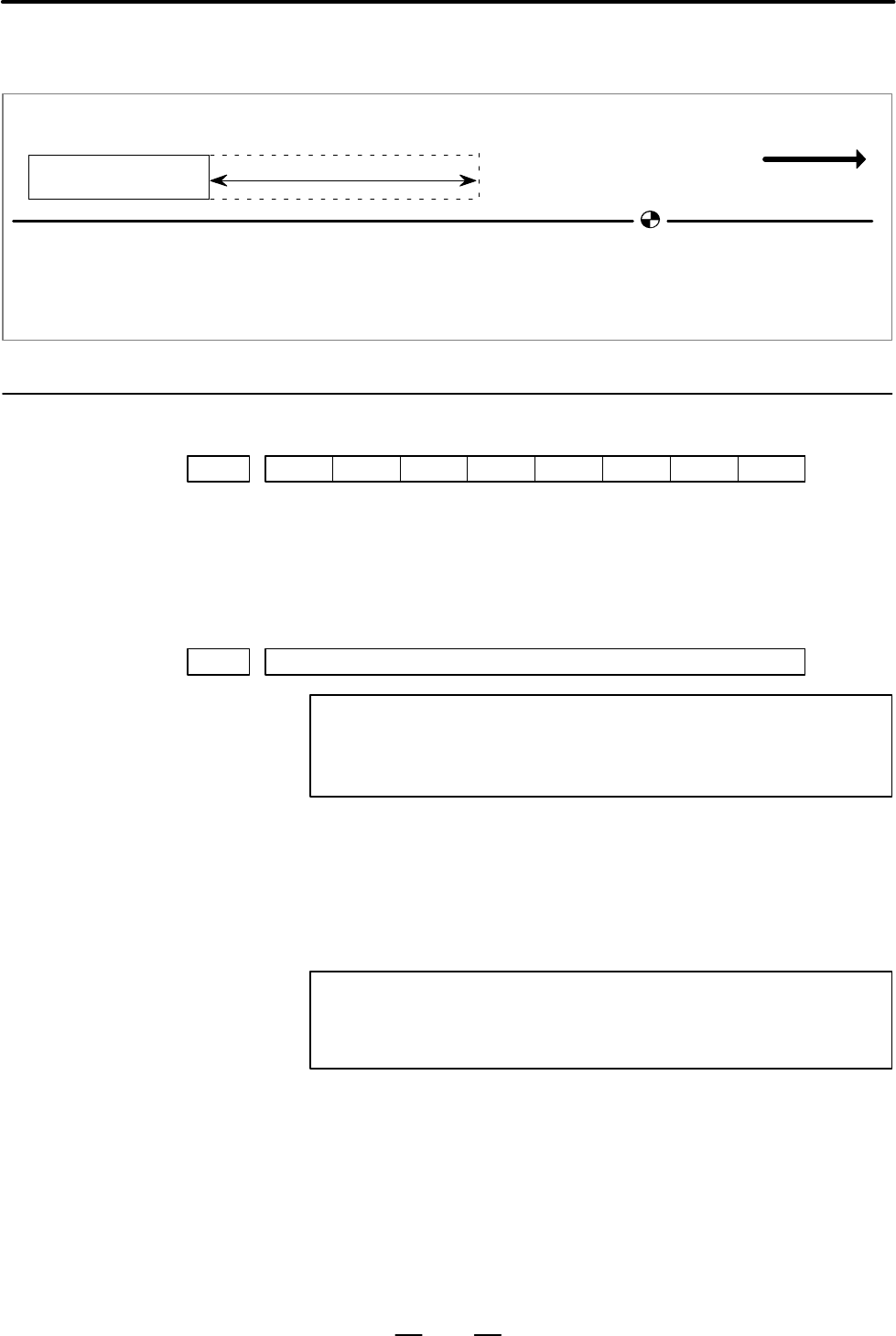

(3)Perform reference position return again. Then, the tool stops when it

reaches the reference position.

Direction of reference position return

Deceleration dog

↑

Reference position

(stop position)

Grid point

↑

SFT

1002

#6 #5 #4 #3 #2

SFD

#1 #0

[Data type] Bit

SFD The function for shifting the reference position is

0 : Not used

1 : Used

1850 Reference position shift for each axis

NOTE

When this parameter has been set, the power must be

turned off before operation is continued.

[Data type] Two–word axis

[Unit of data] Detection unit

[Valid data range] –99999999 to 99999999

A reference position shift is set for each axis.

CAUTION

When bit 2 of parameter No. 1002, SFD, is set to 0, this

parameter is used for reference position shift.
