Series 0i - Model A Connection manual (Function) Page 289

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

273

ACD Function for automatically reducing the feedrate at corners (automatic

corner deceleration function)

0 : The function is not used.

1 : The function is used.

1602

#6 #5 #4

CSD

#3 #2 #1 #0

[Data type] Bit

CSD In the function for automatically reducing a feedrate at corners,

0 : Angles are used for controlling the feedrate.

1 : Differences in feedrates are used for controlling the feedrate.

1740 Critical angle subtended by two blocks for automatic corner deceleration

[Data type] Two–word

[Unit of data] 0.001 deg

[Valid data range] 0 to 180000

Set a critical angle to be subtended by two blocks for corner deceleration

when the angle–based automatic corner deceleration function is used.

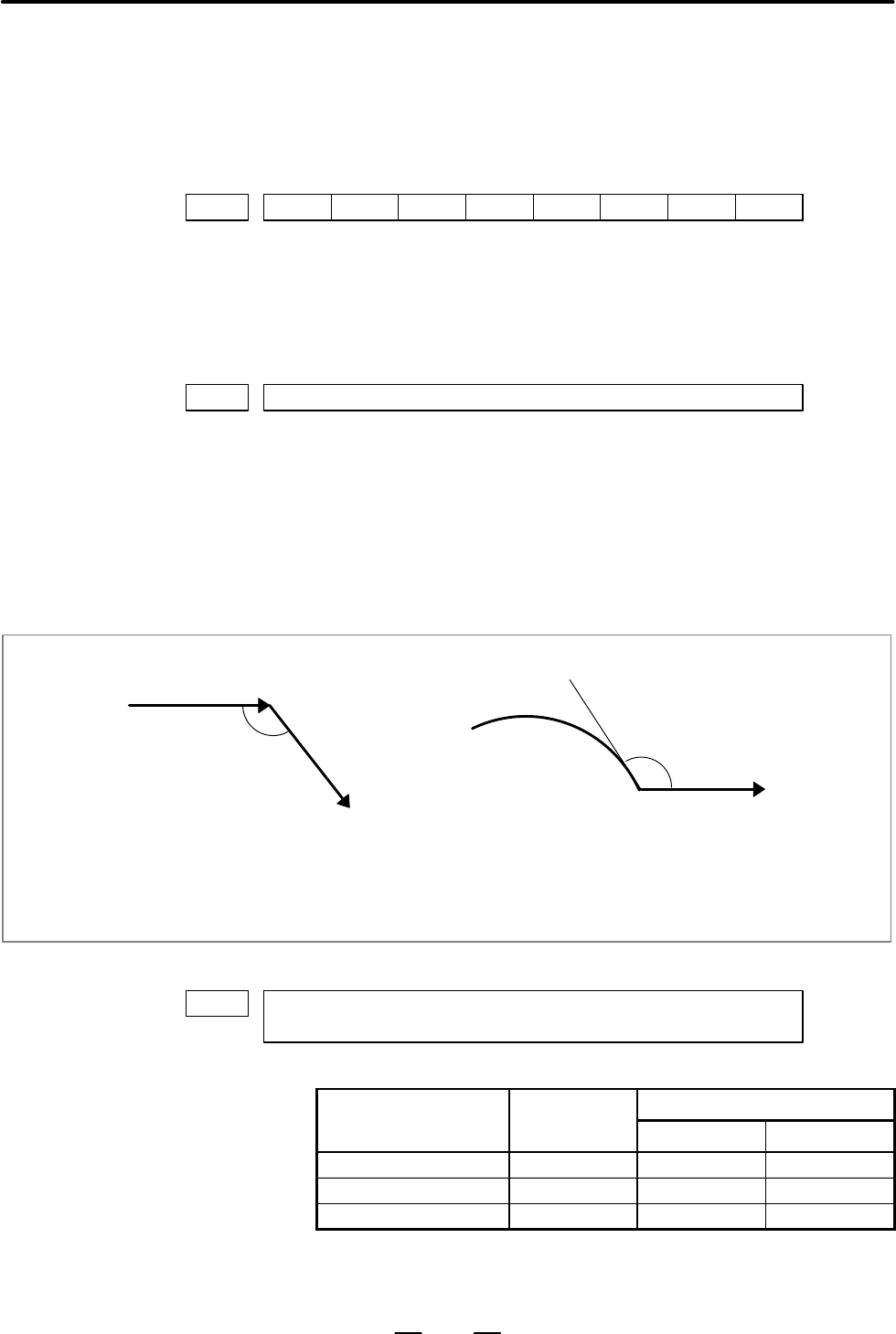

The angle subtended by two blocks is defined as q in the examples shown

below.

Block A (G01)

Block B (G01)

Angle made by two lines

Block A (G02)

Block B(G01)

If a circular path is included, the angle

between the tangent of the arc and

another line is considered.

1741

Feedrate for assuming the termination of automatic corner deceleration

(for acceleration/deceleration after interpolation)

[Data type] Word axis

Increment system

Unit of data

Valid data range

Increment s

stem

Unit of data

IS-B IS-C

Millimeter machine 1 mm/min 6 – 15000 6 – 12000

Inch machine 0.1 inch/min 6 – 6000 6 – 4800

Rotation axis 1 deg/min 6 – 15000 6 – 12000

Set the feedrate for assuming the termination of deceleration in automatic

corner deceleration.

[Unit of data]

[Valid data range]
