Series 0i - Model A Connection manual (Function) Page 256

Connection manual (Function)

Page of 874

/ 874

6. INTERPOLATION FUNCTION

B–63503EN–1/01

240

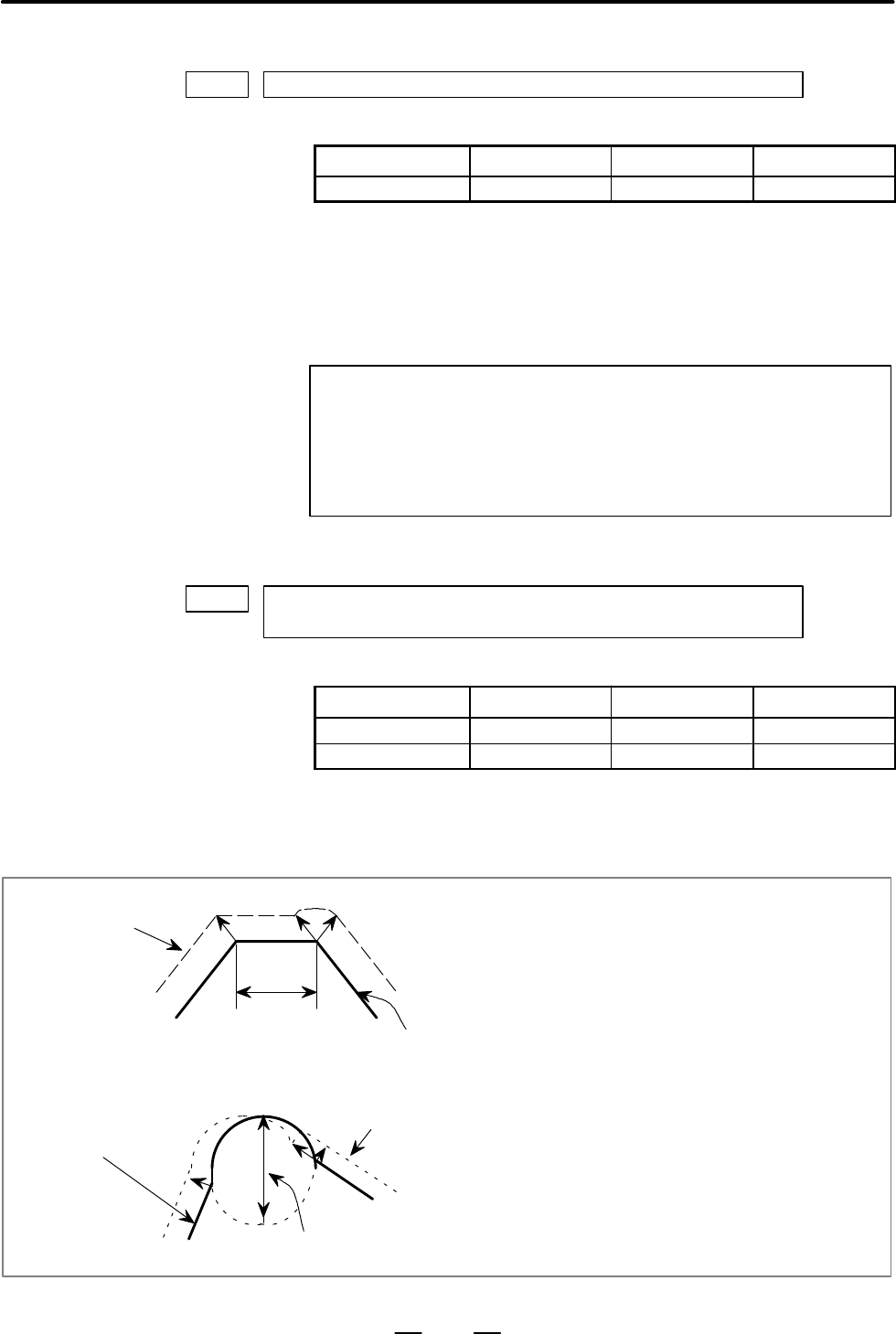

5482 Limit value that ignores the rotation insertion of normal direction control axis

[Data type] Two–word

Increment system IS–B IS–C Unit

Rotation axis 0.001 0.0001 deg

[Valid data range] 1 to 99999999

The rotation block of a normal direction control axis is not inserted when

the rotation insertion angle calculated during normal direction control

does not exceed this setting value. The ignored rotation angle is added to

the next rotation insertion angle. The block insertion is then judged.

NOTE

1 No rotation block is inserted when 360 or more degrees are

set.

2 If 180 or more degrees are set, a rotation block is inserted

only when the circular interpolation is 180 or more degrees.

5483

Limit value of movement that is executed at the normal direction angle of

a preceding block

[Data type] Two–word

Increment system IS–B IS–C Unit

Metric input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

[Valid data range] 1 to 99999999

This parameter sets the limit value of movement at the normal direction

angle of a preceding block.

Tool center path

Movement

Programmed path

For straight line

Block N2 is machined with the tool being normal

to block N1 when the movement of N2 in the

figure on the left does not exceed the set value.

Diameter

Programmed path

Tool center path

For arc

Arc N2 is machined with the tool being normal

to block N1 when the arc diameter of N2 in the

figure on the left does not exceed the setting

value. A normal direction axis is not controlled

to move in the normal direction according to

the arc movement.

[Unit of data]
