14. MEASUREMENT

B–63503EN–1/01

704

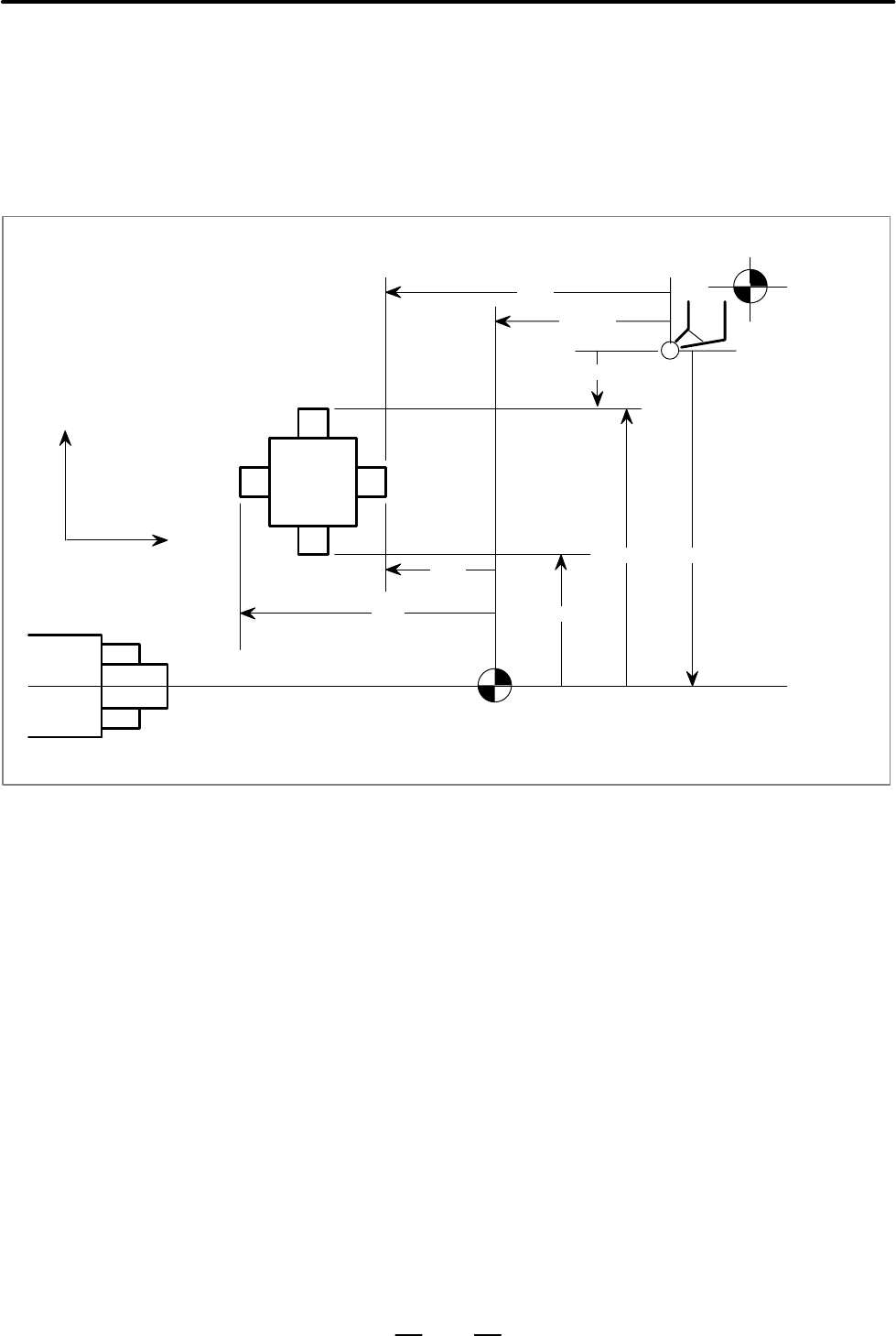

The measuring reference point may be an imaginary point (imaginary

zero point), as shown in the figure below. The difference between the

imaginary zero point and the measuring tool nose tip position at the

mechanical reference point is settable as the tool offset value of the

measuring tool, by setting the distances from the imaginary zero point to

the respective contact faces as parameters.

(0 , 0)

Z t

Zp Xp

Xm OFSx

OFS

Measuring tool nose

position at the

mechanical

reference position

Machine

zero point

Measuring reference position

(Imaginary zero point)

When the imaginary zero position is set as the measuring reference position

The workpiece coordinate system shift amount for the Z-axis is settable

as follows: Bring the tool to touch the workpiece end face. Subtract the

tool geometry offset value of the tool (the value shifted in the coordinate

system by the tool geometry offset) from the machine coordinate value

(the distance from the measuring tool nose tip position at the mechanical

reference position (machine zero point) to the workpiece end face).The

result is set as the workpiece coordinate system shift value.

(Z axis workpiece coordinate system shift amount to be set

(EXOFSz) )

= (Z axis tool geometry offset value of the corresponding tool

(OFSz)) – (Z axis machine coordinate value(Zt))

Using the above methods, the workpiece coordinate system is set with

the workpiece end face (the contact point of the sensor) specified as

the programmed zero point of the workpiece coordinate system of the

Z-axis.

Example 2

D Setting the workpiece

coordinate system shift

amount
