15. PMC CONTROL FUNCTION

1035

This function enables control of the Cs–axis by executing a constant

velocity command for PCM–axis control using position loop control. In

other words, the function can operate the PMC–axis at a constant velocity

by outputting command pulses equivalent to the rotational speed to the

servo position control below, instead of outputting rotational speed data

to the amplifier.

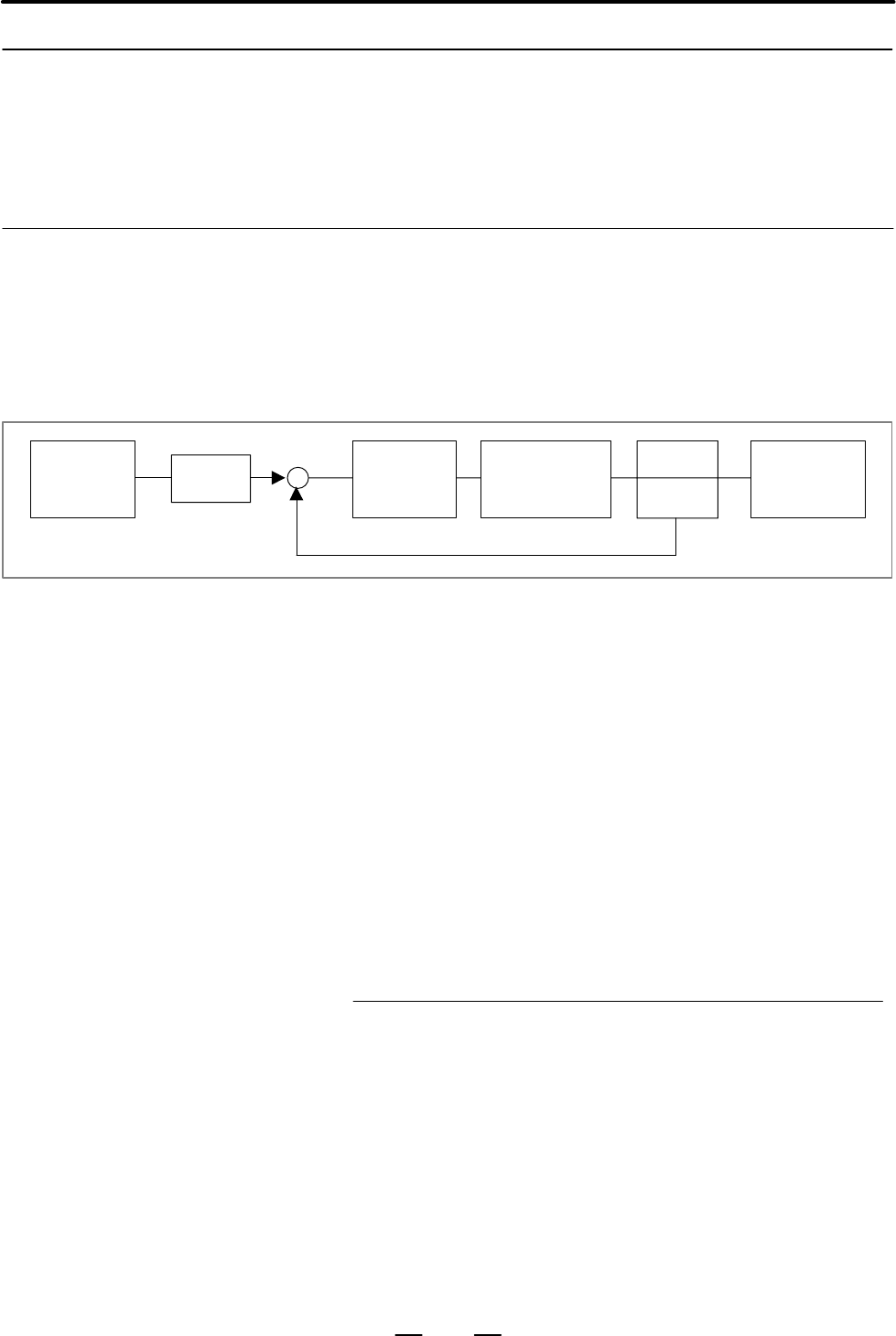

Block diagram

Command

pulse

X CMR

Position

control

Spindle (Cs–axis)

or servo amplifier

Motor

Spindle

(Cs–axis) or

servo axis

Detector

Bit 4 of parameter No. 8005 specifies either position loop control or

velocity loop control is used to execute a constant velocity command for

PMC–axis control.

For a constant velocity command, acceleration or deceleration is

performed only by its dedicated parameters and normal acceleration or

deceleration is not performed even in position control (bit 4 of parameter

No. 8005 is 1).

In position control (bit 4 of parameter No. 8005 is 1), an override is

enabled.

Set the amount of travel per rotation, expressed in least command

increments, in parameter No. 8040 for each axis and then use this to

convert from a velocity command to a position command.

The following expression is obtained by assuming that P is output pulses

(least command increment).

P =

Velocity command Parameter No. 8040 ITP time Override

60 1000 100

This function is included in the PMC–axis control function.

15.1.2

Constant Velocity

Command Position

Control

Overview

Specifications

Notes
