9. SPINDLE SPEED FUNCTION

528

[Classification] Output signal

[Function] This signal converts the spindle speed command value calculated by the

CNC to code signals 0 to 4095.

[Output condition] The relationship between the spindle speed command value (calculated

by the CNC) and the value output by this signal is as shown below.

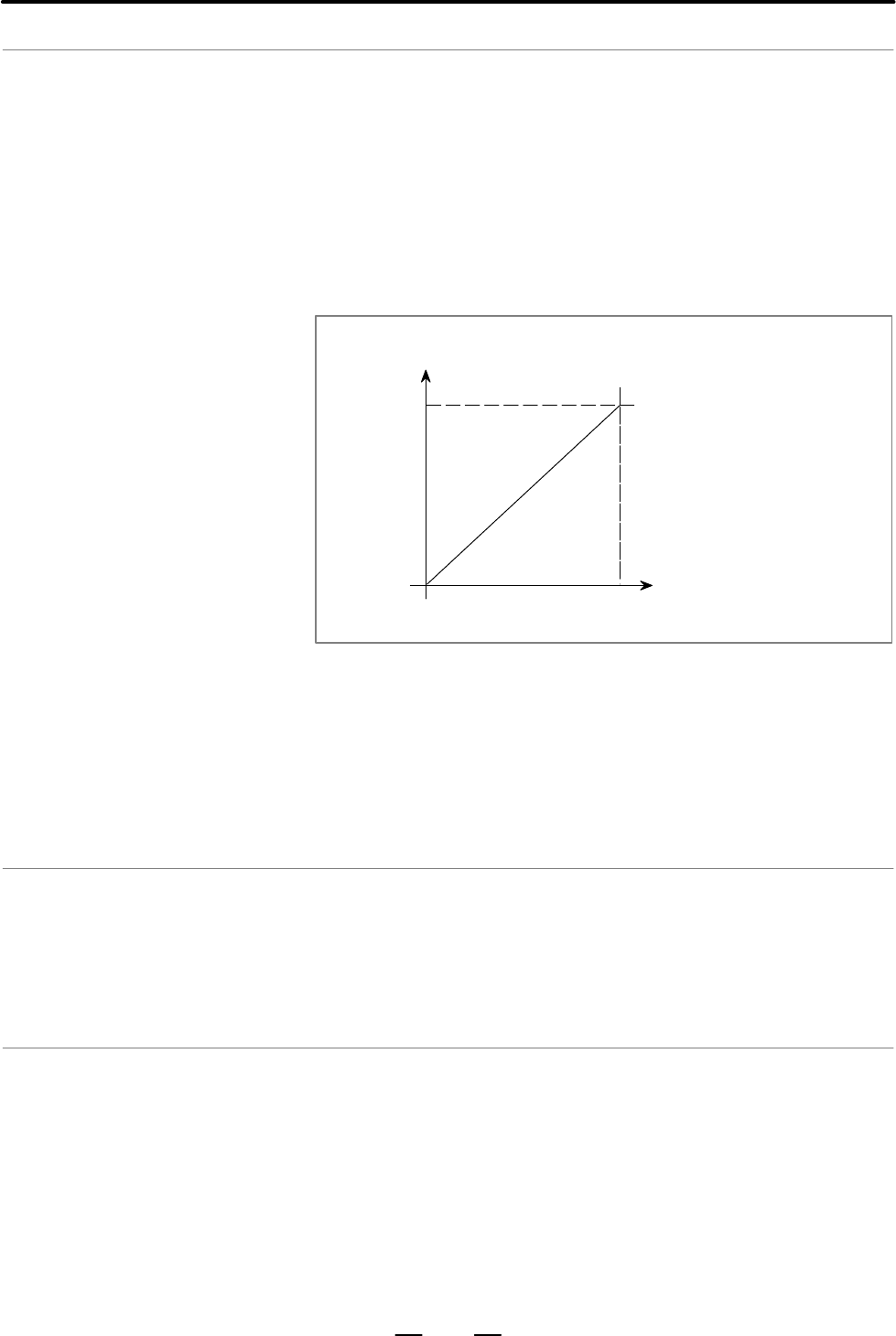

S12 bit code

signal

4095

16383 (Digital data) ← Serial spindle

10V (Analog voltage) ← Analog spindle

This signal converts the spindle speed command value calculated by the

spindle control function of the CNC to data from 0 to 4095 (for both serial

and analog spindle control) and outputs the result. Note that the

conversion result is not the actual output value. (See Section 15.4.)

See Sections 9.1 and 15.4 for these signals.

See Section 15.4 for these signals.

S12–bit code signal

R01O to R12O

<F036#0 to F037#3>

Other signals

Spindle speed function

code signal S00 to S31

<F025 to F022> (Output)

Spindle speed function

strobe signal

SF<F007#2> (Output)

Spindle speed output

control signal by PMC

SIND<G033#7> (Input)

R01l to R12l

<G032#0 to G033#3>

(Input)

SSIN <G033#6> (Input)

SGN <G033#5> (Input)
