18. TROUBLE DIAGNOSIS
B–64113EN–1/01
1116

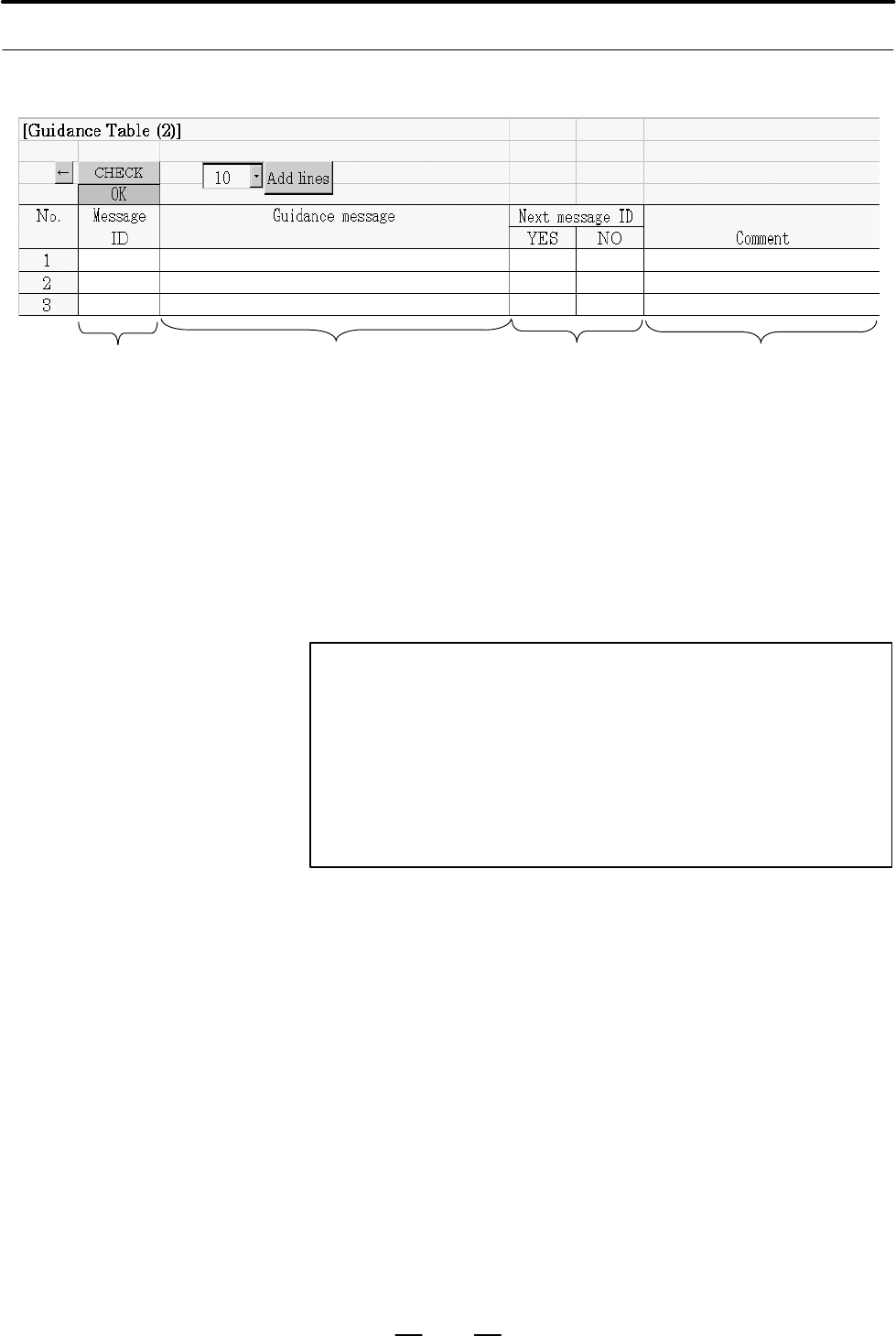

”Guidance message” is registered into a guidance table (2). ”Guidance
message” is a question and an instruction to an operator.
(a)
(b) (c) (d)
(a) Message ID
A Message ID specifies a guidance message.
Max 6 characters with capital letters.
Ex.) In case of the first message for the external alarm message alarm
No.1000
”1000A”
Ex.) In case of the second message for the external alarm message
alarm No.1000
”1000B”
CAUTION
Message IDs starting with ”M” are reserved for a jump to
MTB’s guidance table from a CNC guidance table.
Ex.) ”M205”, ”M407”
Do not use a message ID starting with ”M” for the other
purpose.
Please refer to Item ”Jump from CNC guidance table to
MTB’s guidance table”.
(b)Guidance message
Write a question, an instruction and so on to operators.
Max 32 characters * Max 4 lines.
It is displayed at the part of ”GUIDANCE” on the trouble diagnosis
guidance screen.
S If 32 characters are displayed in one line, the next character is
automatically displayed in a new line.
S If a new line is required on purpose, write ”\n”. ”\n” is not counted
in the number of characters.
S The total number of lines must be within 4 lines.
(c) Next message ID
Next message ID specifies a guidance message which is displayed
after an operator pushes a soft–key [YES]/[NO] to answer a question.
Max 6 characters with capital letters.
S Input ”–1” when there is no next message ID to display after a
soft–key [YES]/[NO] is pushed.
Making a guidance table
(2)
Input items
Previous page
Next page
