11. PROGRAM COMMAND
761
5114 Return or clearance value of drilling canned cycle G83
Return value of high–speed peck drilling cycle G73
[Data type] Word
Increment system IS-A IS-B IS-C Unit
Metric input 0.01 0.001 0.001 mm
Inch input 0.001 0.0001 0.0001 inch
[Valid data range] 0 to 32767
For M series, this parameter sets the return value in high–speed peck
drilling cycle G73 (G83 for T series).
q : Depth of cut
d : Return value
Z point
G73 for M series
R point
q
d
d
q
q

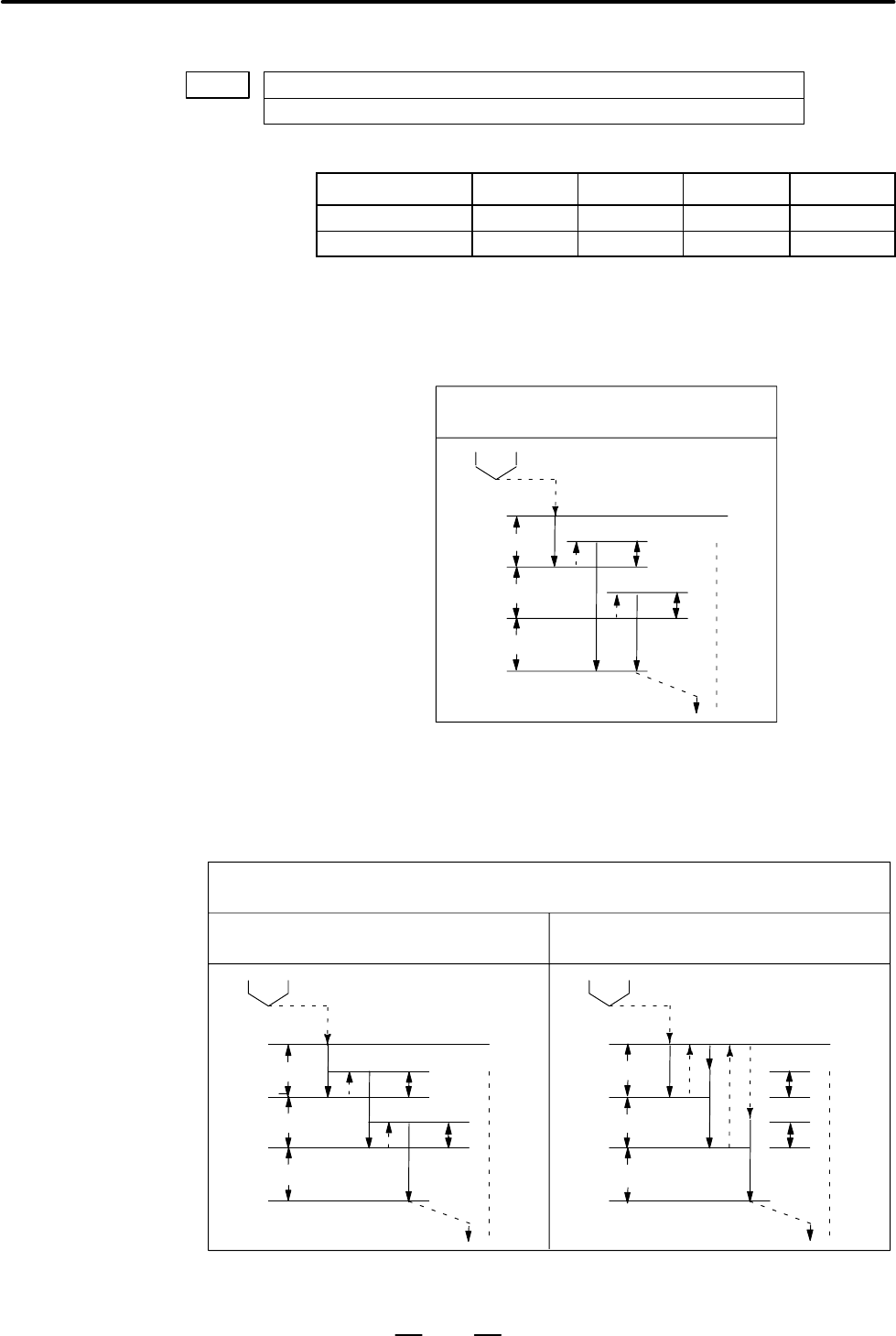

Fig. 11.6 (e) High–speed peck drilling cycle (G73) for M series
For T series, this parameter sets the return or clearance value in drilling
canned cycle G83.
q : Depth of cut
d : Clearance value
q : Depth of cut
d : Return value
Parameter No. 5101 RTR=0
(High speed peck drilling cycle)
Parameter No. 5101 RTR=1
(Peck drilling cycle)
G83 for T series
R point
Z point
q
q
q
d
d
R point
Z point
q
q
q
d
d
Fig. 11.6 (f) Drilling canned cycle (G83) for T series
[Unit of data]
