10. TOOL FUNCTIONS

B–64113EN–1/01

714

When the tool is moved, the tool path can be shifted by the radius of the

tool.

To make an offset as large as the radius of the tool, first create an offset

vector with a length equal to the radius of the tool (start–up). The offset

vector is perpendicular to the tool path. The tail of the vector is on the

workpiece side and the head points to the center of the tool.

If a linear interpolation, corner offset, or circular interpolation command

is specified after start–up, the tool path can be shifted by the length of the

offset vector during machining.

To return the tool to the start point at the end of machining, cancel the

cutter compensation mode.

Start–up

Cutter

compensation

cancel

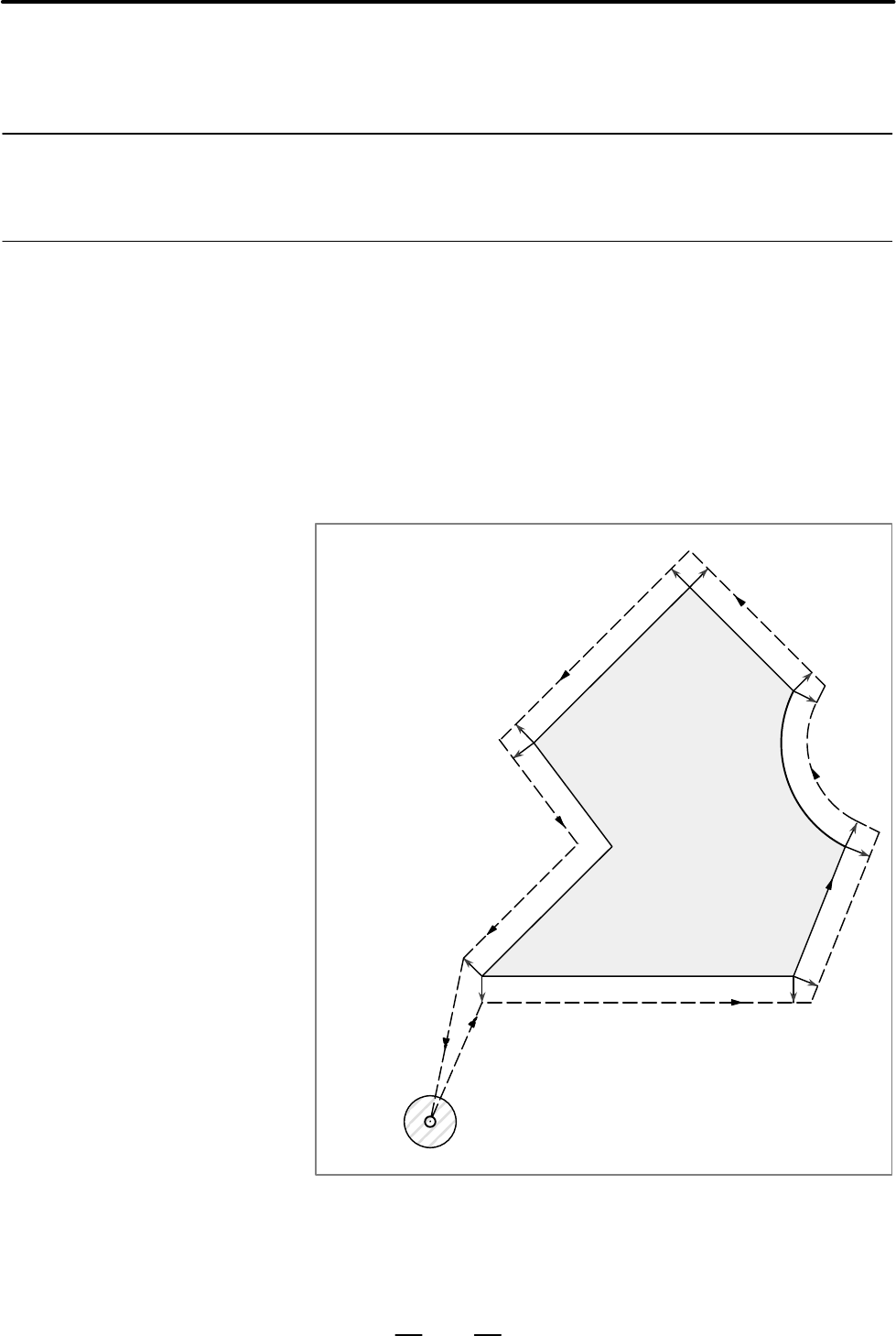

Fig. 10.4.1 Outline of cutter compensation C

10.4

CUTTER

COMPENSATION

10.4.1

Cutter Compensation C

(M Series)

General
