4. REFERENCE POSITION ESTABLISHMENT

261

CAUTION

1 An incorrect coordinate system will be established when a

wrong value is set in this parameter. In such a case, please

execute reference point return again after setting the

correct value in this parameter.

2 This parameter is unavailable on linear scale with

distance–coded reference marks (serial)

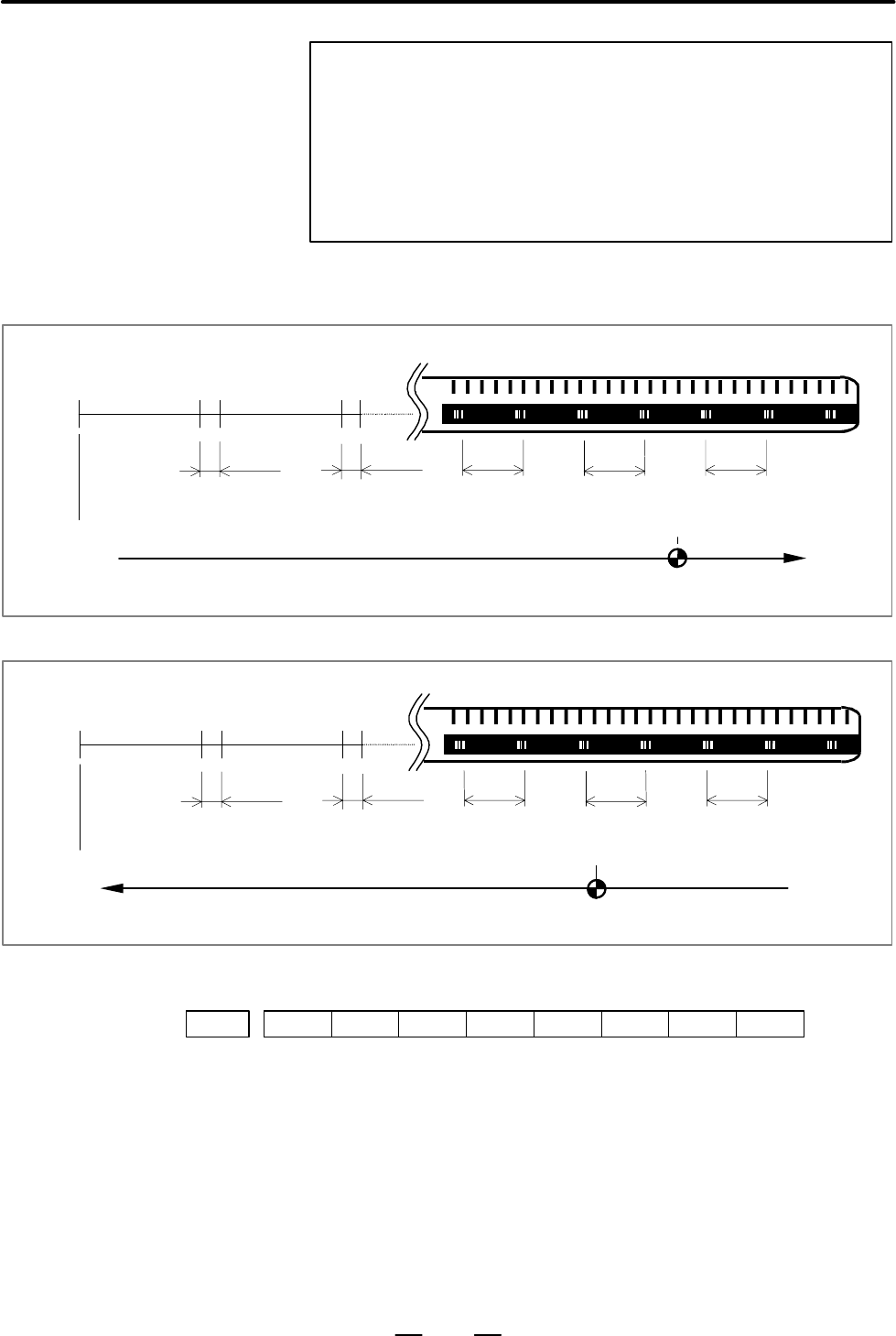

[Example]

When the parameter SCP is set to ”0”,

–

Reference point

Machine coordinate system

9.940 9.960 9.980

M2 M1 M2 M1

M1M2

M1 M 2

Mark1=Mark2

0.020

Scale zero

0.040

When the parameter SCP is set to ”1”,

–

Reference point

Machine coordinate system

9.940 9.960 9.980

M1 M2 M1 M2 M1

M1 M2M1

M1 M2

Mark1=Mark2

0.020

Scale zero

0.040

SOF8301

#6 #5 #4 #3 #2 #1 #0

[Data type] Bit

SOF The synchronization function in simple synchronous control (one pair) is:

0 : Not used.

1 : Used.
