0i/0i Mate - Model C Connection manual (Function) Page 666

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

9. SPINDLE SPEED FUNCTION

648

When rigid tapping is completed, the mode is canceled if a G code (such

as G80, canned cycle G code, or Group 01 G code) is issued.

The S command used during rigid tapping is automatically cleared when

rigid mode is cancelled. This reduces the spindle output to 0, placing the

system in the state in which the S0 command is specified. Cancel the

PMC rigid tapping mode at the falling edge of the ENB signal (ENB2

signal for 2nd spindle) by de-energizing the spindle; then turn off the rigid

tapping mode signal. The system goes to the next block after confirming

that the signal is off.

When gear change is performed using

SSTP and SOR, the ENB signal

can be either “1” or “0”. Do not cancel the PMC’s rigid tapping mode at

the falling edge of the ENB signal under these circumstances. The

position loop is also canceled.

When the CNC is reset, the PMC’s rigid tapping mode must be canceled.

When CRG (parameter No. 5200#2) is “1”, the system goes directly to the

next block without checking that the rigid tapping signal is “0”. Set CRG

to “1” for systems in which the rigid tapping signal is always “1”.

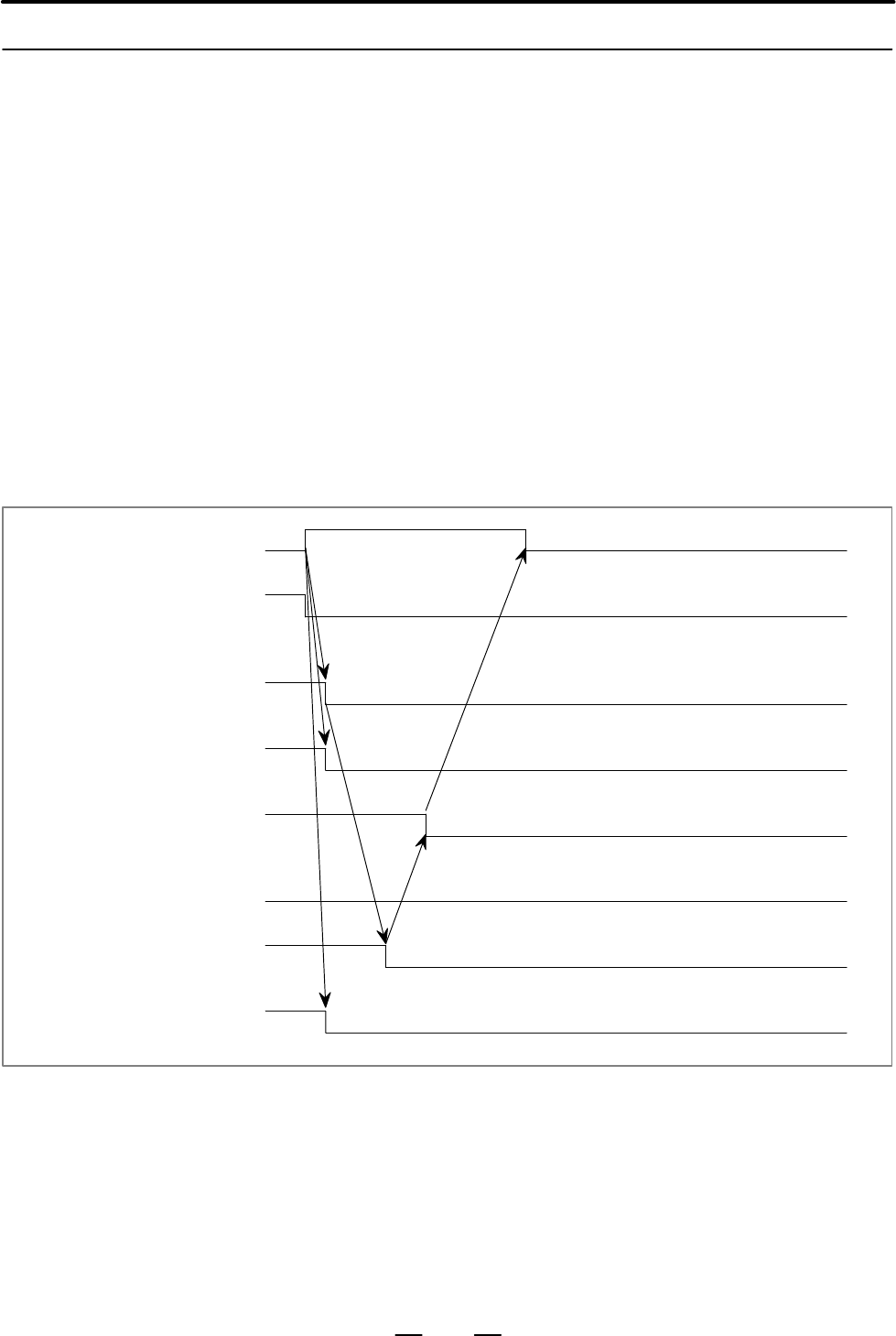

G80

(or G code of group 01)

RTAP

ENB (orENB2)

Spindle output

RGTAP

Rotation

Excitation

Position loop

9.10.7.4

Timing to cancel rigid

tapping mode
