B–64113EN–1/01

15. PMC CONTROL FUNCTION

1041

Read signal for external data input

(ESTB)

Read completion signal for external

data input (EREND)

Search completion signal for external

data input (ESEND)

Cycle start lamp signal

(ST)

Cycle start signal

(STL)

Automatic operation signal

(OP)

External reset signal

(ERS)

Reset signal

(RST)

NC reset

2nd command

Search command is kept.

2nd program execution

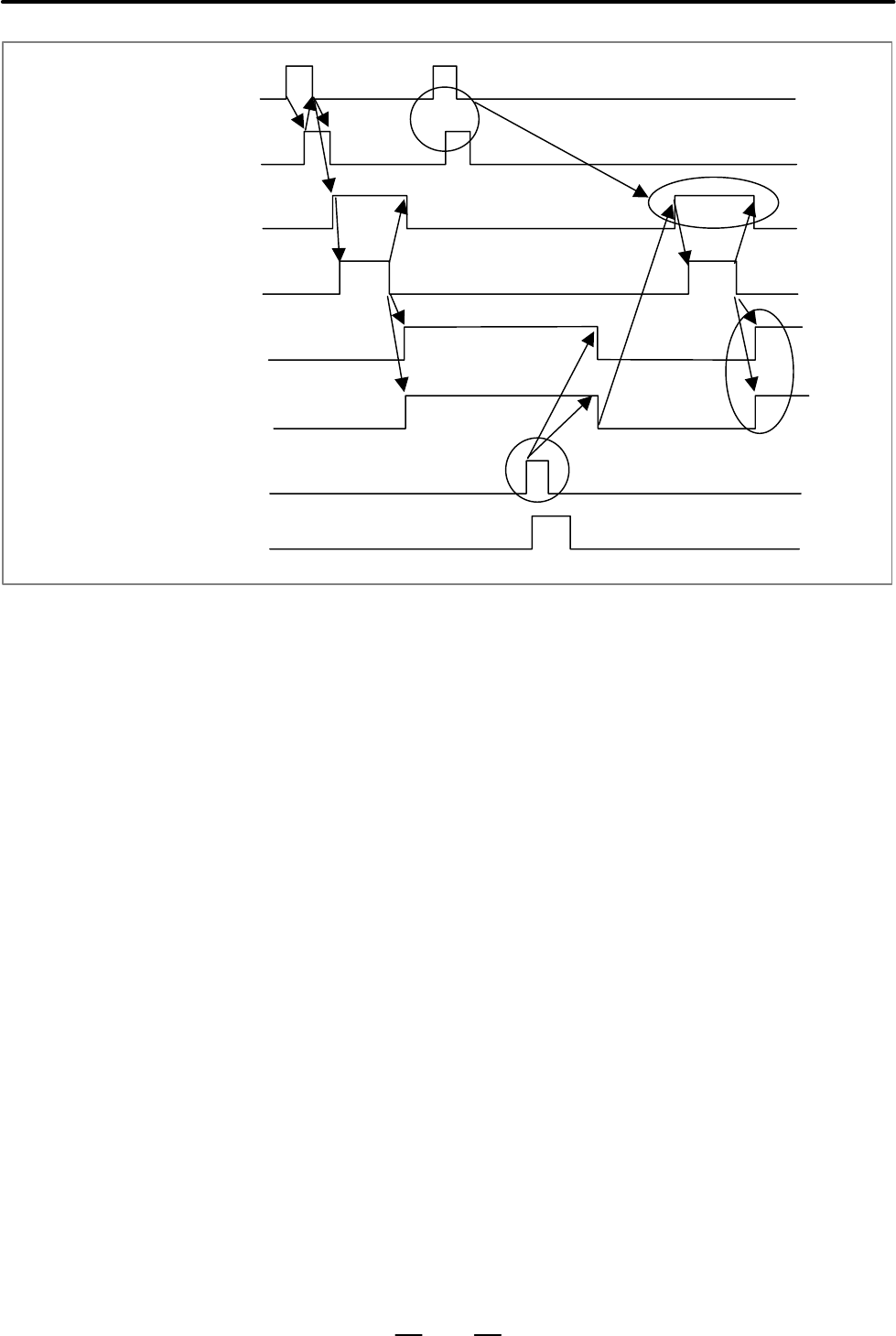

Fig. 15.2

These signals provide for changing the tool compensation amount via the

PMC. When the offset number is specified by a program, data input from

the PMC is added to the offset amount. The offset amount can also be used

as input data itself by specifying the input signal.

When the machine tool is equipped with automatic tools or workpiece

measuring functions, the offset amount can be corrected using this

function, by inputting the error from the correct value into the CNC via

PMC.

If the tool compensation amount is externally input when offset number

0 is specified in a program (a offset cancel) in T series, the workpiece

coordinate system shifts by the entered quantity. The external tool

compensation range is 0 - "7.999mm or "0.7999 inch at a time.

2) External tool

compensation
