0i/0i Mate - Model C Connection manual (Function) Page 233

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

4. REFERENCE POSITION ESTABLISHMENT

215

For details about this signal, see 3.1, “Feed Axis and Direction Selection

Signal”. Only notes on use of reference position return are given, here.

NOTE

The direction of reference position return is set for each axis

by parameter ZMI (No. 1006#5). If the tool is fed opposite

to the preset direction in manual reference position return,

while the deceleration signal is “0”, the tool feeds until the

signal returns to “1”. The reference position return is then

performed automatically in the predetermined direction.

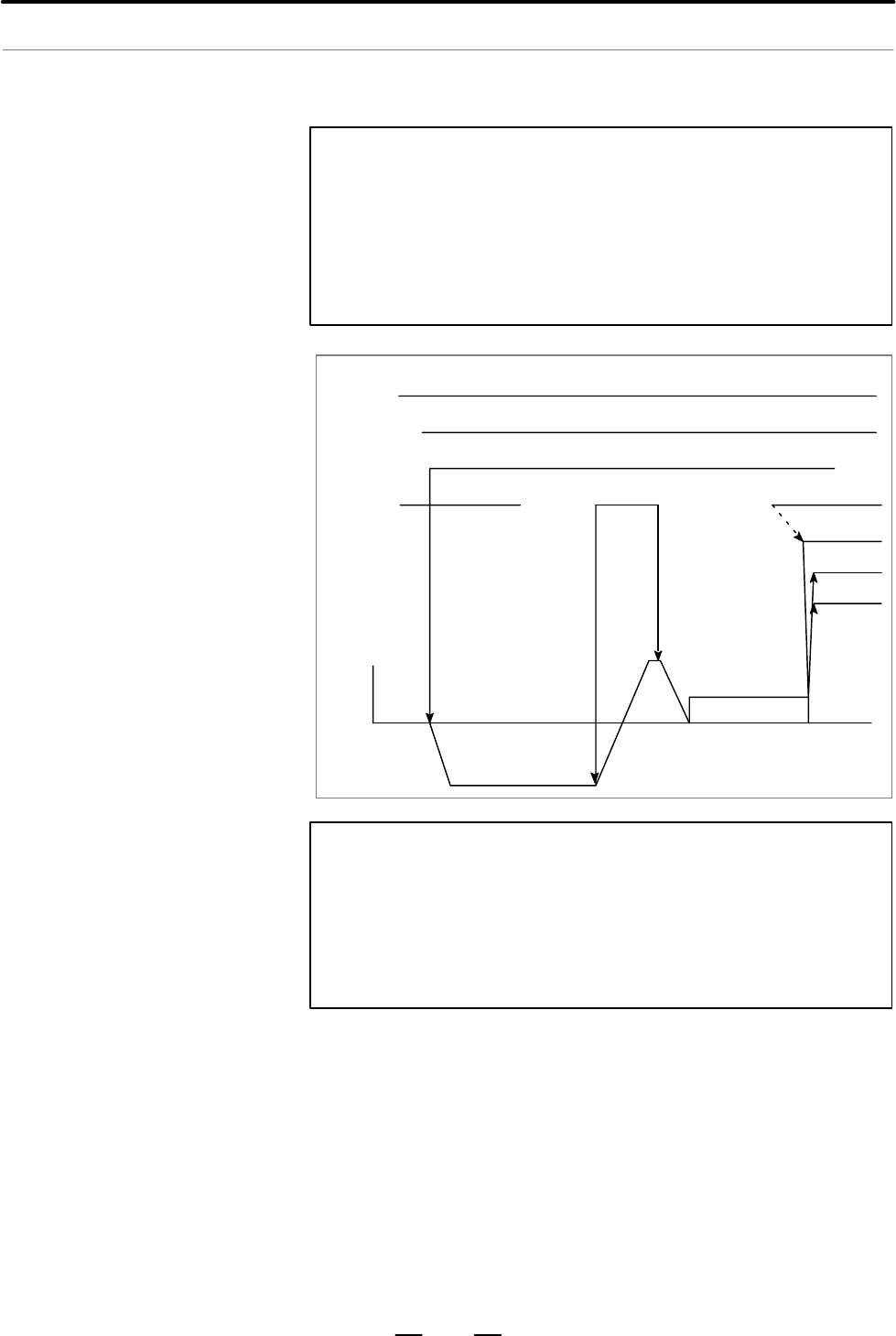

ZRN

–J1

*DEC1

Grid

ZP1

ZRF1

Feedrate

Rapid traverse rate

FL rate

. . . . . . . . . . . . . . . . . . . . .

JOG mode or TEACH IN

JOG mode

Rapid

traverse

rate

NOTE

When reference position return is selected, an axis who has

already completed referencing movement along that axis is

disabled while the reference position return selection signal

(ZRN) is “1”. To perform movement again, ZRN must be set

“0”, and the feed axis and direction selection signal must be

reset to “0” and then returned to “1” again.

Feed Axis and Direction

Selection Signal
