0i/0i Mate - Model C Connection manual (Function) Page 424

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

406

This function automatically controls the feedrate during corner

machining according to the angle of a corner made by machining blocks

or according to the feedrate difference for each axis.

This function is enabled when deceleration of the first of two consecutive

cutting feed blocks is executed.

Feedrate control can be performed according to the angle of a corner made

by machining blocks or according to the feedrate difference for each axis.

The desired method is selected by specifying the corresponding value in

the CSD bit (bit 4 of parameter No. 1602).

If the angle made by blocks A and B is smaller than that specified in parameter

No. 1740 (for the selected plane), and if the feedrates along the first and second

axes on that plane are lower than that specified in parameter No. 1741, the

system executes block B, assuming that no pulses are accumulated.

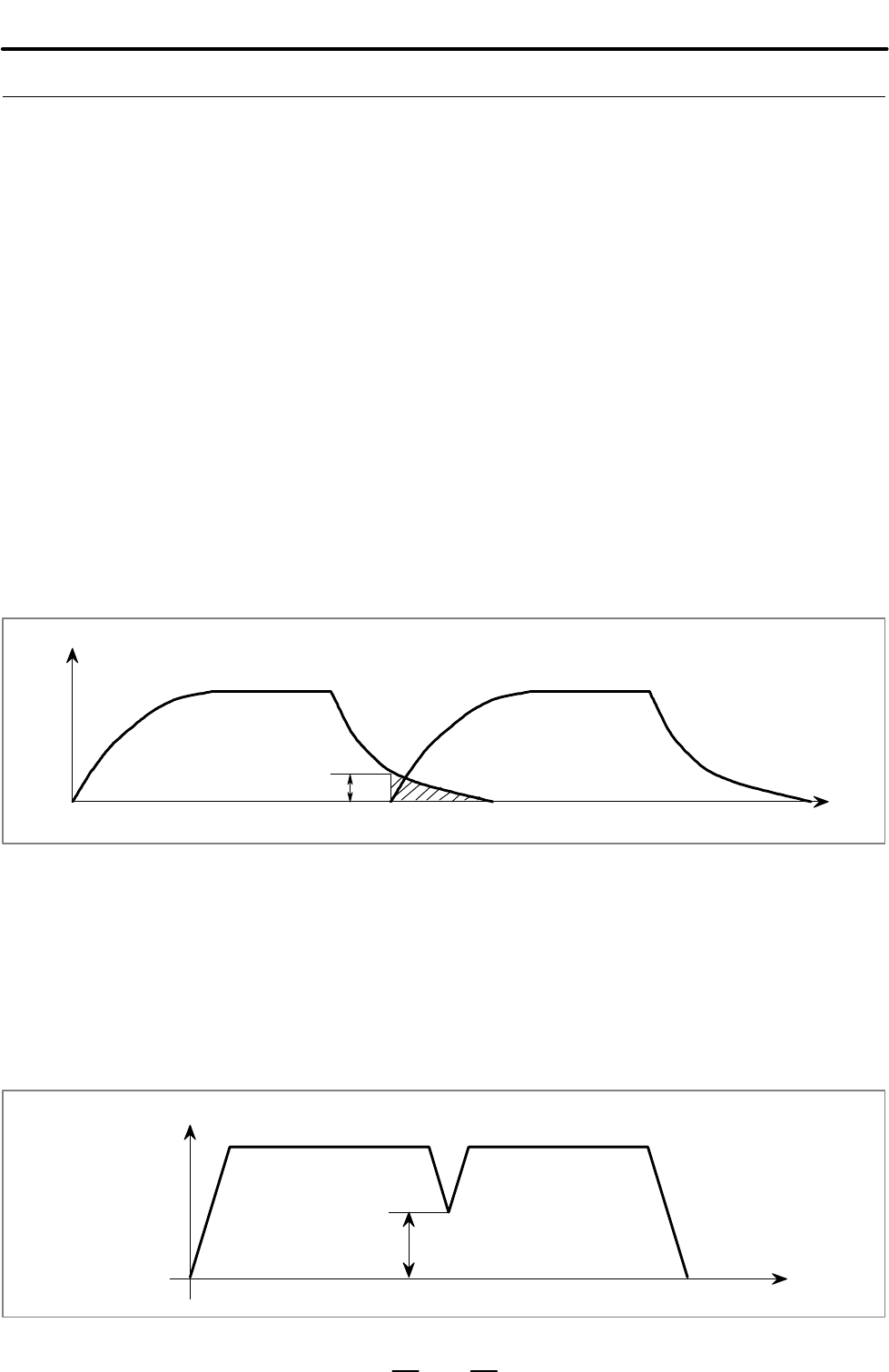

The figure shows the relationship between feedrate and time when a

corner angle is smaller than the angle specified in the parameter.

At time t, some accumulated pulses remain, as indicated by the shaded

part. The system, however, starts the next block because the feedrate of

the automatic acceleration/deceleration circuit is lower than that specified

in the parameter.

Time

Feedrate specified in

parameter No. 1741

Feedrate

Block A

Block B

@ When linear acceleration/deceleration before interpolation for

cutting feed is enabled

If the angle made by blocks A and B is smaller than that specified in

parameter No. 1740 (for the selected plane), and if the feedrates

programmed for blocks A and B are higher than the value set in parameter

No. 1778, the feedrate is reduced to the value specified in the parameter

in block A. In block B, the feedrate is increased to the programmed

feedrate. The rate of acceleration depends on the parameter for linear

acceleration/deceleration before interpolation for cutting feed.

Speed

Block A Block B

Time

Speed set by

parameter

(No. 1778)

Automatic Corner

Deceleration

D Feedrate control

according to corner

angle
