0i/0i Mate - Model C Connection manual (Function) Page 483

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

465

The bell–shaped acceleration/deceleration after cutting feed interpolation

provides smooth acceleration and deceleration to reduce stress and strain

on the machine. If this function is enabled (bit 1 of parameter No. 1610,

CTB), acceleration/deceleration is performed as follows:

Cutting feed: Bell–shaped acceleration/deceleration (constant accel-

eration time)

Specify the acceleration/deceleration time constant for

each axis in parameter No. 1622.

Jog feed: Exponential or bell–shaped acceleration/deceleration

(constant acceleration time)

Specify the acceleration/deceleration time constant for

each axis in parameter No. 1624.

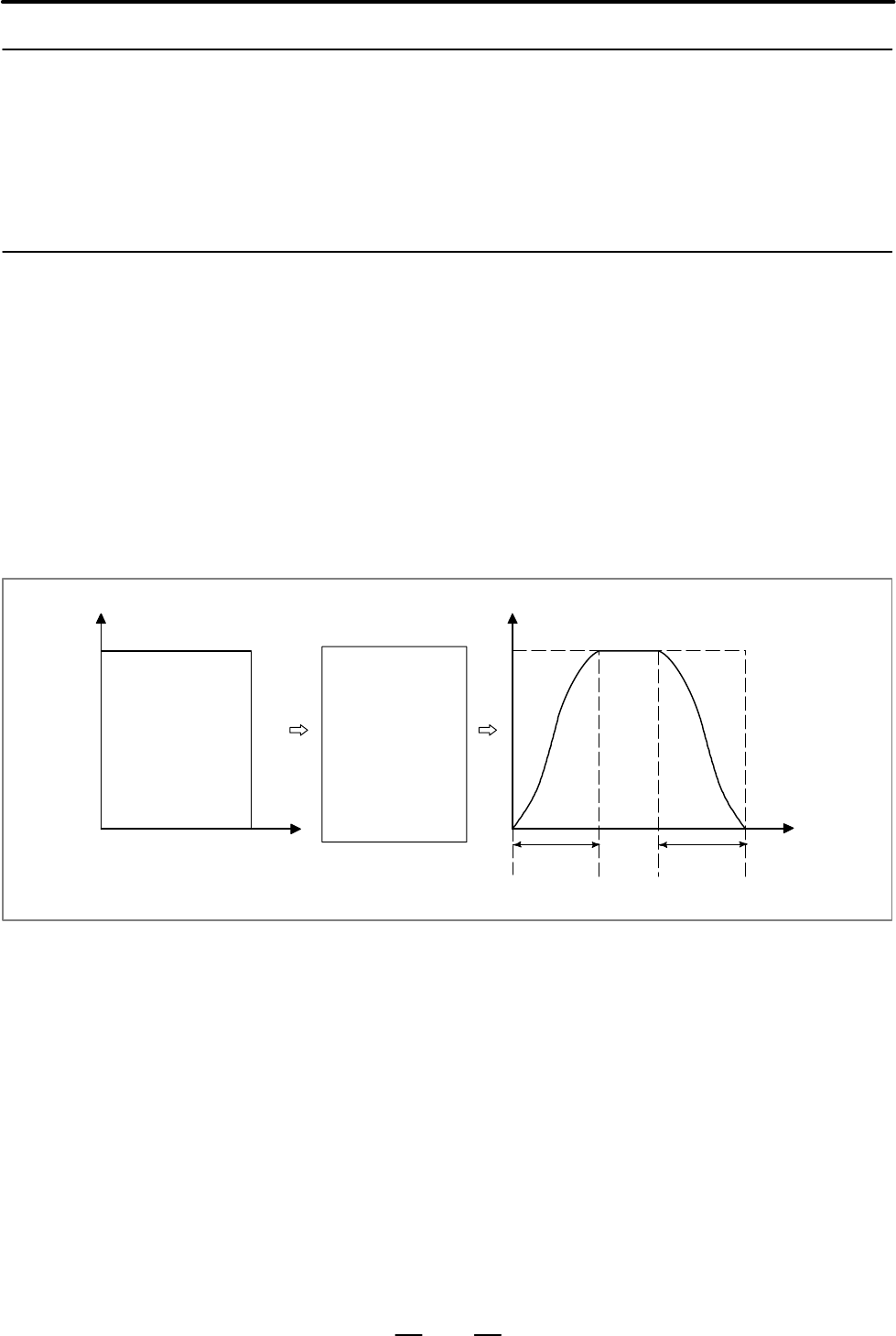

Acceleration/

deceleration

function

Speed

Time Time

Bell–shaped Acceleration/

Deceleration

T:Time Constant

Bell–shaped acceleration/deceleration after cutting feed interpolation is

an optional function. This function is enabled when the CTB bit (bit 1 of

parameter No. 1610) is specified. The time constants for cutting feed and

for jog feed for each axis are specified in parameter Nos. 1622 and 1624

respectively, in the same way as exponential acceleration/deceleration.

The values specified for the FL feedrate for cutting feed (parameter No.

1623) and the FL feedrate for jog feed (parameter No. 1625) are ignored

(always assumed to be 0).

7.2.4

Bell–Shaped

Acceleration/

Deceleration after

Cutting Feed

Interpolation

General
