0i/0i Mate - Model C Connection manual (Function) Page 242

Connection manual (Function)

Page of 1224

/ 1224

4. REFERENCE POSITION ESTABLISHMENT

B–64113EN–1/01

224

+J1 or –J1

Grid

ZP1

ZRF1

Feedrate

Manual reference

position return

mode

FL rate

.....

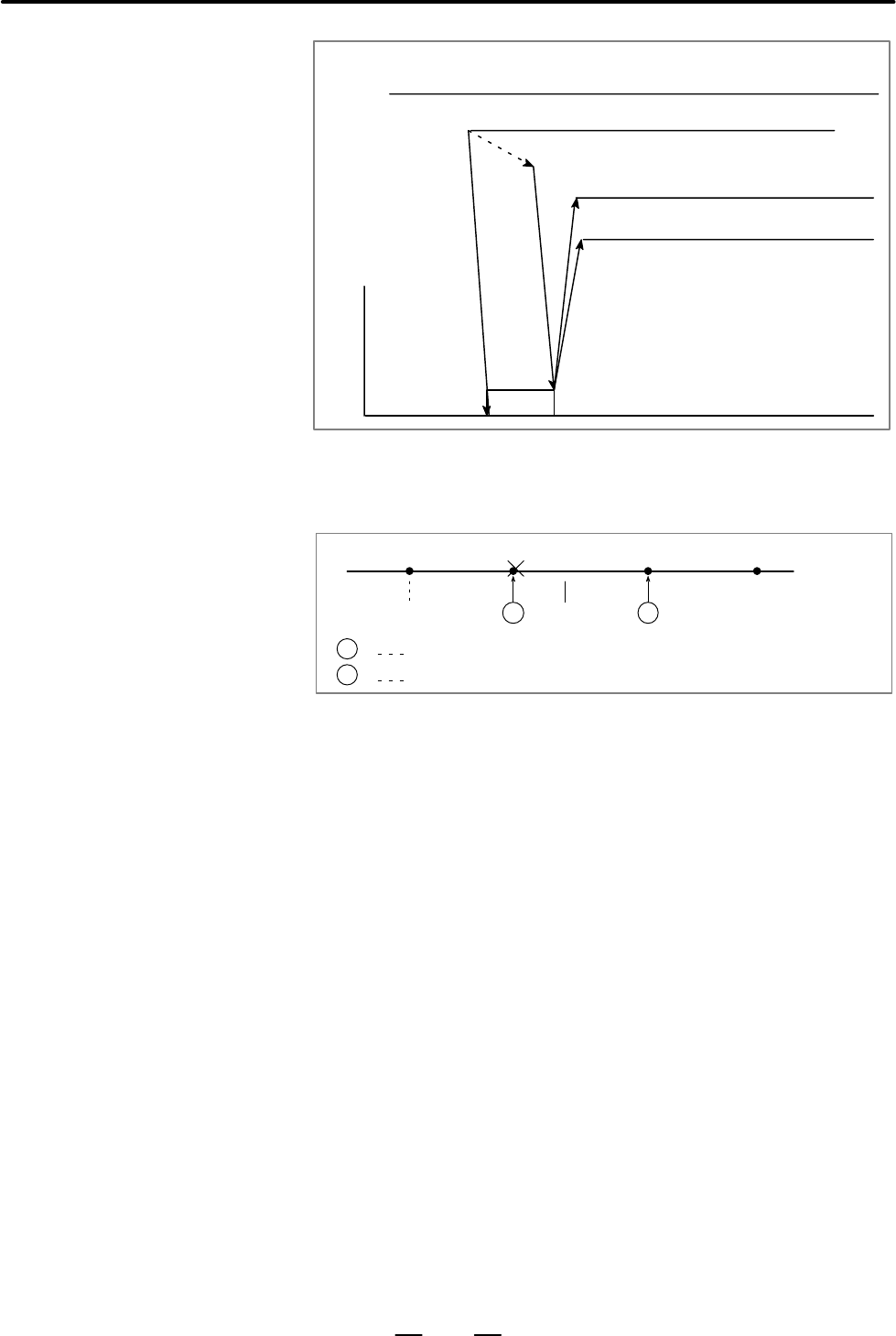

The following figure shows the positional relation between the reference

position and the point to which the tool is positioned by manual

continuous feed.

Grid

– direction

Position

after jog feed

+ direction

Reference position for reference position return in the negative direction

Reference position for reference position return in the positive direction

To set the reference position without dogs, when the reference position

has not yet been established. The tool must be fed, in manual continuous

feed mode, in the reference position return direction at such a speed that

the servo position error exceeds the value set in parameter No. 1836. The

tool must cross the grid line corresponding to a one–rotation signal from

the position detector.

Section 4.1 explains how to calculate the servo position error.

To shift the reference position, the grid can be shifted by the distance set

in parameter No. 1850. The grid shift to be set in the parameter must not

exceed the reference counter capacity (parameter No. 1821).

When the feed axis and direction selection signal is set to 1 in manual

reference position return mode after the reference position has been

established, the tool is positioned to the reference position regardless of

the direction specified by the feed axis and direction selection signal. The

completion signal for reference position return is then set to 1.

Servo position error and

one–rotation signal

Grid shift

Reference position

return
