0i/0i Mate - Model C Connection manual (Function) Page 327

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

5. AUTOMATIC OPERATION

309

When rigid tapping is stopped, either as a result of an emergency stop or

a reset, the tap may cut into the workpiece. The tap can subsequently be

drawn out by using a PMC signal. This function automatically stores

information relating to the tapping executed most recently. When a tap

retraction signal is input, the tap is removed from the hole, based on the

stored information. The tap is pulled toward the R point. When a retract

value α is set in parameter No. 5382, the retraction distance can be

increased by α.

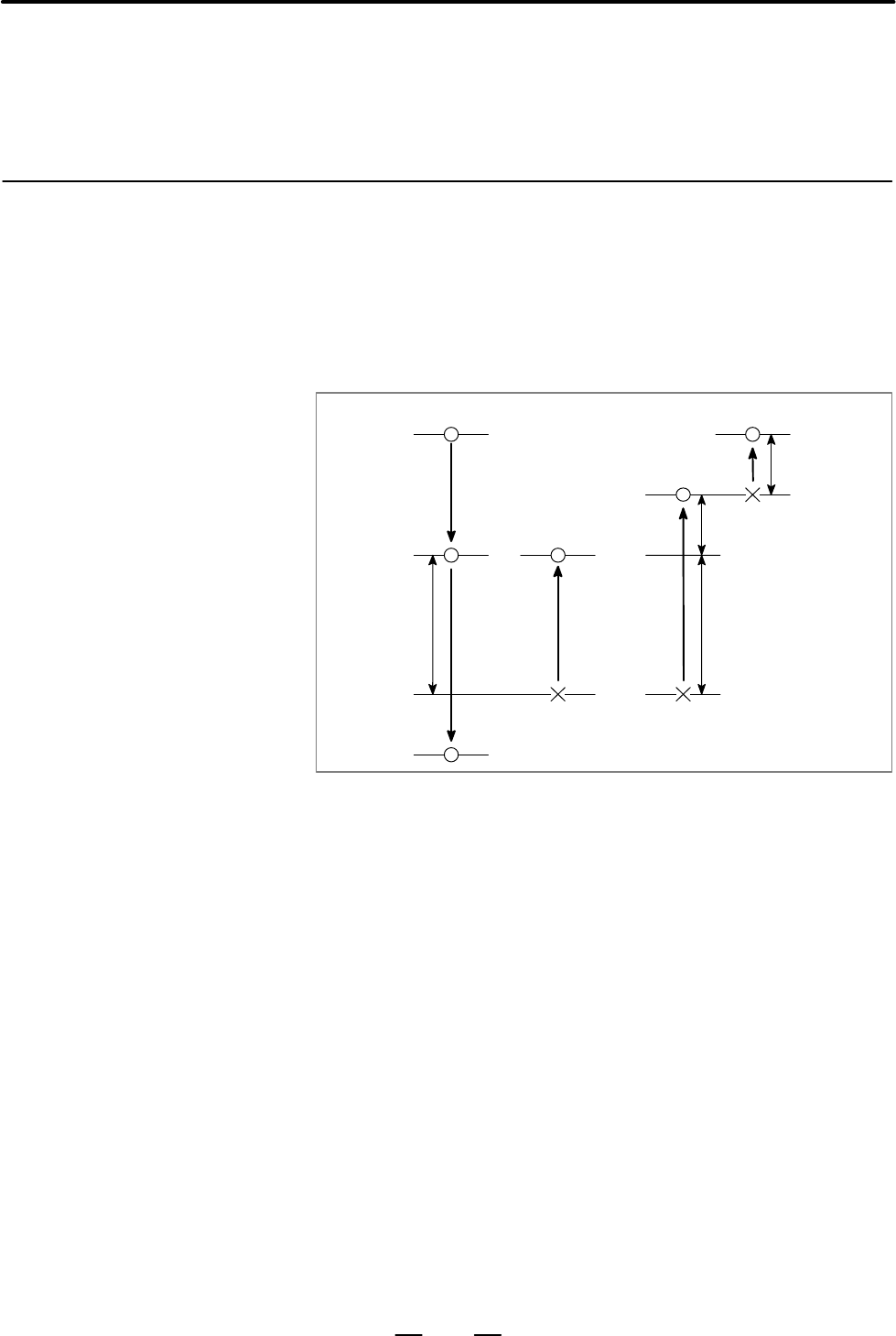

Initial point

R point

Z point (α=0)

Center of

tapping

Retract

completion

point

(when α is set)

2nd return

completion

point

1st return

completion

point

(1)Start

Reset the CNC, then select MDI mode. Setting rigid tapping retraction

start signal RTNT to “1” starts rigid tapping retraction.

(2)Completion

Upon the completion of rigid tapping retraction, rigid tapping

retraction completion signal RTPT is set to “1”, with which the CNC

automatically enters the reset state. Setting rigid tapping retract start

signal RTNT to “0” sets rigid tapping retraction completion signal

RTPT to “0”.

(3)Stop

During rigid tapping retraction, setting rigid tapping retraction start

signal RTNT to “0” stops rigid tapping retraction, placing the CNC in

the reset state. To resume rigid tapping retraction, set rigid tapping

retraction start signal RTNT to “1”. Rigid tapping retraction can also

be stopped by means of a reset or feed hold.

5.11

RETRACTION FOR

RIGID TAPPING

(M SERIES)

General

Basic procedure
