12. DISPLAY/SET/EDIT

B–64113EN–1/01

860

START UP lets you specify the minimum required parameters for

machine launching.

Let us explain the AXIS SETTING and MISCELLANY items. For

detailed descriptions about the FSSB (AMP), FSSB (AXIS), and SERVO

SETTING items, refer to the respective manuals.

The minimum required CNC parameters for machine launching are

collected and subdivided into some groups. They are displayed in groups

as follows:

AXIS SETTING item

(BASIC) group: Parameters related to basic setting are

displayed.

(COORDINATE) group: Parameters related to coordinates are

displayed.

(FEED RATE) group: Parameters related to feedrate are displayed.

(ACC./DEC.) group: Parameters related to acceleration/deceleration

are displayed.

MISCELLANY item

(MISC) group: Parameters related to DI/DO and serial spindle

settings are displayed.

A brief help message corresponding to a parameter selected with the

cursor is displayed.

If a standard value (recommended by FANUC) is available for the

parameter, it is also displayed.

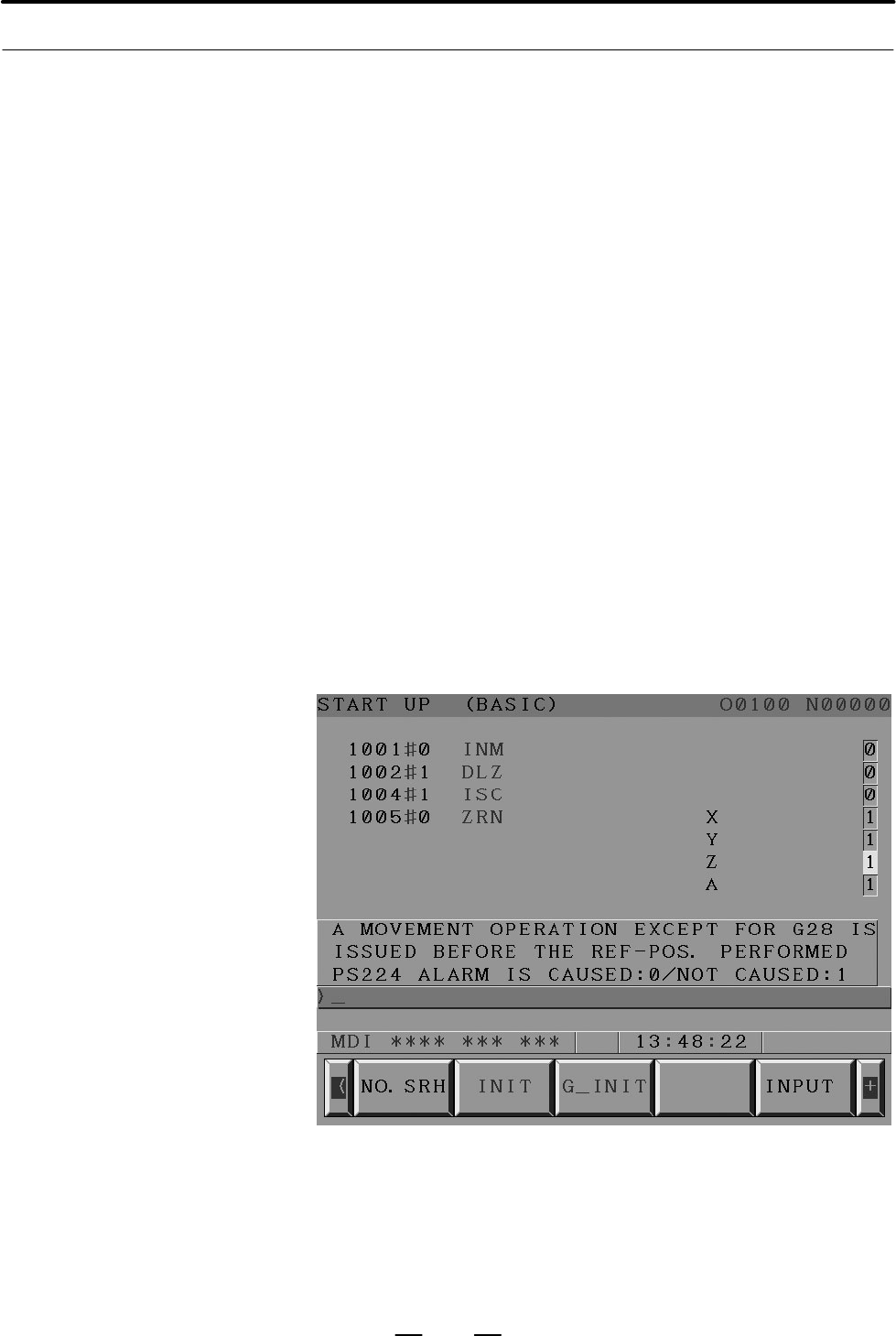

START UP

Screen displays
