0i/0i Mate - Model C Connection manual (Function) Page 1104

Connection manual (Function)
17. PCMCIA ETHERNET FUNCTION
B–64113EN–1/01
1086

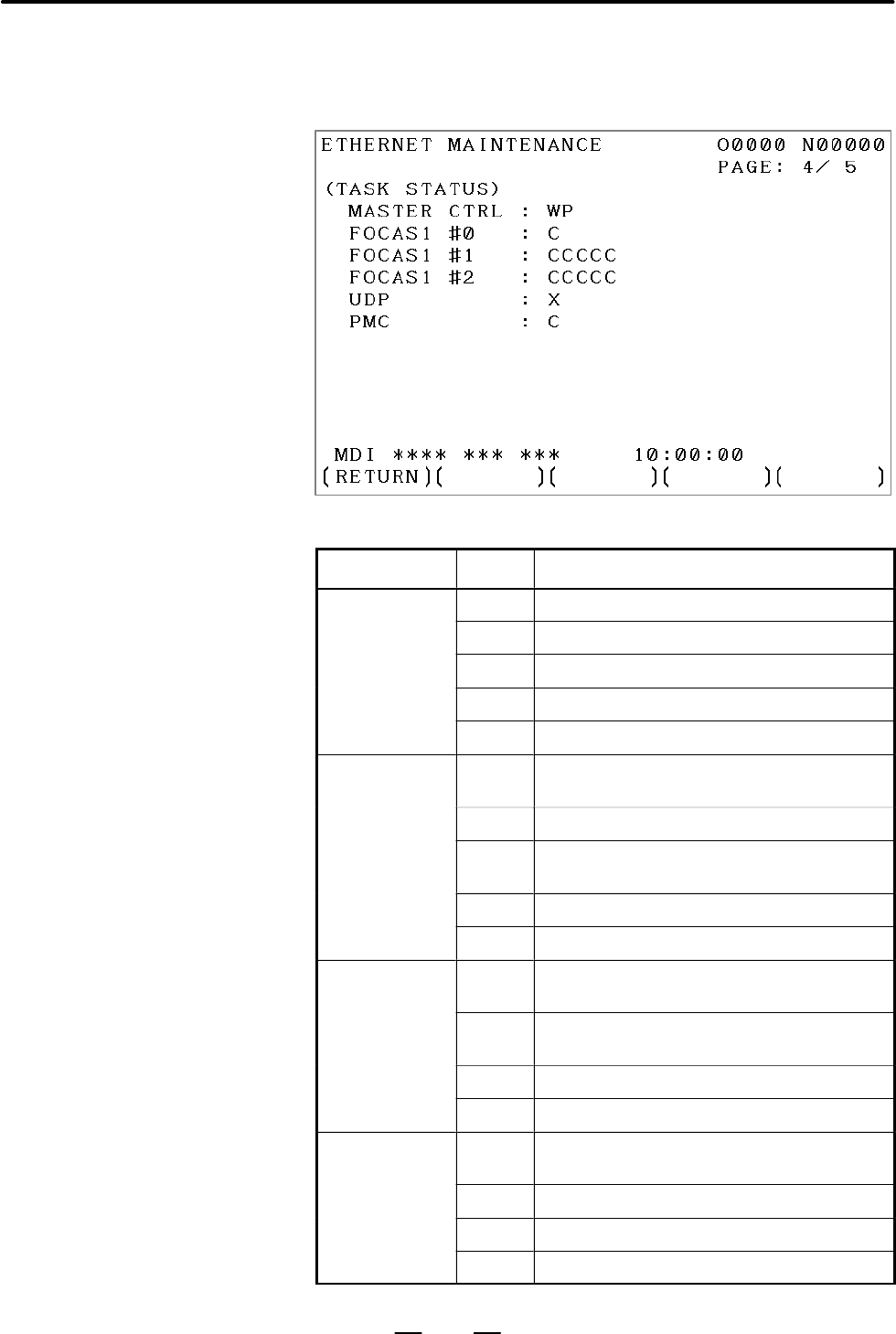

8 The screen below is used to check the state of each task of the PCMCIA
Ethernet function.
Symbol Meaning
MASTER CTRL
E Ethernet controller being initialized
D Data being processed(NOTE)
W Waiting for data processing(NOTE)
P Waiting for parameter setting
S Parameters being set
FOCAS1 #0
X Waiting for completion of Ethernet controller
initialization
E Being activated
C Waiting for connection from the personal com-
puter
O Connection being processed
N FOCAS1/Ethernet execution disabled
FOCAS1 #1,#2
X Waiting for completion of Ethernet controller
initialization
C Waiting for connection from the personal com-
puter
D Data being processed(NOTE)
W Waiting for data processing(NOTE)
UDP
X Not executed yet. Waiting for completion of
Ethernet controller initialization.
E Being activated
D Data being processed(NOTE)
W Waiting for data processing(NOTE)
