18. TROUBLE DIAGNOSIS
B–64113EN–1/01
1114

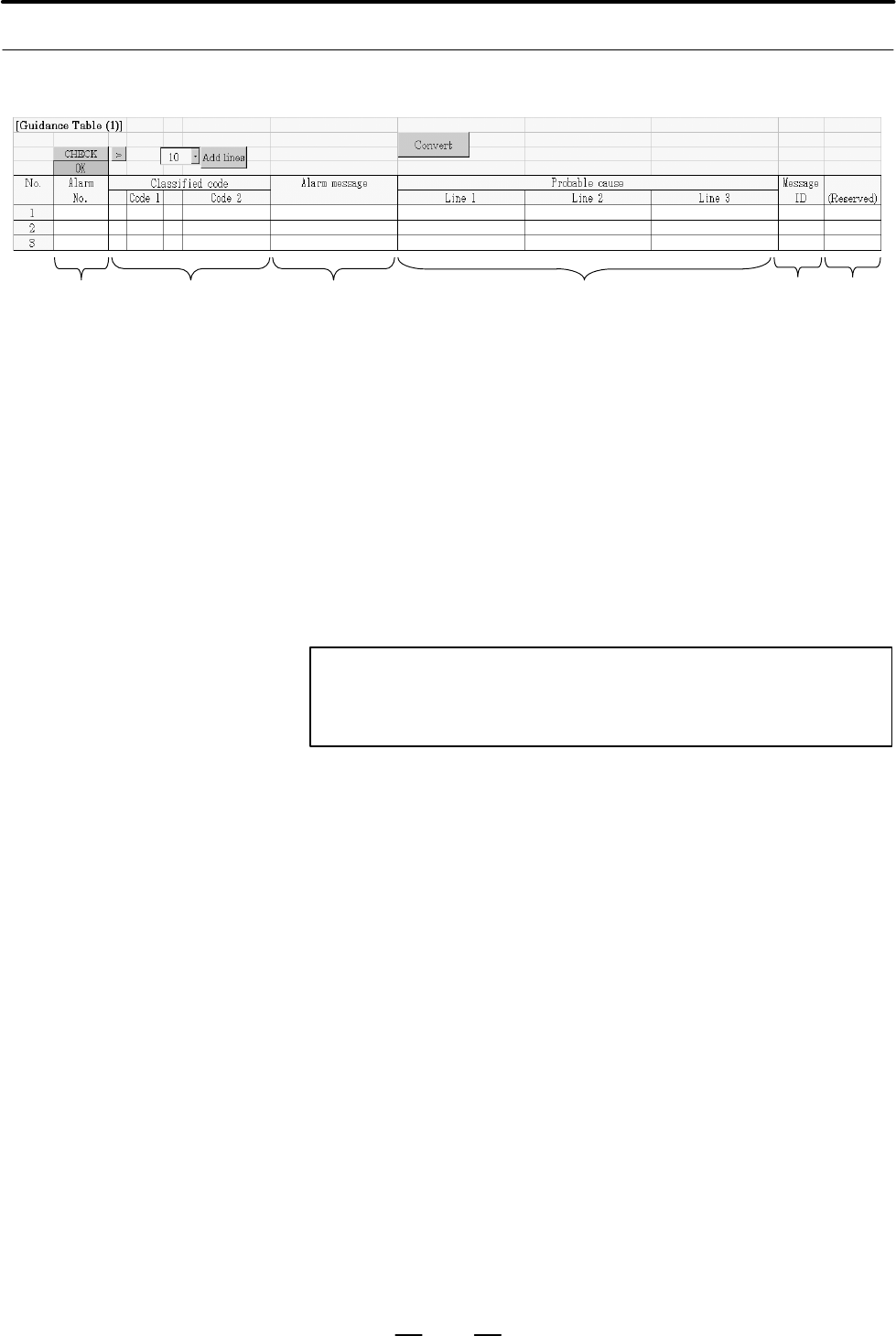

Alarm No., Classified code, Alarm message, Probable cause and etc. are
registered into a guidance table (1).
(a)
(b) (c) (d) (e) (f)
(a) Alarm No.
Input alarm numbers of the external alarm message or the macro alarm.
Max 5 figures (Range: 0–65535).
Ex.) In case of the external alarm message alarm No.1000
”1000”
(b)Classified code
Two codes (Code 1 and Code 2) are available.
These codes are displayed at 1st line on the trouble diagnosis guidance
screen as ”[Code 1] – [Code 2]”.
S Code 1
Input the type of the alarm and so on.
Max 2 characters.
CAUTION
A character string ”NC” is reserved as the code 1 of CNC
alarm. Do not use ”NC” as the code 1.
S Code 2
Input the alarm No. and so on.
Max 16 characters.
(c) Alarm message
Max 32 characters * 1 line.
It is displayed at 2nd line on the trouble diagnosis guidance screen.
(d)Probable cause
Max 32 characters * Max 3 lines.
It is displayed at the part of ”PROBABLE CAUSE” on the trouble
diagnosis guidance screen.
(e) Message ID
A Message ID specifies a guidance message which should be
displayed at first when an alarm occurs.
Max 6 characters with capital letters.
Ex.) In case of the first guidance message for the external alarm
message alarm No.1000
”1000A”
Please refer to ”2.2 Making a guidance table (2)” about the message
ID and the guidance message.
(f) (Reserved)
Please input nothing at this item.
Making a guidance table
(1)
Input items
Previous page
Next page
