B–64113EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

450

4 As acceleration after interpolation, use linear or bell–shaped

acceleration. Exponential acceleration/deceleration cannot be used.

For smooth machining, the CNC reads the next NC statement in advance.

This operation is referred to as buffering. In the AI advanced preview

control mode, not only the next statement but also multiple blocks are

buffered.

However, a macro statement such as an expression and conditional branch

is processed immediately after it is buffered (read into the buffer). So, the

timing of macro statement execution does not necessarily follow the

specified sequence.

On the contrary, a block where M00, M01, M02, M30, or an M code set

in a parameter (No. 3411 to 3432) for suppressing buffering is specified,

or a block where a G code such as G53 for suppressing buffering is

specified does not read subsequent blocks in advance. So, it is guaranteed

that until the execution of such an M code or G code is completed, no

subsequent macro statement is executed.

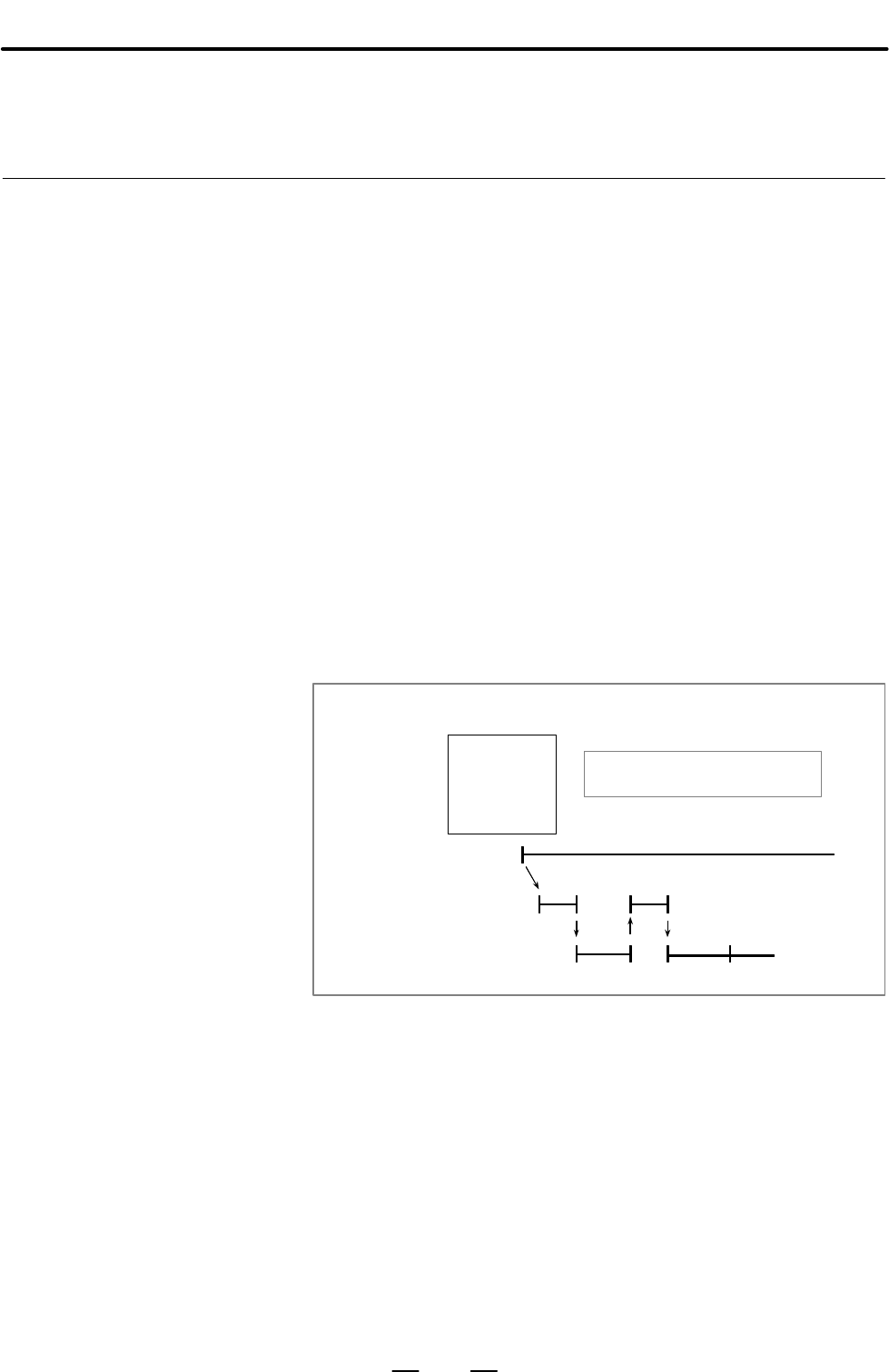

> N1 G01 G91 X50.0 Y30.0 F100 ;

N2 #1=100 ;

N3 X100.0 ;

N4 #2=200 ;

N5 Y50.0 ;

N2 N4

N3 N5 N6

> : Block being executed

j : Block read into the buffer

NC statement execution

Macro execution

Buffer

In the AI advanced preview control or AI contour control mode, multiple

blocks are read in advance. So, during execution of N1, up to 40

blocks/20 blocks (0i) or 12 blocks (0i Mate) of NC statements are read

into the buffer. The macro statements (N2, N4) are processed while N1

is being executed.

So, the sequence of NC statement and macro statement execution differs

from the programmed sequence.

Notes on using custom

macros

Macro statement

processing

Details of NC statement

and macro statement

execution
