18. TROUBLE DIAGNOSIS
1115
S [Check] button
When [CheckECK] button is pushed, a range of number, a number of
characters and invalid character codes are checked.
Alarm numbers are checked if they are within 0–65535. But alarm
numbers in the external alarm message and the macro alarm are
actually available.
If the result is OK, a string of the cell under the button is changed from
”Unchecked” to ”OK”. If the result is NG, the string is changed to
”NG”. And the cell color becomes green. And a comment, which can
display the cause of error, is added to the cell.

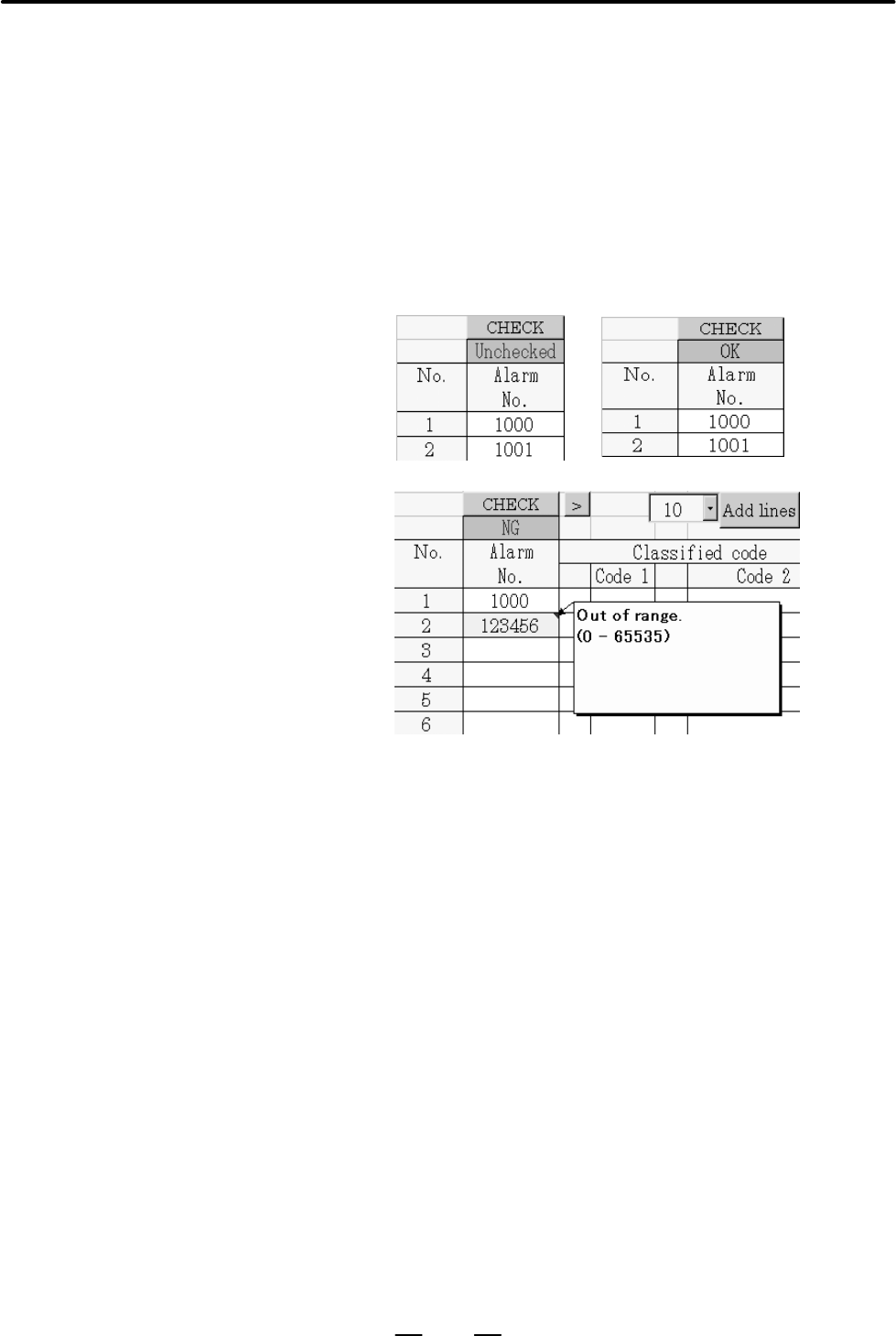

Ex.)
S [Add lines] button
Please push [Add lines] button in order to increase the number of
alarms.
The number is specified in a cell on the left side of the button.
S [Convert] button
When [Convert] button is pushed, both guidance tables (1) and (2) on
the Excel sheet are converted to the text type data.
Please refer to ”2.3 Converting from an Excel file to a memory card
file.”
S [>] button
WhenECK [>] ECKbutton is pushed, the guidance table (2) is
displayed.
Operation of buttons
Previous page
Next page
