0i/0i Mate - Model C Connection manual (Function) Page 1094

Connection manual (Function)
17. PCMCIA ETHERNET FUNCTION
B–64113EN–1/01
1076
This section describes the setting of the parameters for the PCMCIA
Ethernet function for the Series 0i–C.
On the Ethernet parameter setting screen, set the parameters.
Display
1 Place the CNC in the MDI mode.
2 Press the function key
SYSTEM
.
3 Press the continuous menu key at the right end of the soft key display.

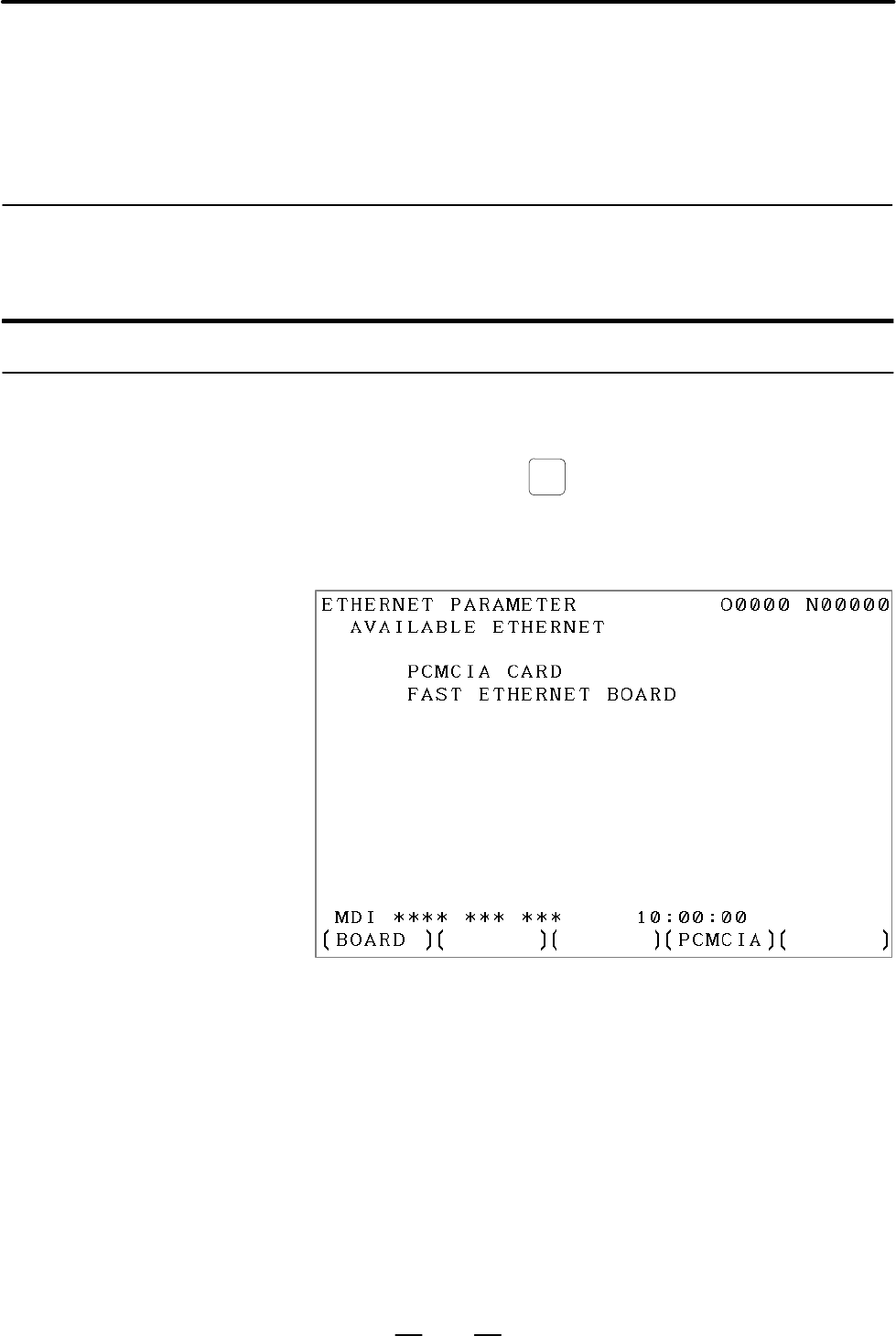

4 Press the [ETHPRM] soft key. The Ethernet parameter setting screen
appears. The Ethernet functions currently available are displayed
The upper row displays ”PCMCIA CARD.”
The lower row displays the usable Ethernet option boards. When no
option board is installed, no information is displayed.
5 By pressing the [PCMCIA] soft key, the parameters for the PCMCIA
Ethernet card can be set.
6 By using the MDI keys and soft keys, enter and update data.
17.2
SETTING THE
PCMCIA ETHERNET
FUNCTION
17.2.1
Ethernet Parameter
Setting Screen
Procedure
