4. REFERENCE POSITION ESTABLISHMENT

B–64113EN–1/01

250

(1)In the following case, P/S090 alarm occurs.

(a) The actual interval of reference marks is different from parameter

setting value.

(2)In this procedure, the axis does not stop until three or four reference

marks are detected. If this procedure is started at the position near the

scale end, CNC can not detect three or four reference marks and the

axis does not stop until over travel alarm occurs. Please care to start

at the position that has enough distance from scale end.

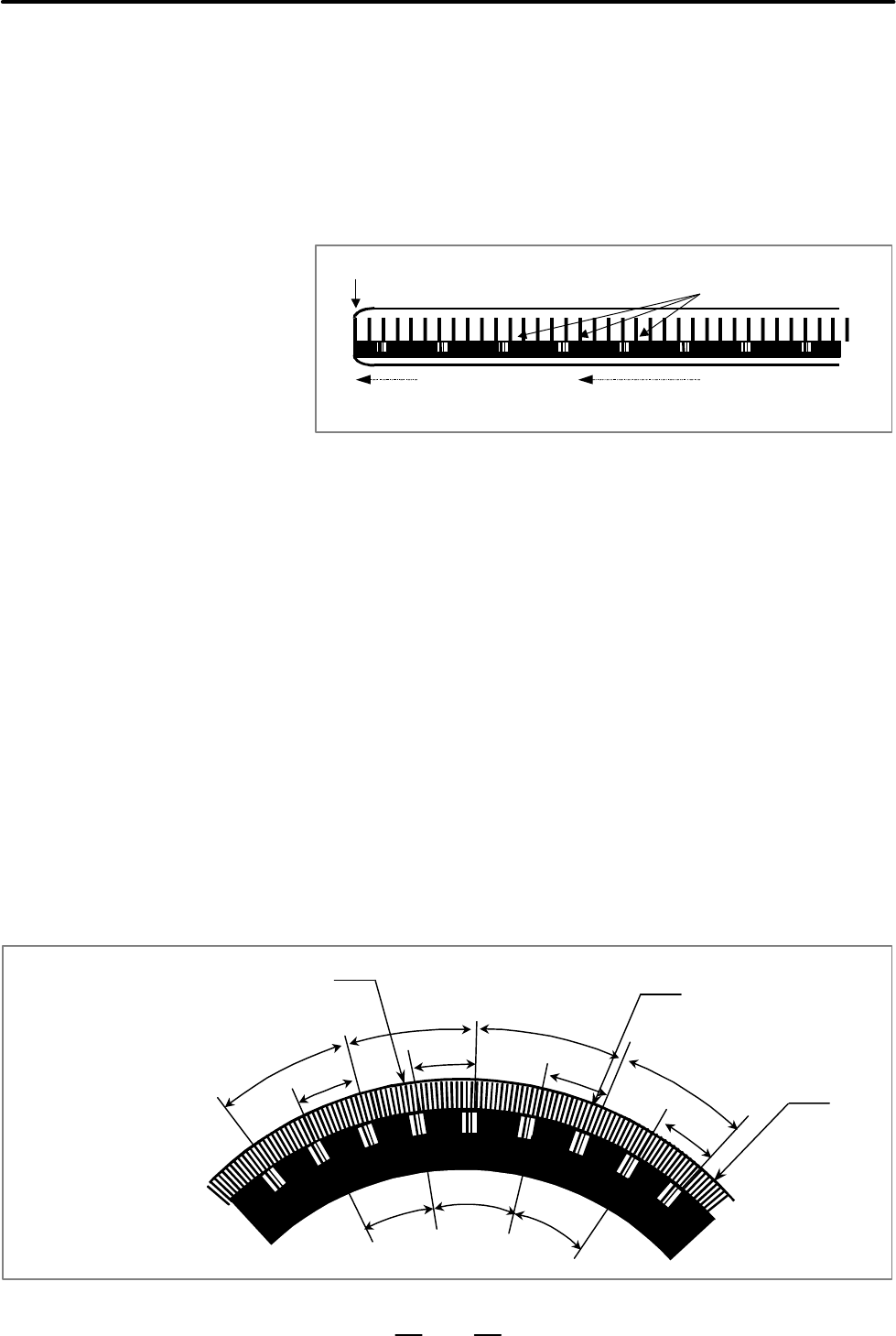

Scale end

Reference mark

Start point (Bad)

Start point (Good)

(3)In the following cases, this function does not perform.

(a) Parameter No.1821(mark1 interval) or No.1882(mark2 interval) is

”0”.

(b)The setting value of parameter No.1821 and No.1882 are the same.

or No.1882 value w No.1821 value*2

(4)Rotary encoder with absolute address referenced mark (A/B phase)

(a) When the rotary encoder with absolute address referenced mark

(A/B phase) is used, please set a parameter No.1815#3 (DCR) to

”1”.

In case of rotary encoder with absolute address referenced mark

(A/B phase), the marker interval may be different from parameter

setting value. (a–b section of the following figure) When the

reference point return is executed through this section, it is not able

to establish the reference point. Therefore, in case of rotary encoder

with absolute address referenced mark (A/B phase), if the reference

point return is started for B point from A point of below figure, the

reference point is not established yet at B point. The reference point

return is re–started for C point. The reference point return

procedure is finished at C point.

9.64_

9.98_

9.96_

19.66_

20.02_

9.94_

20.00_

20.02_ 20.02_

20.00_

Note
