0i/0i Mate - Model C Connection manual (Function) Page 458

Connection manual (Function)
B–64113EN–1/01
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
440

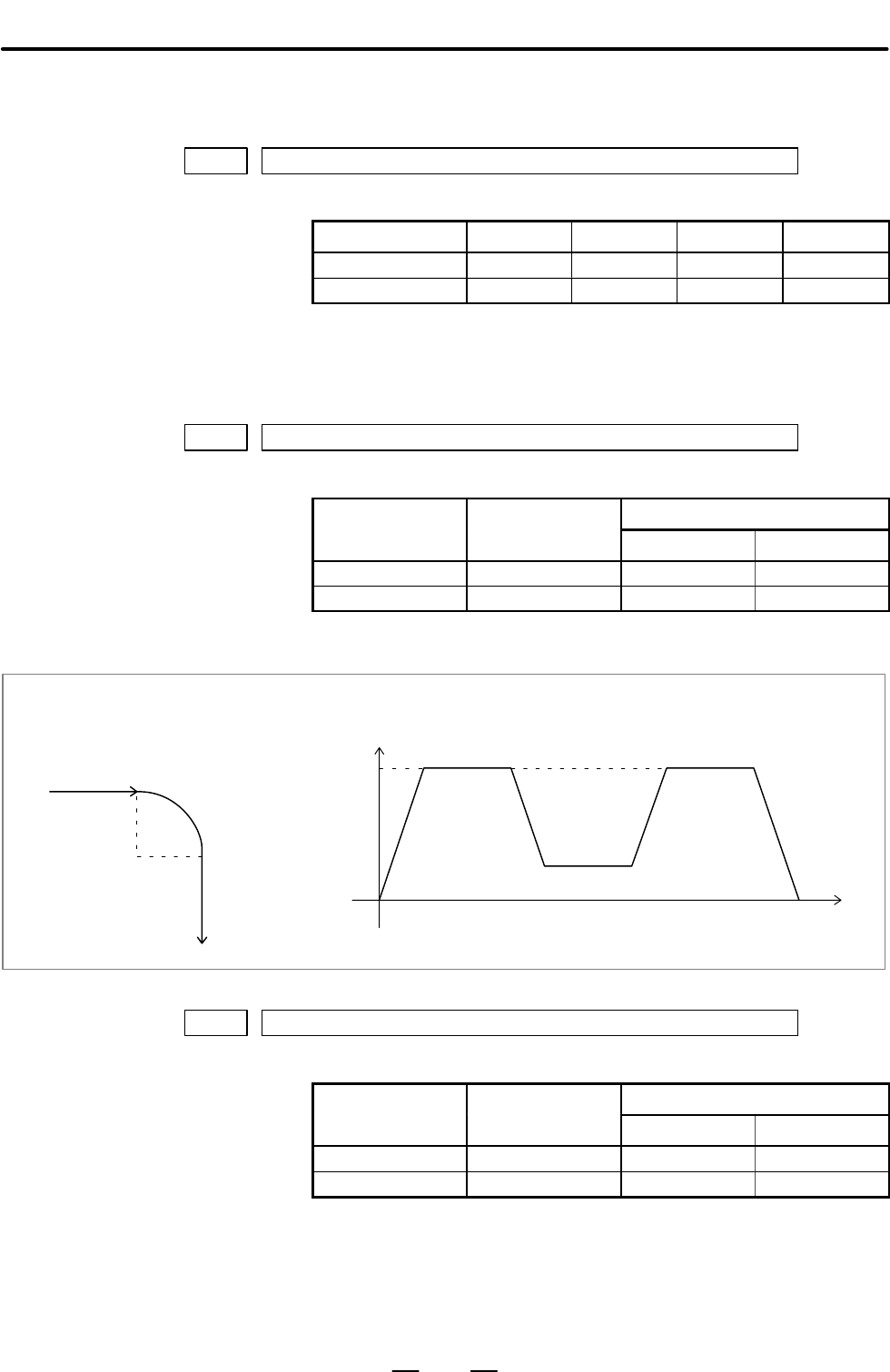

1731 Arc radius for the upper limit imposed on feedrate
[Data type] 2–word
Increment system IS–A IS–B IS–C Unit
Metric input 0.01 0.001 0.0001 mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range] 1000 to 99999999
This parameter sets the arc radius for the upper limit imposed on the
feedrate set in parameter 1730.
1730 Upper limit imposed on feedrate for arc radius R
[Data type] Word
Increment system
Unit of data
Valid data range
Increment system
Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 8 to 15000 8 to 12000
Inch machine 0.1 inch/min 8 to 6000 8 to 4800
This parameter sets the upper limit imposed on the feed rate for the arc
radius set in parameter 1731.
N1
a
b
N2
r
N3
Specified
feedrate
ab
N1
N2 N3
Time
(Example)
1732 Lower limit RVmin for feedrate clamping by arc radius
[Data type] Word
Increment system
Unit of data
Valid data range
Increment system
Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 0 to 15000 0 to 12000
Inch machine 0.1 inch/min 0 to 6000 0 to 4800
When the function for clamping the feedrate by arc radius is used, the
upper limit imposed on the feedrate falls with the arc radius. If the upper
limit imposed on the feedrate is less than the lower limit imposed on the
feedrate clamping RVmin, the upper limit imposed on the feedrate is set as
RVmin.
D Parameters related to
feedrate clamping by arc
radius
[Unit of data]
[Unit of data]
[Valid data range]
[Unit of data]
[Valid data range]
