0i/0i Mate - Model C Connection manual (Function) Page 785

Connection manual (Function)
B–64113EN–1/01
11. PROGRAM COMMAND
767
[Classification] Input signal
[Function] Executes chamfering in a threading cycle. Specify the chamfering
distance in parameter No. 5130.
[Operation] When the signal is set to 1, chamfering is not executed in the threading
cycle.
When the signal is set to 0, chamfering is executed in the threading cycle.
γ
Approx.
45_
Approx.
45_
γ

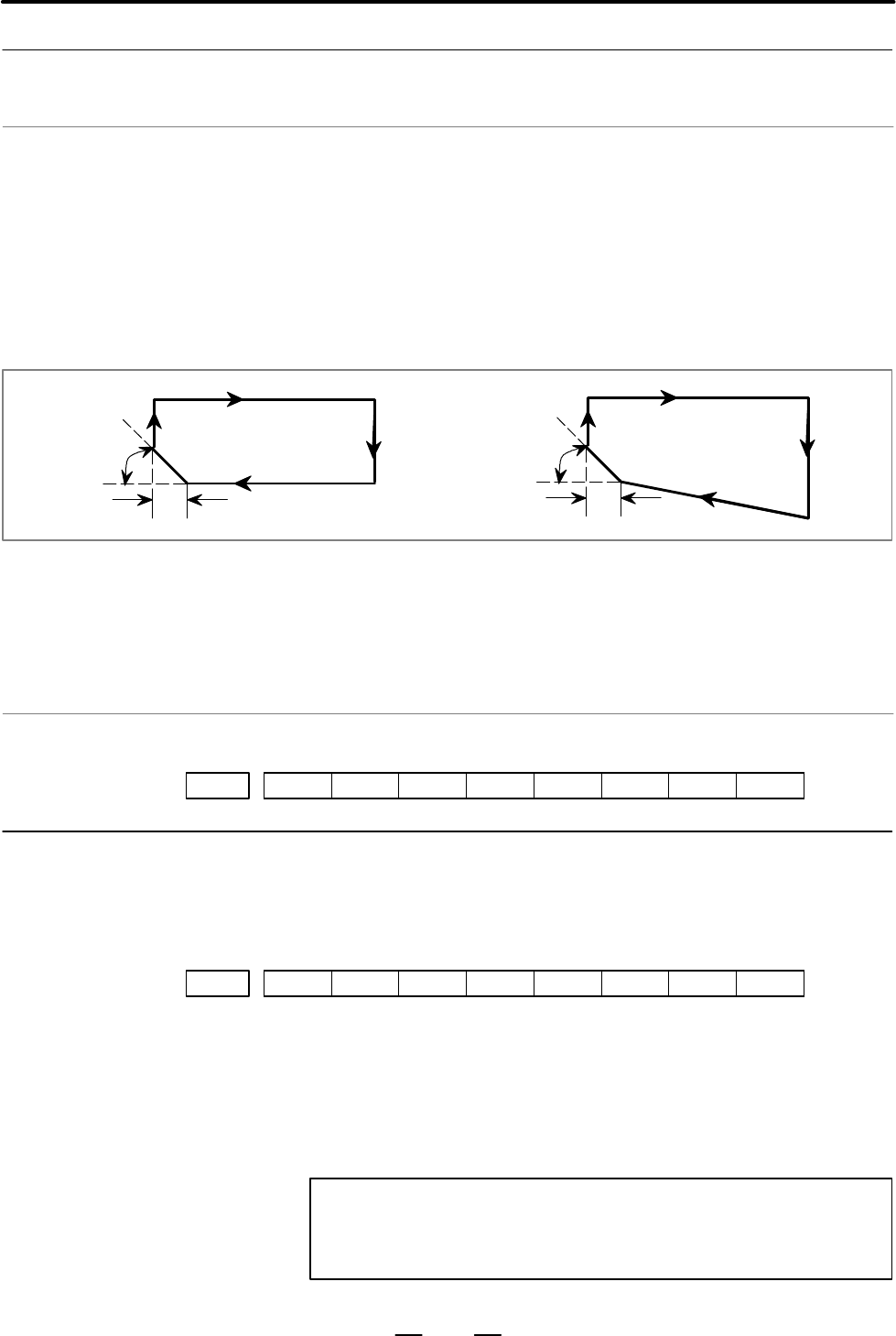

Fig. 11.8 (a) Straight thread cutting cycle Fig. 11.8 (b)Taper thread cutting cycle
Set the chamfering distance g to the parameter No. 5130. The chamfering
distance can be specified in G76. The chamfering angle is made smaller
than 45_ by the remaining pulses in the automatic acceleration/
deceleration circuit and servo system.
#7 #6 #5 #4 #3 #2 #1 #0
CDZG053
#7 #6 #5 #4 #3 #2 #1 #0
5102 QSR MRC
[Data type] Bit
MRC When a target figure other than a monotonically increasing or
monotonically decreasing figure is specified in a multiple repetitive
turning canned cycle (G71, G72):
0 : No alarm occurs.
1 : P/S alarm No. 064 is occurs.
NOTE
This parameter is valid for multiple repetitive turning canned
cycle type I.
Signal
Chamfering signal
CDZ<G053#7>
Signal address
Parameter
D Various setting for
multiple repetitive
canned cycle
