0i/0i Mate - Model C Connection manual (Function) Page 608

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

9. SPINDLE SPEED FUNCTION

590

The following conditions can make the attempt to setup the Cs axis

coordinates fail.

– The Cs axis origin setup state signal CSPENA is ’0’.

– The Cs axis is under synchronization control.

– The machine is brought to an emergency stop during coordinate setup.

– The Cs axis motor is de–energized during coordinate setup (such as

servo alarm or servo off).

– Bidirectional pitch error compensation is in effect for the Cs axis.

P/S alarm 5346 can be cleared only after the reference position of the Cs

axis has been set up.

If P/S alarm 5346 has been issued, perform a manual reference position

return for the Cs axis. Once the reference position has been setup, a reset

clears P/S alarm 5346.

In addition, once the machine has exited the Cs contour control mode, a

reset clears P/S alarm 5346.

When Cs axis coordinate setup is normally completed:

Codes <F010 to F013>

for entering the Cs contour mode

M code

Coordinate increment

MF<F007#0>

CSFI1<G274#4>

CON<G027#7>

FSCSL<F044#1>

ZRFx<F120#0 to #3>

CSFO1<F274#4>

FIN<G004#3>

CSPENA<F048#4>

The Cs axis coordinate setup function is valid only during Cs contour mode.

If the Cs axis coordinate setup request signal CSFI1 <G274#4> is set to

’1’ during any other mode, it is ignored.

Clearing P/S alarm 5346

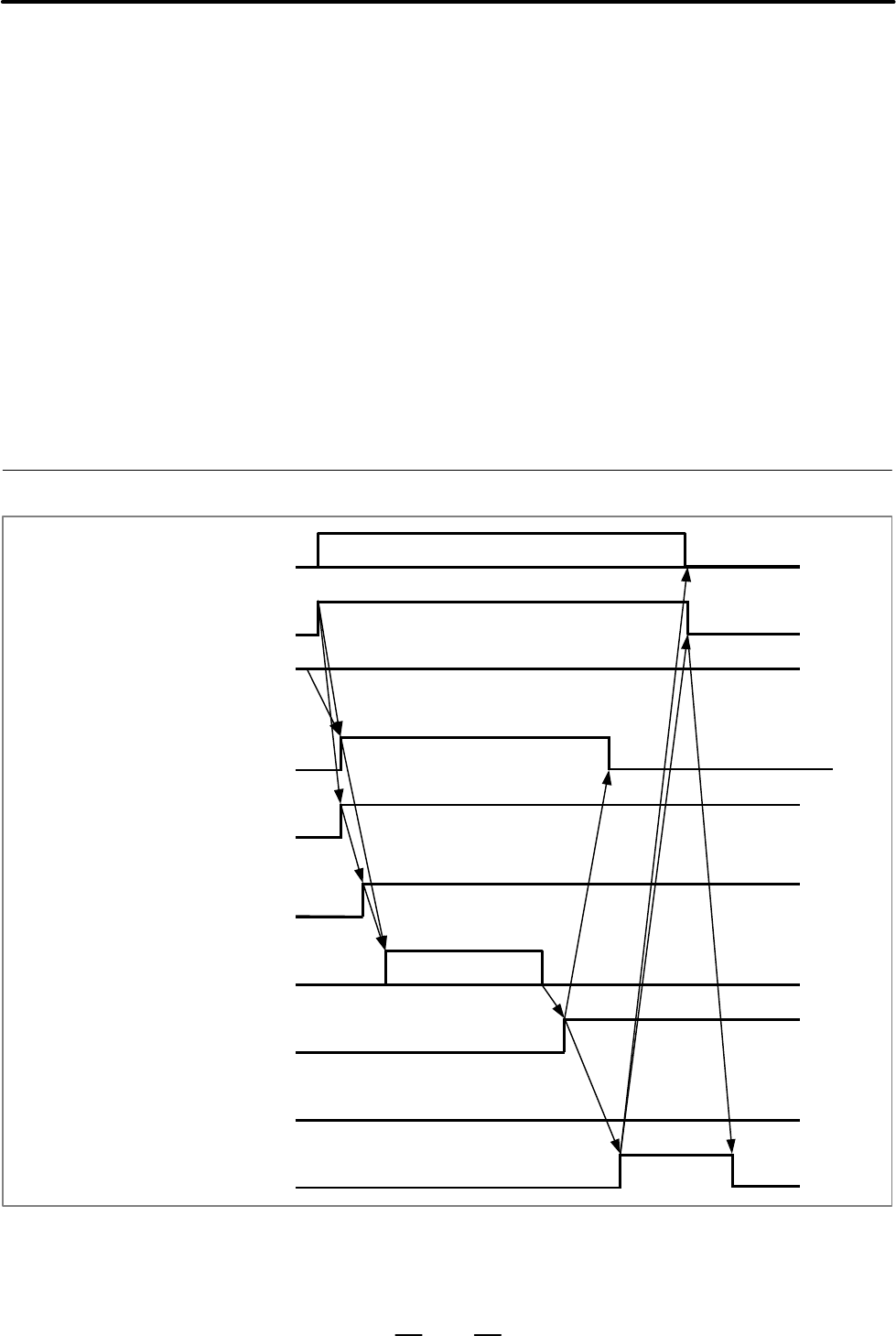

Sequence (timing chart)
