B–64113EN–1/01

13. INPUT/OUTPUT OF DATA

943

[Classification] Output signal

[Function] This signal reports that hard copy operation is in progress.

[Output condition] This signal is set to 1 when:

S The hard copy execution state has been entered by setting G067#7

(HDCPY) to 1, by holding down the [SHIFT] key for 4.8 seconds, and

so forth.

The signal is set to 0 when:

S The hard copy execution state is released because hard copy operation

is completed or canceled.

[Classification] Output signal

[Function] This signal reports that a request to stop hard copy operation is made.

[Output condition] This signal is set to 1 when:

S G063#6 (HCABT) is set to 1, or a hard copy stop command is issued

by, for example, pressing the [CAN] key.

The signal is set to 0 when:

S The reset key is pressed.

S Another hard copy operation starts.

Time charts of the input and output signals are shown below. Fig. 13.6

(a) is a time chart of normal termination of hard copy operation, and Fig.

13.6 (b) is a time chart of forced termination of hard copy operation.

G067#7

(HCREQ)

F061#3

(HCEXE)

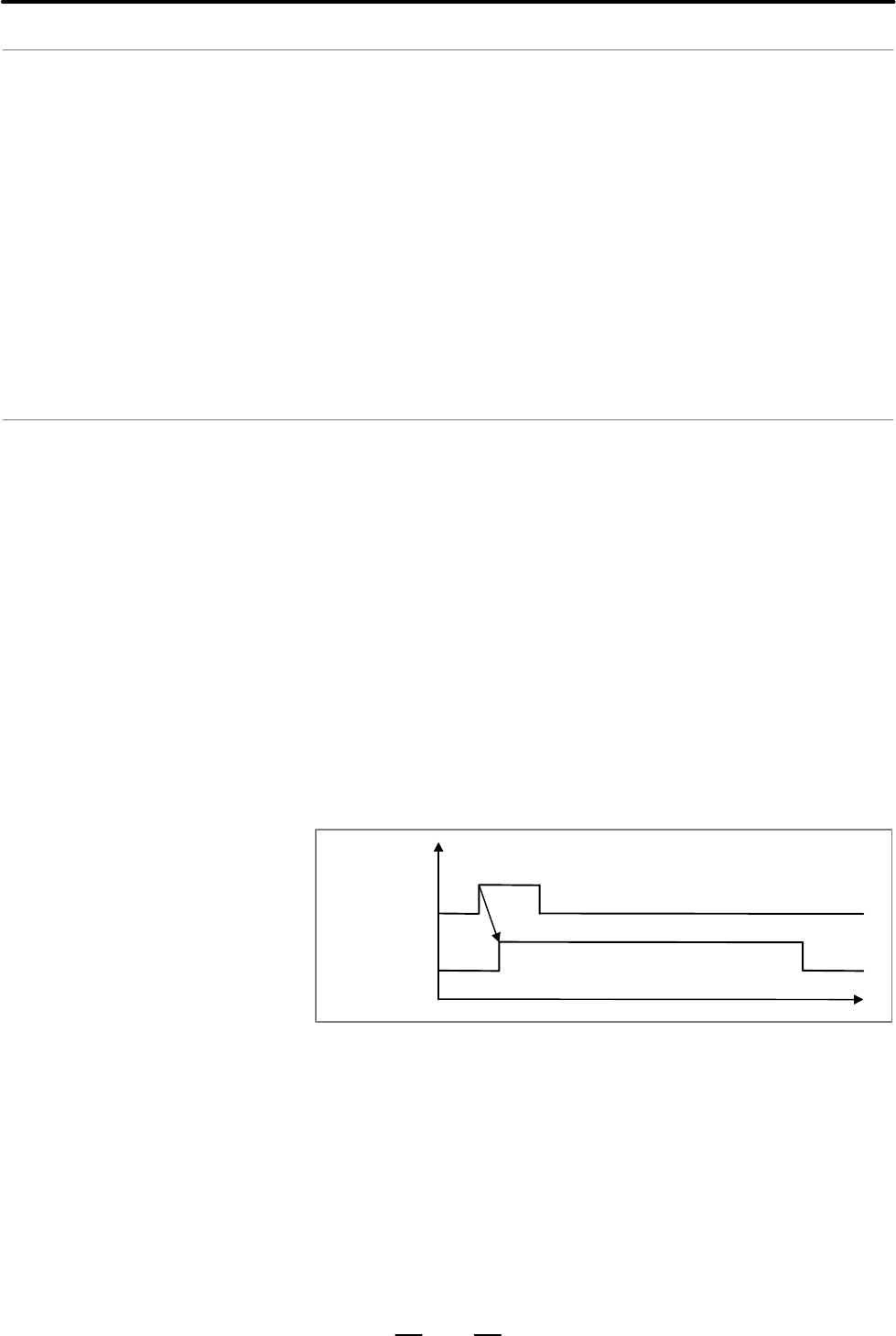

Fig. 13.6 (a) Time chart when screen hard copy terminates normally

Hard copy in–progress

signal

HCEXE <F061#3>

Hard copy stop request

acceptance flag

HCAB2 <F061#2>
