10. TOOL FUNCTIONS
717
B
Start point
End point
Center

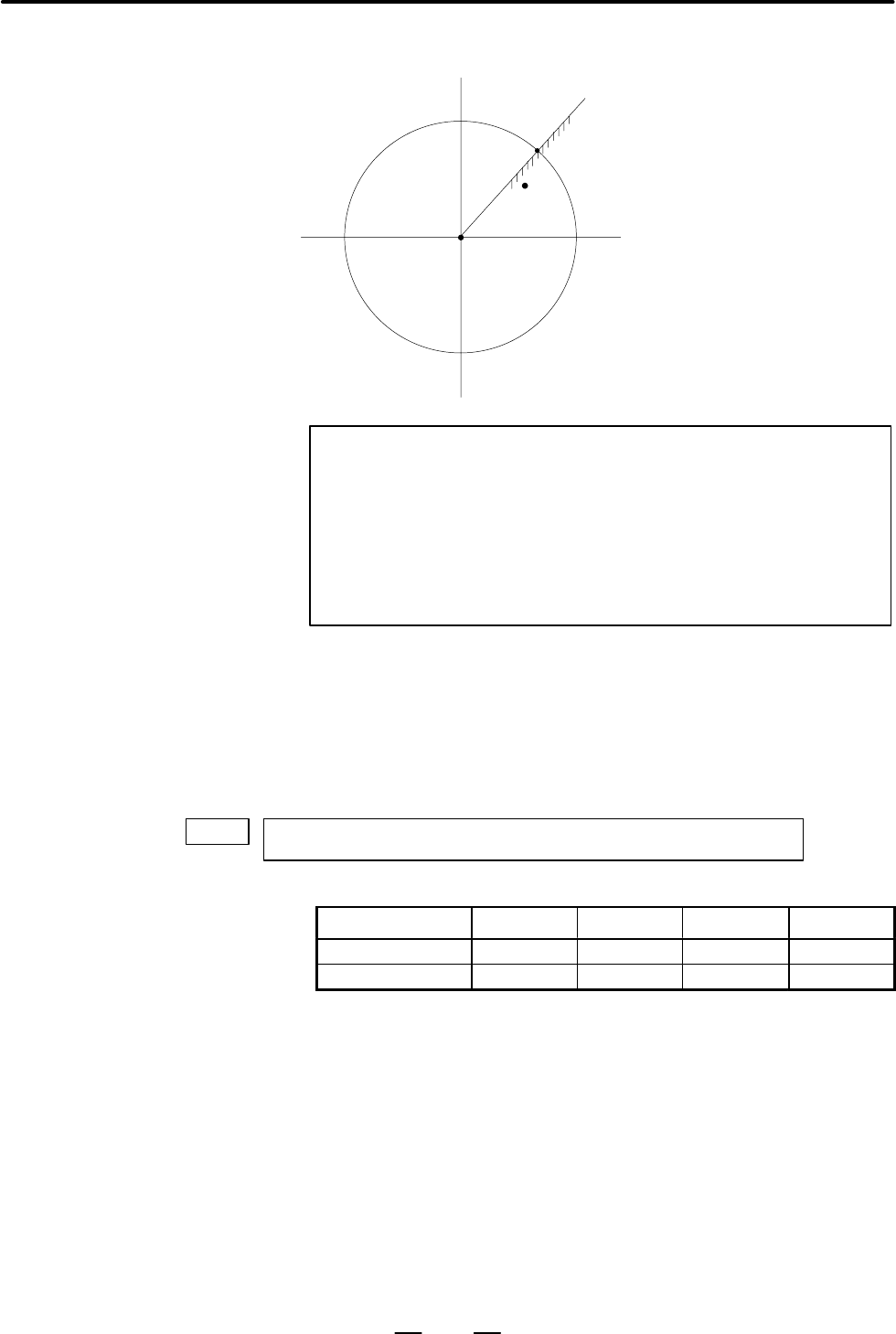

If the end point is in the A region separated
by the line L drawn between the start point
and the center, the movement is made along
the shortcut. If the end point is in the B re-
gion, almost a single turn is made.
A
[FS15 format]
NOTE
The setting of this parameter determines the travel distance
determination method for circular interpolation not during
cutter compensation C (M series) or tool–nose radius
compensation (T series) as well. Accordingly, if this
parameter is set, the setting of bit 3 (CQD) of parameter No.
3450 is invalid.
GCS If G49 (G code for canceling tool length compensation) and G40 (G code
for canceling cutter compensation) are specified in a single block, the tool
length compensation is cancelled:
0 : In the next block.
1 : In the specified block.
5010 Limit value that ignores the vector when a tool moves on the outside of a corner
during cutter compensation C
[Data type] Word
Increment system IS–A IS–B IS–C Unit
Metric input 0.01 0.001 0.0001 mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range] 0 to 16383
This parameter sets the limit value that ignores a slight movement
occurring when a tool moves on the outside of the corner during cutter
compensation C (M series).
[Unit of data]
