18. TROUBLE DIAGNOSIS
B–64113EN–1/01
1104
Servo monitor information is switched by pressing soft key [NEW]/
[OLD]/[CURRNT].
Soft key [NEW] and [OLD] is displayed alternately.
[NEW]: Data when the alarm occurs
[OLD]: Data just before the alarm occurs
[CURRNT]:Current data
[MON_SP]: Spindle monitor information is displayed.
Spindle monitor information is switched by pressing soft key [NEW]/
[OLD]/[CURRNT].
Soft key [NEW] and [OLD] is displayed alternately.
[NEW]: Data when the alarm occurs
[OLD]: Data just before the alarm occurs
[CURRNT]:Current data
[MON_SV]:Servo monitor information is displayed.
Displayed axis is switched by pressing cursor key [←]/[→].
Soft key [CLEAR] appears by pressing soft key [(OPER)]. By pressing
soft keys [CLEAR] and [EXEC], ”Data when the alarm occurs” and ”Data
just before the alarm occurs” are cleared. And status display ”LATCHED”
is altered to ”SAMPLING”.
When servo/spindle alarm occurs in ”SAMPLING” status, ”Data when
the alarm occurs” and ”Data just before the alarm occurs” are memorized,
and status display ”SAMPLING” is altered to ”LATCHED”.
When clear operation is done in either servo monitor screen or spindle
monitor screen, both of servo and spindle information are cleared. And
Display data of Trouble Diagnosis Graphic screen is also cleared.

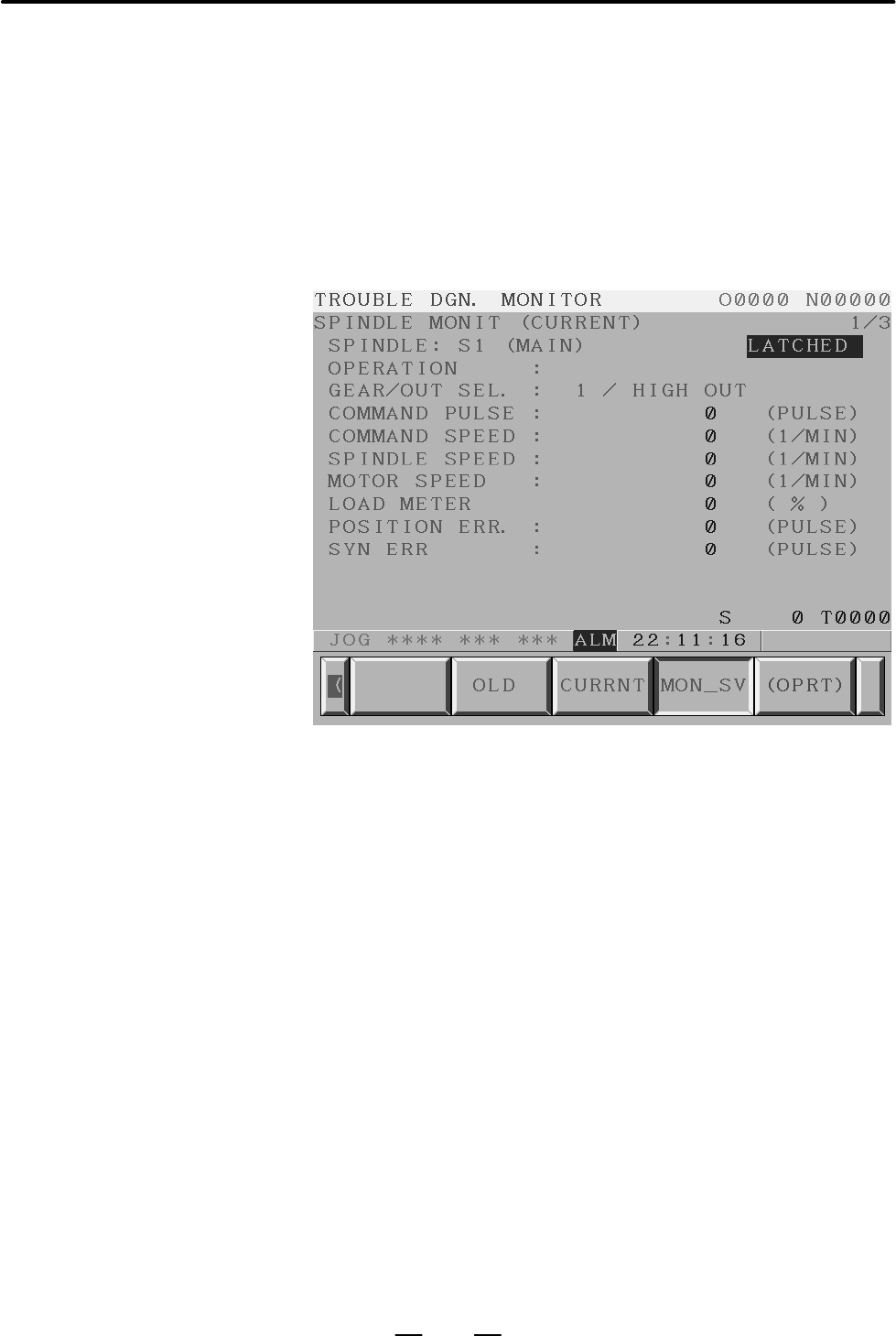

Display of Spindle
monitor information
Change of displayed
axis
Clear of memorized data
Previous page
Next page
