0i/0i Mate - Model C Connection manual (Function) Page 393

Connection manual (Function)
B–64113EN–1/01
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
375
After specifying G95 (G99 for T series) (in the feed per revolution mode),
the amount of feed of the tool per spindle revolution is to be directly
specified by setting a number after F. G95 (G99 for T series) is a modal
code. Once a G95 is specified, it is valid until G94 (G98 for T series) (feed
per minute) is specified.
An override of between 0 and 254% (in steps of 1%) can be applied to feed
per rotation, using the feedrate override signals (*FV0 to *FV7). (See
Subsection 7.1.6.2.)
Feed amount per spindle revolution
(mm/rev or inch/rev)
F
[T series]

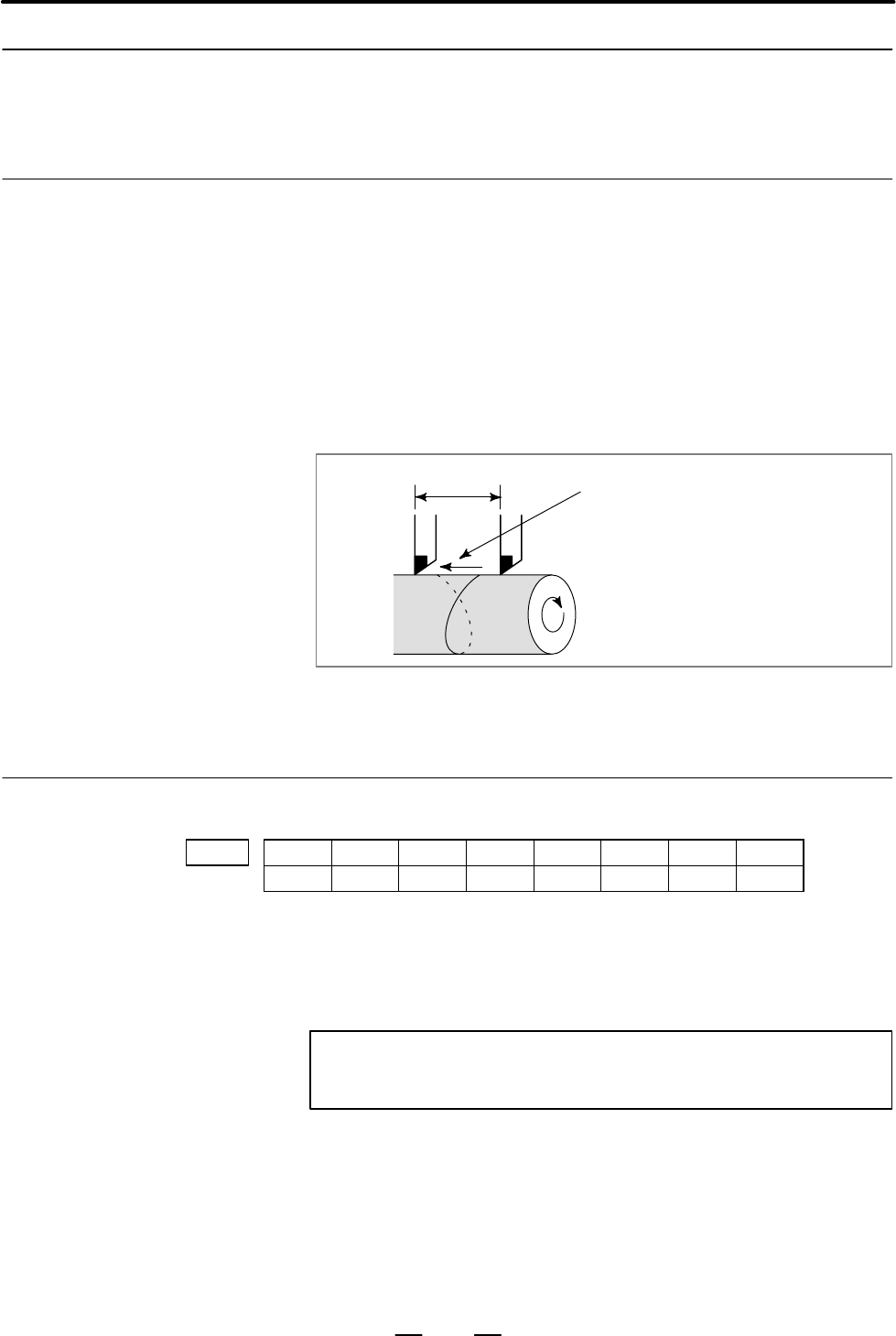

Fig. 7.1.4 Feed per revolution
Jog feedrate can be specified by feed per revolution.
#7
1402
#6 #5 #4
JRV
#3 #2 #1 #0
NPC
NPC
[Data type] Bit
JRV Jog feed
0 : Jog feed is performed at feed per minute.
1 : Jog feed is performed at feed per rotation.
NOTE
Specify a feedrate in parameter No. 1423.
NPC Feed per revolution command
0 : The feed per revolution command is ignored when the position coder
is not installed.
1 : The feed per revolution command is accepted even when the position
coder is not installed. (The CNC automatically converts the feed per
revolution command to a feed–per–minute operation.)
7.1.4
Feed Per Revolution/
Manual Feed Per
Revolution
General
D Feed per revolution
D Manual feed per
revolution
Parameter
