0i/0i Mate - Model C Connection manual (Function) Page 460

Connection manual (Function)

Page of 1224

/ 1224

B–64113EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

442

BEL In AI advanced preview control or AI contour control mode:

0 : Linear acceleration/deceleration before look–ahead interpolation is

used.

1 : Bell–shaped acceleration/deceleration before look–ahead interpolation

is used.

NOTE

To select look–ahead bell–shaped acceleration/

deceleration before interpolation, the option for look–ahead

bell–shaped acceleration/deceleration before interpolation

is required.

1621 Time constant for axis–by–axis rapid traverse bell–shaped acceleration/deceleration

[Data type] Word axis

[Unit of data] 1 ms

[Valid data range] 0 to 512

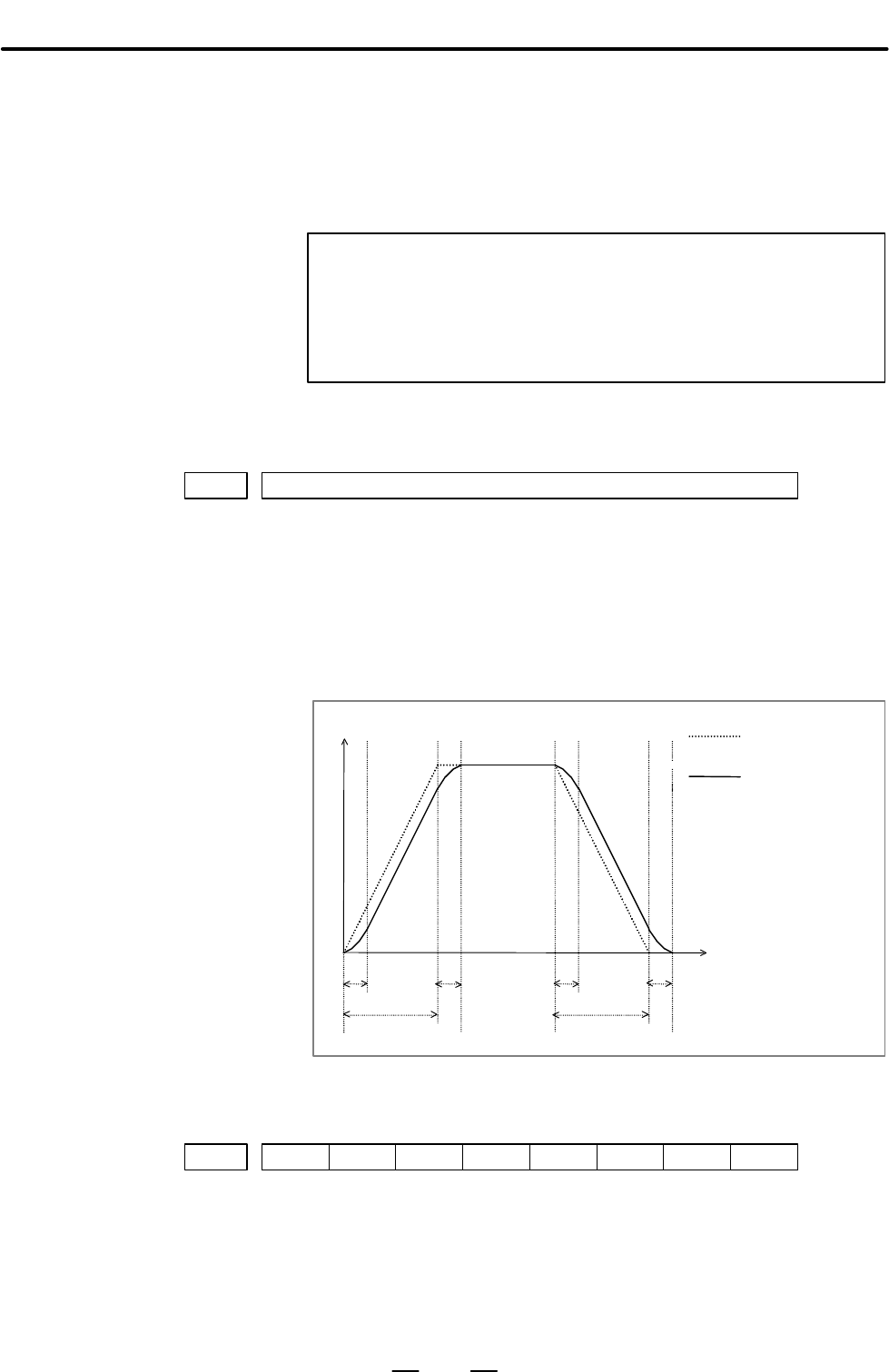

Set tb in the figure below for each axis. When 0 is set, linear

acceleration/deceleration is assumed.

tb tb tb tb

ta ta

Feedrate

Linear acceleration/

deceleration

Bell–shaped

acceleration/

deceleration

ta: Depends on linear

acceleration/

deceleration.

tb: Bell–shaped time

constant

Time

6901

#6 #5 #4 #3

PSF

#2 #1 #0

[Data type] Bit

PSF In AI contour control mode (M series), AI advanced preview control (M

series), or advanced preview control mode, position switches are:

0 : Not used.

1 : Used.
